BC-OM2-MM-LCLC-2

2 Meter | LC UPC to LC UPC | Duplex | OM2 Multimode

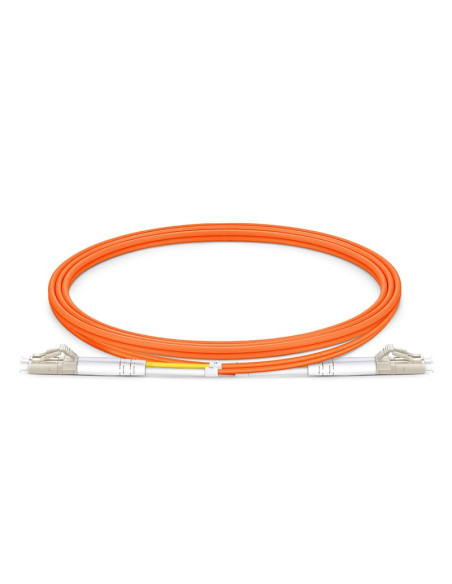

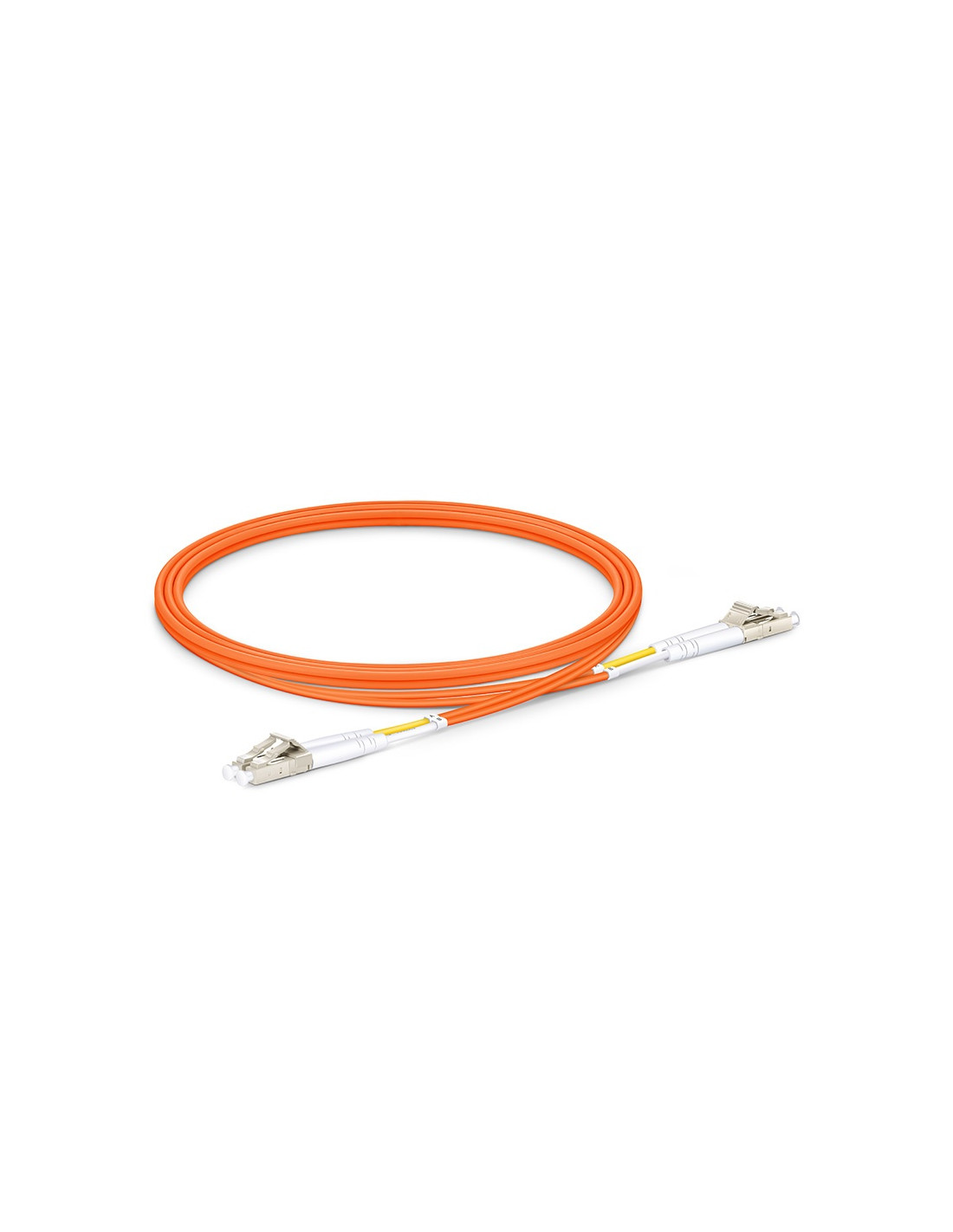

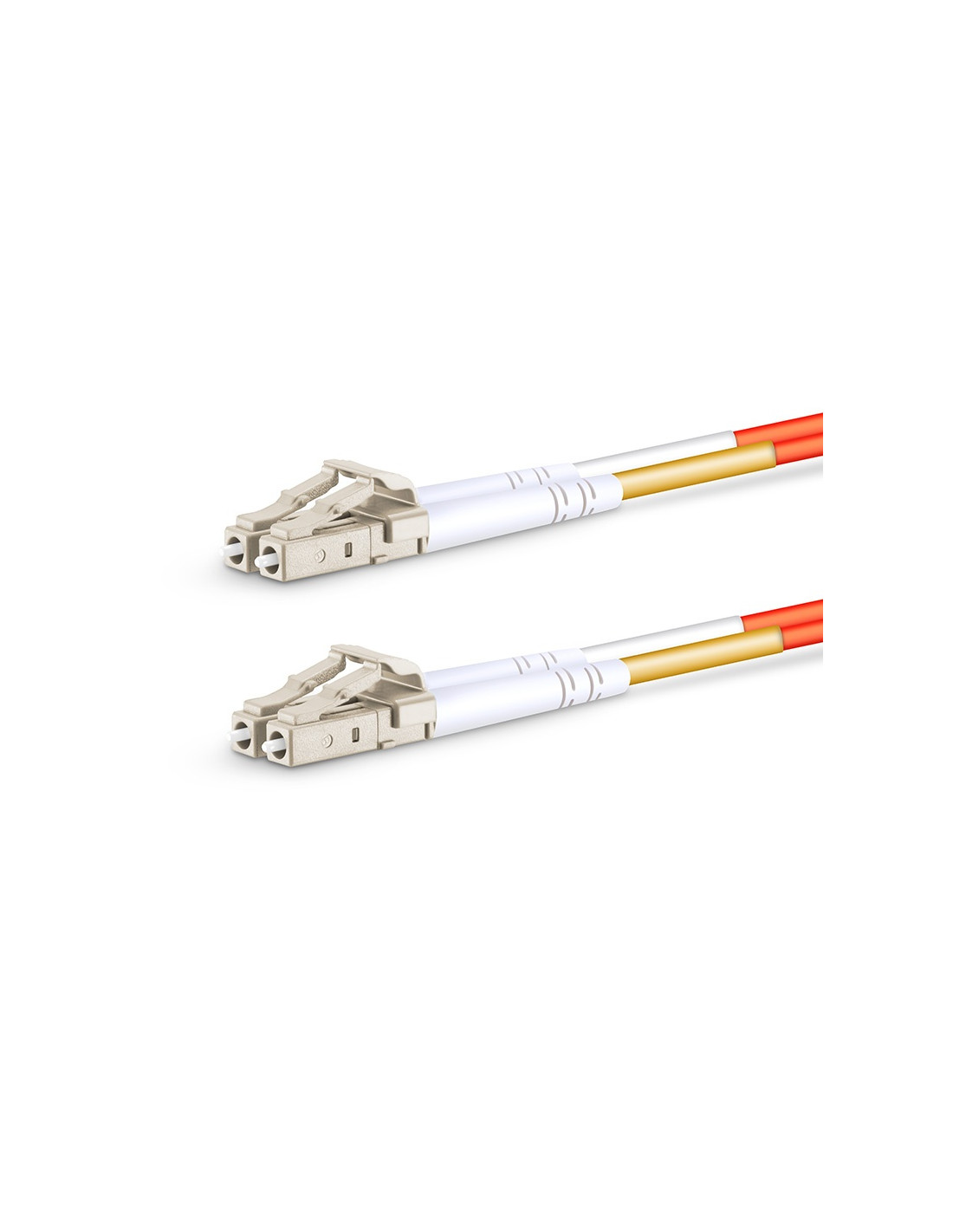

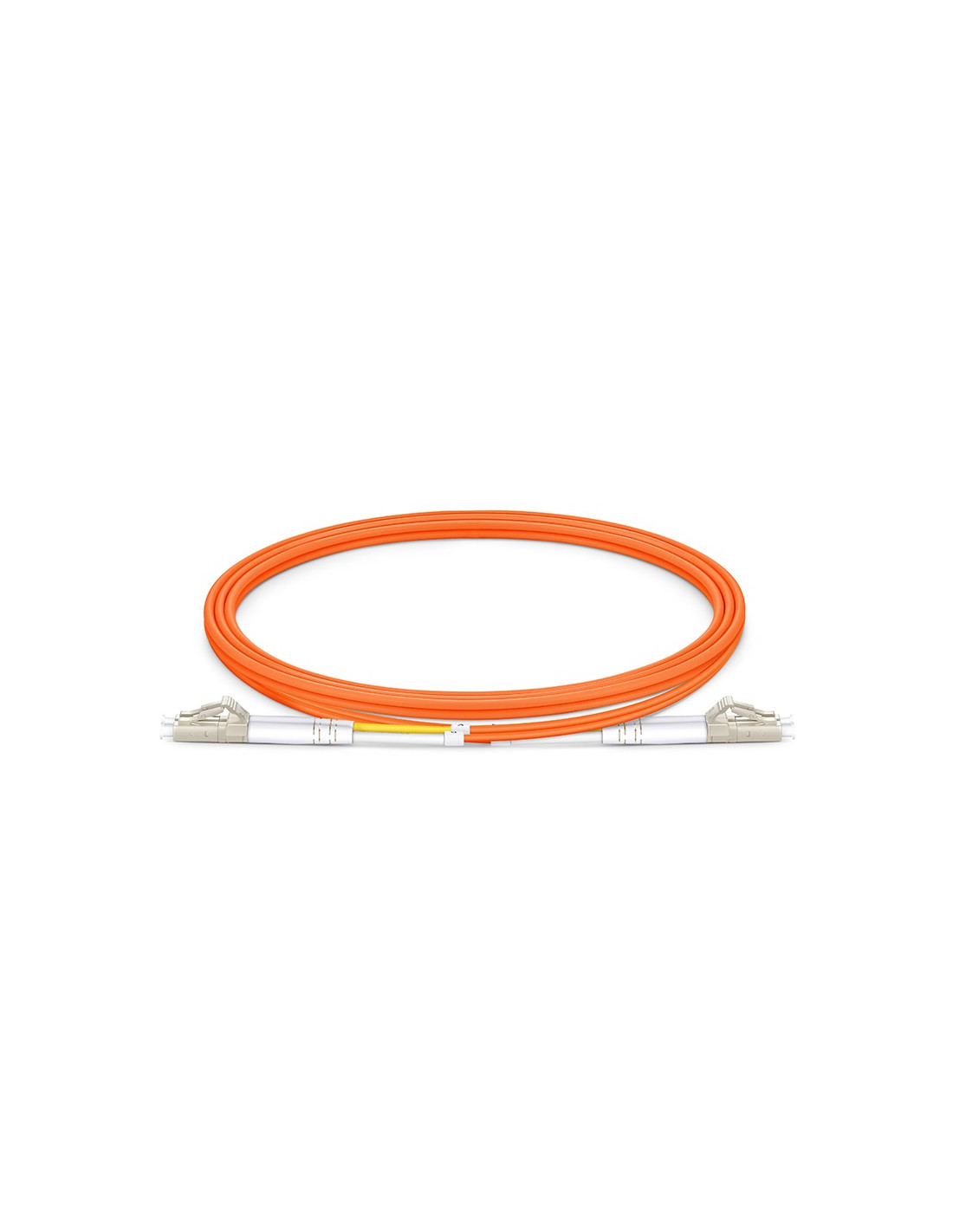

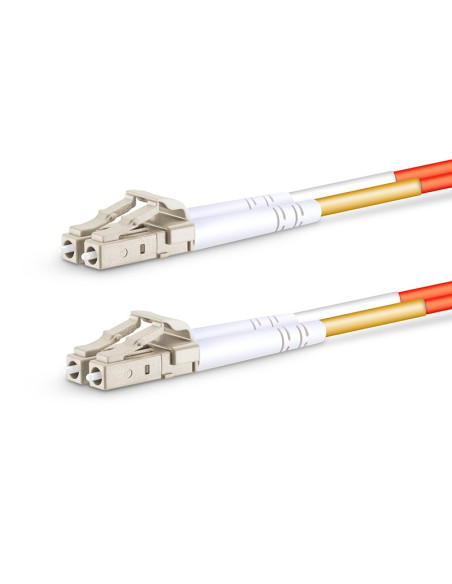

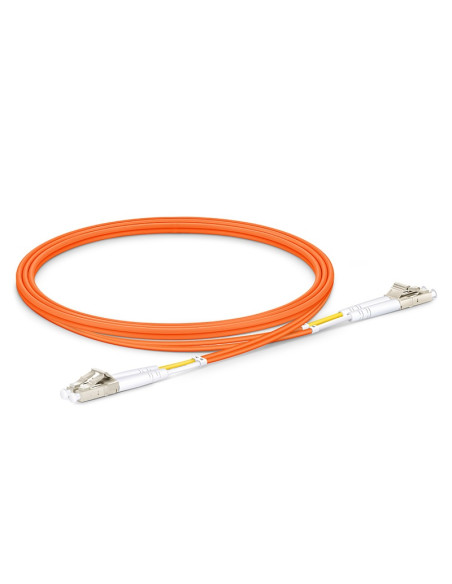

BC-OM2-MM-LCLC-2 is a 2-meter OM2 multimode fiber optic patch cable featuring LC UPC duplex connectors on both ends. Designed for high-speed, short-distance data transmission, this cable is ideal for use in structured cabling systems that require low signal loss and high reliability. It uses bend-insensitive 50/125μm OM2 fiber, reducing signal attenuation when the cable is bent or routed in tight spaces. The tight-buffered 2.0mm jacket is riser-rated (OFNR), providing flame resistance for vertical installations in commercial buildings.

Application:

  • Cross-connect patching
  • Backbone application in building
  • Termination enclosure for equipment patching
  • Equipment to equipment patching

Features:

  • Conforms to ISO/ IEC 11801
  • Manufactured with stringent quality control
  • UPC (Ultra Physical Contact) connector
  • Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAD
  • All ends are polished and individually inspected for correct polishing
  • Supports high-speed multi-channel data, voice & video applications



BC-OM2-MM-LCLC-2 OM2 LC to LC Duplex Multimode Fiber Cable 2 Meter

Product Specifications:

Connector A LC UPC Duplex
Connector B LC UPC Duplex
Fiber Count 2 Fibers
Fiber Grade Bend Insensitive
Fiber Mode OM2 50/125μm
Wavelength 850/1300nm
Polarity A (Tx) to B (Rx)
Cable Type Tight-Buffered
Cable Outside Diameter (OD) 2.0mm
Flame Rating Riser (OFNR)
Min. Bend Radius (Optical Fiber) 7.5mm
Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Connector Durability 1000 times
Tensile Strength (Long/Short Term) 90/150N
Insertion Loss ≤0.3dB
Return Loss ≥30dB
Attenuation at 850nm 3.5dB/km
Attenuation at 1300nm 1.5dB/km
Operating Temperature -10 to 70°C (14 to 158℉)
Storage Temperature -20 to 70°C (-4 to 158℉)
