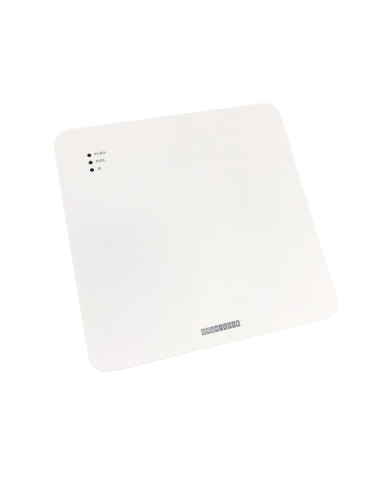

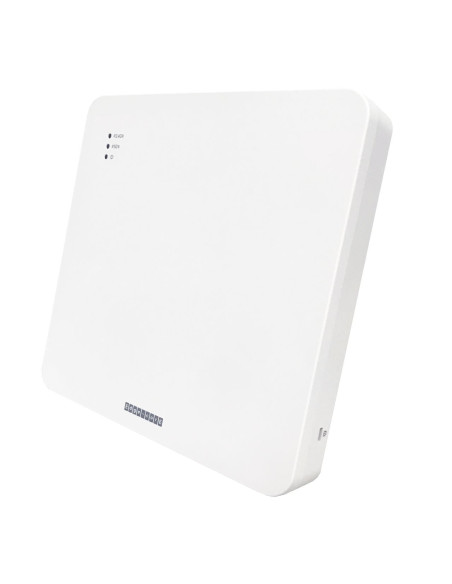

EDGECORE EAP101 Indoor Wi-Fi 6 Access Point 2x2:2 MU-MIMO 1.7Gbps BLE

EAP101 - EDGECORE Indoor Wi-Fi 6 Access Point 2x2:2 MU-MIMO 1.7Gbps BLE

Product Features:

Enterprise-grade AP Functionality

• Up to 16 ESSIDs per Radio
• Configurable Connectivity Thresholds
• Dynamic Channel Selection
• Seamless/Fast Roaming
• Band Steering
• Airtime Fairness
• Multicast to Unicast Conversion
• 802.11e/WMM
• 802.11u/Hotspot 2.0
• 802.1p/DSCP

Advanced Wi-Fi Security

• WPA2-Enterprise with 802.1X Authentication
• 802.1Q VLAN Tagging
• Layer 2 Firewall
• Station Isolation
• MAC ACL
• DHCP Snooping
• WPA/WPA2 Security with AES Encryption
• Detailed User Connectivity Statistics
• Configurable Trusted Wireless Interfaces
• Secure AP Mounting Mechanisms

• RADIO
  • 802.11ax
  • Concurrent Dual-band 2.4 / 5 GHz
  • Radio Chains: 2 x 2 : 2
  • RF Output Power*1: 2.4 GHz: Up to 29 dBm*2 ; 5 GHz: Up to 29 dBm*2
    (*1: RF output power aggregates across MIMO chains and doesn’t contain antenna gain; *2: Maximum power is limited by local regulatory requirements)
  • Frequency Band: 2.400 – 2.482 GHz, 5.170 – 5.835 GHz
  • Channelization: 2.4 GHz: 20 / 40 MHz ; 5 GHz: 20 / 40 / 80Mhz
  • Up to 16 per radio (32 total)
  • Certifications: FCC, CE, NCC, BSMI, VCCI, TELEC, JATE, IC
• QOS
  • Wireless QoS (802.11e / WMM)
  • Multicast to Unicast Conversion
• WIRELESS
  • Orthogonal Frequency Division Multiple Access (OFDMA)
  • Target Wake Time (TWT)
  • Basic Service Set (BSS) Coloring
  • Client Isolation
 
• MAINTENANCE
  • Web User Interface (HTTP/HTTPS)
  • Network Time Protocol (NTP)
  • Standalone
  • Management by ecCLOUD
• OTHERS
  • iBeacon
• PHYSICAL DIMENSIONS
  • 19.5 cm x 19.5 cm x 3.9 cm (W x D x H)
  • Weight: 0.65 kg
  • Wall/Ceiling/T-bar mount (Mounting kit included)

• INTERFACES
  • Uplink: 1 x 10/100/1000/2500Base-T Ethernet, Auto MDIX, RJ-45 with 802.3at PoE
  • LAN: 2 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45
  • Console: 1 x RJ-45 Port
  • USB: 1 x USB 2.0 Port
• ANTENNA
  • Type: 3 x Built-in antenna (2 x 2.4 GHz & 5 GHz, 1 x Bluetooth Low Energy)
  • Gain: 4.8 dBi (2.4 GHz), 6 dBi (5 GHz), 4.6 dBi (BLE)
• ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0°C (32°F) to 50°C (122°F)
  • Operating Humidity: 5% to 95% non-condensing
• PERFORMANCE
  • Up to 574 Mbps (2.4 GHz)
  • Up to 1200 Mbps (5 GHz)
• POWER
  • DC Input: 12V / 2.0A (Power adapter included)
  • PoE: 802.3at compliant (PoE injector not included)
• NETWORK
  • Spanning Tree Protocol (STP)
  • Dynamic Host Configuration Protocol (DHCP)
  • 802.1q
  • IPv4 & IPv6 Compatible
  • Access Control List (ACL)
  • Network Address Translation (NAT)
  • Port Forwarding
• SECURITY
  • 802.11i
  • WPA-Personal (AES)
  • WPA-Enterprise (AES)
  • WPA2-Personal (AES)
  • WPA2-Enterprise (AES)
  • WPA3-Personal (AES)
  • WPA3-Enterprise (AES)
  • MAC Address Authentication
  • Firewall
