E810-DTU
In Stock
$64.90
Tax included

E810-DTU

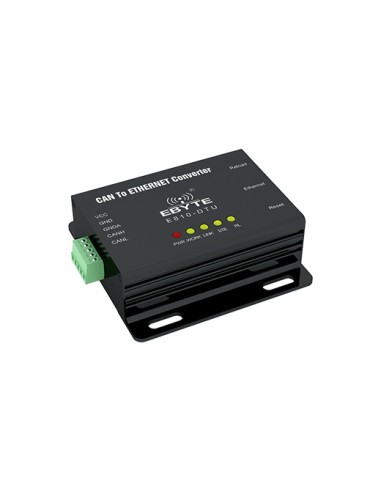

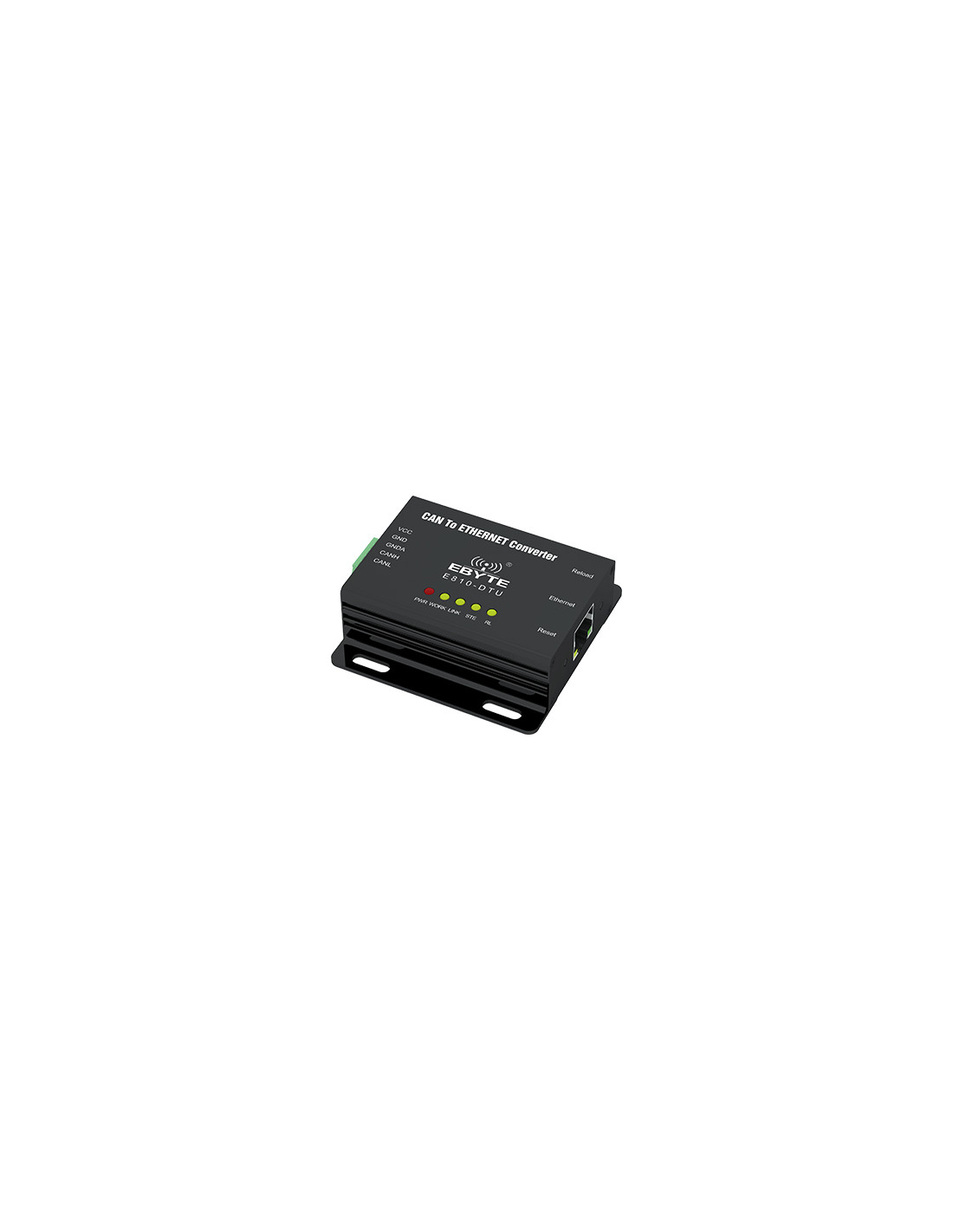

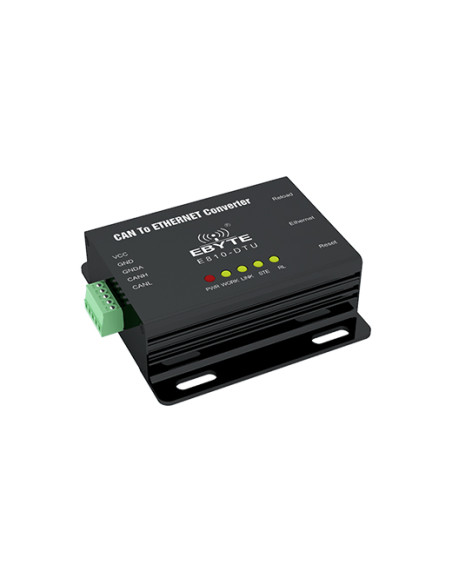

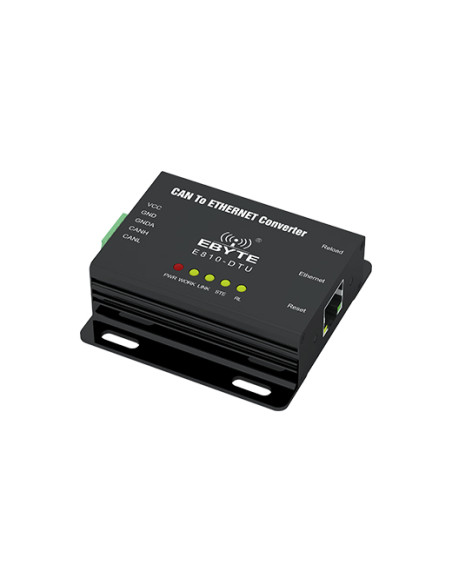

The E810-DTU (CAN-ETH) is a high-performance CAN-Bus DTU that integrates one CAN interface and one Ethernet interface.The shell adopts three-proof coating, which is Anti-Fungal, Anti-Humidity, and Anti-Salt Spray. With the high-performance E810-DTU (CAN-ETH), users can easily interconnect the CAN-bus network and the Ethernet network.

Key Features:

  • Interface Signal: CAN
  • Interface mode: Ethernet
  • CAN-BUS to Ethernet

Related Products & Accessories



E810-DTU Industrial CAN-Bus to Ethernet Converter

Model E810-DTU (CAN-ETH)
Interface Signal CAN
Interface Mode Ethernet
Protocols Supported Modbus RTU/TCP, TCP/IP, UDP, ARP, ICMP, IPv4
Working Modes TCP Server, TCP Client, UDP Server, UDP Client
Network Rate 100 Mbps Full-Duplex Adaptive
Product Dimensions 66 × 66 × 21 mm
Product Weight 74g ±1g
Housing Industrial-grade with anti-fungal, anti-humidity, and anti-salt spray coating
Power Supply 5V DC
Indicators Power, Work, Link, TX, RX, Reset
Mounting DIN Rail Mountable
Operating Temperature -40°C to 85°C
Humidity 5% to 95% (non-condensing)
Additional Features Transparent data transmission, Modbus gateway functionality, Easy integration into CAN and Ethernet networks
