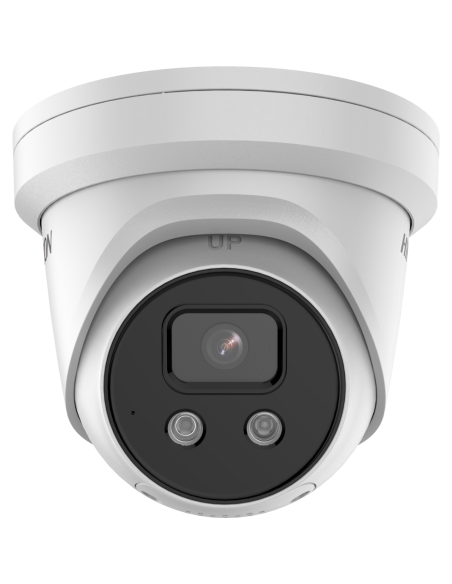

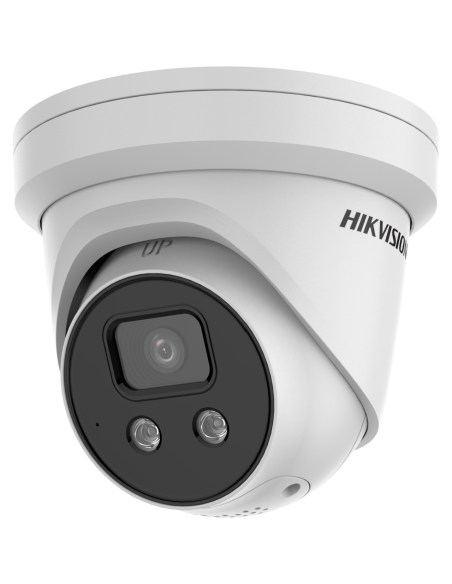

Hikvision DS-2CD2386G2-ISU/SL 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera 8MP 2.8mm 120dB WDR

DS-2CD2386G2-ISU/SL - Hikvision 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera 8MP 2.8mm 120dB WDR

Specification:

• Camera
• Image Sensor 1/1.8" Progressive Scan CMOS
• Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed 1/3 s to 1/100,000 s
• Slow Shutter Yes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Max. Resolution 3840 × 2160

• Lens
• Lens Type Fixed focal lens 2.8 mm

• Iris Type Fixed
• Focal Length & FOV

  2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°

  Aperture F1.6
• Lens Mount M12

• DORI
• DORI

  2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

• Illuminator
• Supplement Light Type IR
• IR Range Up to 30 m
• IR Wavelength 850 nm
• Smart Supplement Light Yes
• Visual Alarm Yes
• Supplement Light Range Up to 30 m

• Video
• Max. Resolution 3840 × 2160
• Main Stream

  50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 24 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate 32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• H.264+ Main stream supports
• H.265+ Main stream supports
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream
• Target Cropping Yes

• Audio
• Audio Type Mono sound
• Environment Noise Filtering Yes
• Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Network
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• User/Host Up to 32 users. 3 user levels: administrator, operator and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• SNR≥ 52 dB
• Target Cropping Yes
• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Wide Dynamic Range (WDR)120 dB

• Interface
• Alarm1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
• Audio

  1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;

  1 built-in speaker, 1 built-in microphone

• Built-In Microphone Yes
• Built-In Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
• On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset Yes
• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection

  Supports human and vehicle targets classification

  Scene change detection

• Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light

• Deep Learning Function
• Face Capture Yes
• Perimeter Protection

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection

  Supports human and vehicle targets classification

• General
• Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software Reset Yes
• Firmware Version V5.5.112
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ± 25%, reverse polarity protection

  PoE: 802.3af, Class 3

• Power Consumption And Current

  12 VDC, 0.75 A, max. 9 W

  PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W

• Power Interface Ø5.5 mm coaxial power plug
• Camera Material Metal except for trim ring
• Camera Dimension Ø138.3 mm× 124.5 mm (Ø5.4" × 4.9")
• Package Dimension 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")
• Camera Weight Approx. 840 g (1.9 lb.)
• With Package Weight Approx. 1160 g (2.6 lb.)
• Power

  12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W

• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Approval
• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety:  UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
• Environment:  CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013
