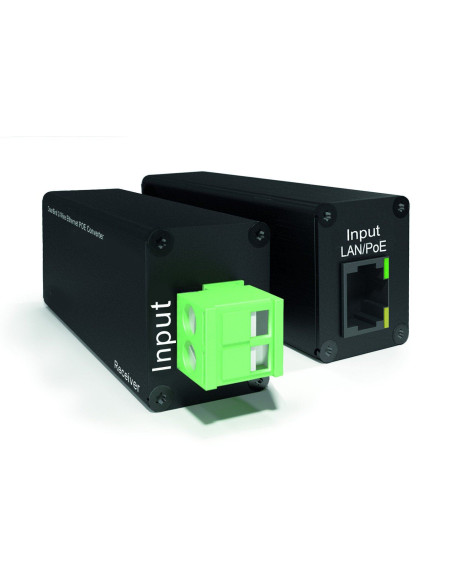

DoorBird 2-Wire Ethernet PoE Converter

DoorBird 2-Wire Ethernet PoE Converter

The DoorBird 2-Wire Ethernet PoE Converter is probably the world's smallest and most powerful converter. It allows you to transfer network data (Ethernet) and power (PoE) with a simple two-wire cable over long distances. Existing buildings with a simple two-wire bell wire can be equipped with network technology without having to retrofit any network cables.

THE FEATURES:

• Use of existing cabling
• A two-wire cable required for both data transmission and power supply (PoE)
• Compact design, robust metal housing
• Easy and fast installation

TECHNICAL CHARACTERISTICS:

• Dimensions: 33 x 25 x 88 mm (H X L X D)
• Power: PoE-Switch or PoE-Injector (IEEE 802.3 af/at, not included)
• Operating conditions: -25 to 55 °C
• Transmission speed: Up to 60 Bbit/s maximum
• Response time: ~0.01 ms
• Connection: 1x RJ45, 2x screw terminals
• PoE: 802.3 af/at Mode-A and PoE+, up to 30W.
• Data line pair: 1/2 (+), 3/6 (-)
• Transmission distance: 80 metres. Dual-wire cable without covering
• Certifications: CE, FCC, RoHS, IP50
• Weight: 140g
