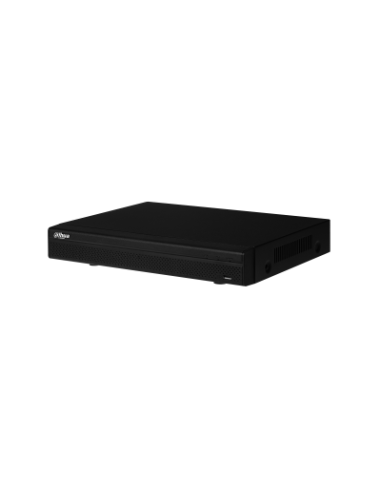

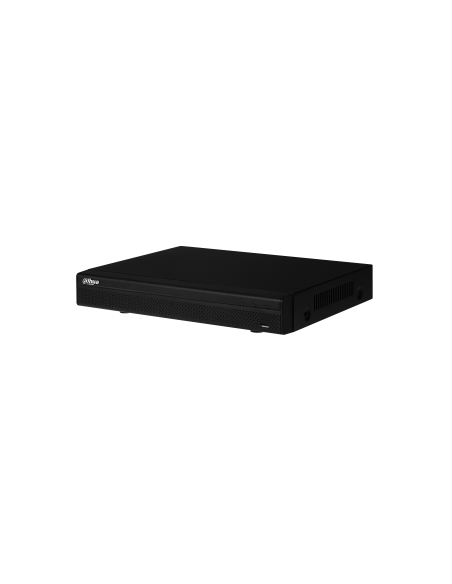

NVR4108H-8P Dahua 8-Channel Network Video Recorder
Dahua 8 Channel 8PoE Mini 1U Lite Network Video Recorder NVR4108H-8P
> H.264+/H.264 codec decoding
> Max 80Mbps Incoming Bandwidth
> Up to 5MP Resolution for Preview and Playback> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports
> Support ANR technology to enhance the storage reliability when the netw
Dahua 8 Channel 8PoE Mini 1U Lite Network Video Recorder NVR4108H-8P
> H.264+/H.264 codec decoding
> Max 80Mbps Incoming Bandwidth
> Up to 5MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports
> Support ANR technology to enhance the storage reliability when the network break down
SPECIFICATIONS:
System |
|
Main Processor |
Dual-core embedded processor |
Operating System |
Embedded LINUX |
Display |
|
Interface |
1 HDMI, 1 VGA |
Resolution |
1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
Multi-screen Display |
8CH: 1/4/8/9 |
16CH: 1/4/8/9/16 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Video Detection and Alarm |
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank |
Alarm input |
2 Channel, Low Level Effective, Green Terminal Interface |
Relay Output |
1 Channel, NO/NC Programmable, Green Terminal Interface |
Playback and Backup |
|
Playback |
8CH: 1/4/8 |
16CH: 1/4/8/16 |
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate tosecond) |
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
Backup Mode |
USB Device/Network |
Storage |
|
Internal HDD |
1 SATA III Port, Up to 6 TB capacity for each HDD |
HDD Mode |
Single |
eSATA |
N/A |
Auxiliary Interface |
|
USB |
2 USB Ports (2 USB2.0) |
RS232 |
N/A |
RS485 |
N/A |
Third-party Support |
|
Third-party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
Audio and Video |
|
IP Camera Input |
8 Channel |
Two-way Talk |
1 Channel Input, 1 Channel Output, RCA |
Recording |
|
Compression |
H.264+/H.264/MJPEG |
Resolution |
5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
Record Rate |
80Mbps |
Bit Rate |
16Kbps ~ 20Mbps Per Channel |
Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm), Stop |
Record Interval |
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
Network |
|
Interface |
1 RJ-45 Port (10/100Mbps) |
Ethernet Port |
1 Independent 100Mbps Ethernet Port |
PoE |
8 ports (IEEE802.3at/af) |
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
Max. User Access |
128 users |
Smart Phone |
iPhone, iPad, Android |
Interoperability |
ONVIF 2.4, CGI Conformant |
Electrical |
|
Power Supply |
DC48V/2A |
Power Consumption |
<10W (Without HDD) |
Environmental |
|
Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
