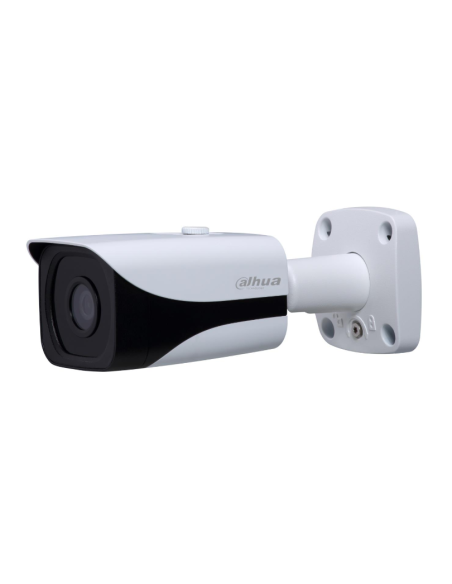

Dahua 4MP Bullet IP Camera

Image Sensor

1/3” 4Megapixel progressive scan CMOS

Effective Pixels

2688(H)x1520(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Min. Illumination

0. 01Lux/F2.0(Color), 0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

40m

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

BLC / HLC / WDR(120 dB)

White Balance

Auto/Sunny/Night/Outdoor/Customized

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

3.6mm (6mm optional)

Max Aperture

F2.0(F2.0)

Focus Control

Manual

Angle of View

H:84°(56°)

Lens Type

Fixed lens

Mount Type

Board-in Type

Video

Compression

H.264/H.264B/H.264H/ MJPEG

Resolution

4M(2688×1520)/4M (2560×1440)/3M (2304×1296)/1080P (1920×1080)/720P (1280×720)/D1 (704×576/704 ×480)/CIF (352×288/352×240)

Frame Rate

Main Stream

4M(1~20fps)/3M(1~25/30fps)(WDR OFF)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Third Stream

720P(1-20fps)

Bit Rate

H.264: 32K ~ 10Mbps

Corridor Mode

Support

Audio

Compression

N/A

Interface

N/A

Smart Function(Optional)

Smart detection

Tripwire

Intrusion

Abandoned/Missing

Scene Change

Audio detect

Face detect

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x

Compatibility

ONVIF ,PSIA,CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V, PoE (802.3af)

Power Consumption

< 5W

Working Environment

-30°C~+60°C, Less than 95% RH

Ingress Protection

IP67
