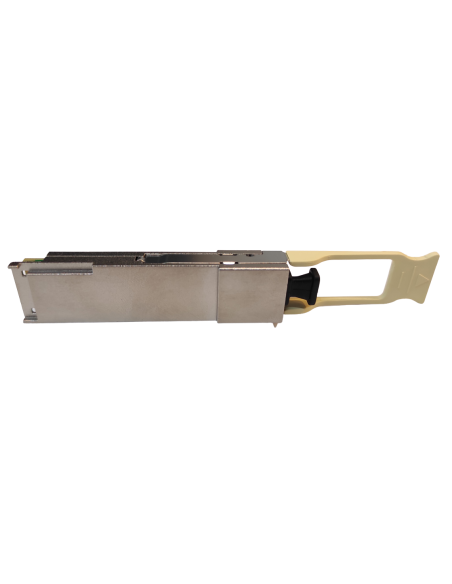

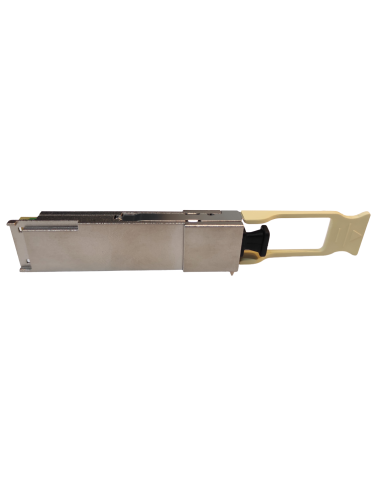

BEXO BG+Q40MM 40G QSFP+ SR4 300Meter 850nm MPO DDM Transceiver
BEXO BG+Q40MM 40G QSFP+ SR4 300Meter 850nm MPO DDM Transceiver
BEXO BG+Q40MM 40G QSFP+ SR4 300Meter 850nm MPO DDM Transceiver
BEXO BG+Q40MM 40G QSFP+ SR4 300Meter 850nm MPO DDM Transceiver

BEXO BG+Q40MM 40G QSFP+ SR4 300Meter 850nm MPO DDM Transceiver

BG+Q40MM
In Stock
$92.51
Tax included

BG+Q40MM

These transceiver modules are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4.The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, control and bias blocks. The optical receiver portion of the transceiver incorporates a 4-channel PIN photodiode array, a 4-channel TIA array, a 4 channel output buffer, control blocks.



BG+Q40MM - BEXO 40G QSFP+ SR4 300Meter 850nm MPO DDM Transceiver

Product Features
• High Channel Capacity: 40 Gbps per transceiver
• Transmission data rate up to 10.3Gbps per channel
• Up to 300m links on OM3 MMF or 400m on OM4 MMF
• High-Reliability 4-channel 850nm VCSEL laser
• Electrically hot-swappable
• Compliant with QSFP+ MSA
• Compliant with IEEE 802.3ba 40GBASE-SR4
• MPO(MTP) Optical Connector
• Operating temperature range:0~70ºC
• Power dissipation < 1.5 W
• Supports DDMI function
• RoHS6 Compliant

Applications
• 40G Ethernet
• OTU3

SFP
Yes, 40G QSFP+
4712331728010
BG+Q40MM
