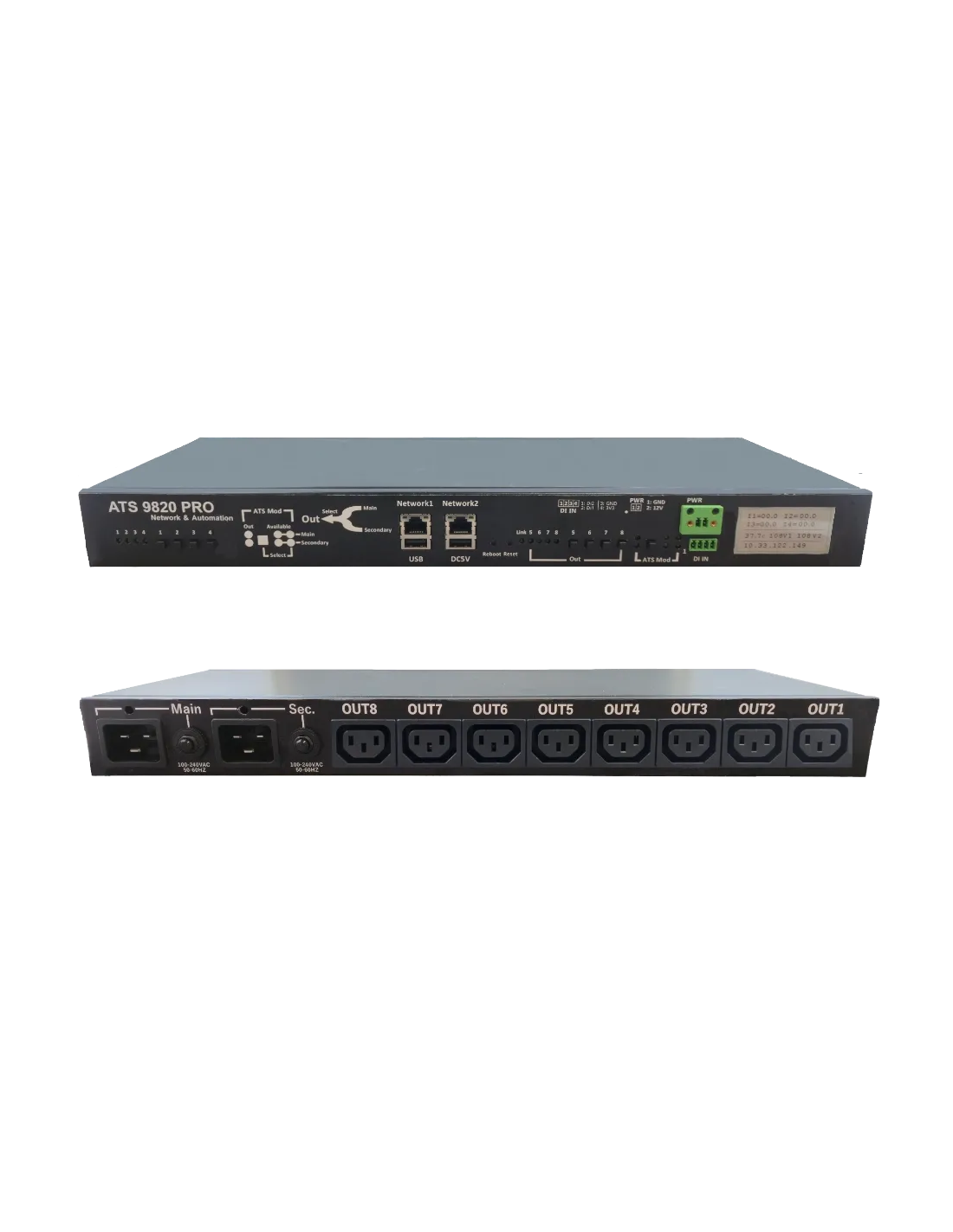

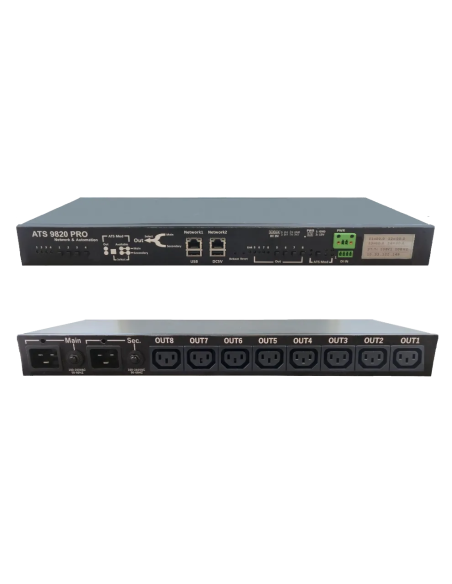

Aviosys ATS 9820 PRO

The Aviosys ATS 9820 PRO is an intelligent Automatic Transfer Switch (ATS) with integrated remote power distribution, designed to provide uninterrupted power for mission-critical IT and network equipment. Featuring dual AC power inputs with automatic source switching, independently controlled power outlets, and real-time power monitoring, it helps maximize system availability while simplifying power management for data centers, server rooms, telecommunications, and industrial applications.

Key Features

  • ✓Automatic Transfer Switch (ATS) with Dual 100–240V AC Power Inputs
  • ✓8 Individually Switched Power Outlets with Remote Power Management
  • ✓Automatic Power Source Failover for Continuous Power Availability

  • ✓Real-Time Power Monitoring with Current, Voltage, and Temperature Metering

  • ✓Secure Network Management with HTTPS, IPv4/IPv6, SNMP v1/v2/v3, MQTT, and Modbus TCP
  • ✓UPS Integration for Enhanced Power Redundancy and Monitoring

Related Products & Accessories



Aviosys ATS 9820 PRO Automatic Transfer Switch with Remote Power Distribution

Planet ISW-621TF



Technical Specifications

Specification Value
Dimensions (L × W × H) 450 × 170 × 45 mm
Rack Mounting 19" Rack Mount (Rack Ears Included)
Operating Temperature 0°C to 50°C
Power Specifications
Power Input 100–240V AC
C20 x 2 (with two fuse Protection buttons)
Maximum Input Current 10A
Maximum Output Current (8 Outlets) 15A @ 110V
10A @ 220V
Interfaces & Controls
Front Panel LED Status Indicators
E Ink Display
Hardware Reset Button
Reboot Button
8 Outlet Control Buttons
ATS Main/Secondary Power Switch Button
Digital Inputs 2 × DI
DC Outputs 1 × 12V DC Terminal, 1 × 5V DC USB
Networking
Ethernet Ports 2 × 10/100Mbps RJ45 Ethernet Ports
Main Port (Static IP)
Sub Port (DHCP)
Network Configuration Supports Separate LANs or Different Gateways on the Same LAN
Wireless Connectivity Optional
USB Connectivity
USB Ports 2 × USB 2.0 Ports
USB Functions Power Bank UPS Support and 5V DC USB Output
Optional Accessories
Optional Module 4 DO Module (USB-to-RS232 Cable Included)
ATS 9820 PRO
