ASRock Rack X470D4U2-2T AM4 mATX Server Motherboard

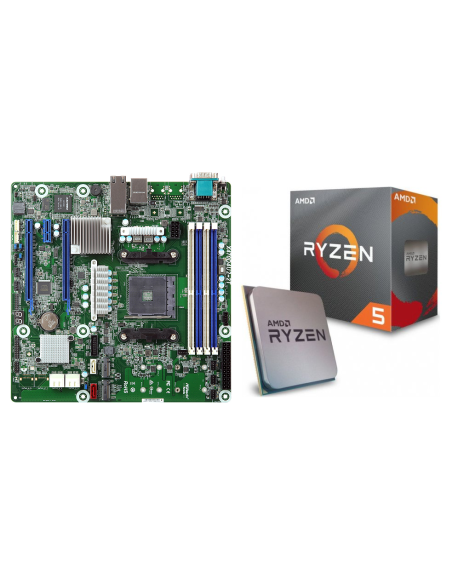

ASRock Rack X470D4U-2T AMD X470 mATX Server Motherboard w/ 2x 10G LAN with AMD Ryzen 5 3600 AM4 CPU Processor combo deal
  • On sale!
ASRock Rack X470D4U2-2T AM4 mATX Server Motherboard
ASRock Rack X470D4U-2T AMD X470 mATX Server Motherboard w/ 2x 10G LAN with AMD Ryzen 5 3600 AM4 CPU Processor combo deal

X470D4U2-2T ASRock Rack AMD X470 mATX Server Motherboard w/ 2x 10G LAN

X470D4U2-2T
*** Out of stock ATM, Available On Backorder ***
$753.49
Tax included

X470D4U2-2T

ASRock Rack X470D4U2-2T Server Motherboard Key Features

  • Supports AMD AM4 Socket Ryzen Series CPUs
  • Supports 4x DDR4 ECC and non-ECC UDIMM, max. 64 GB
  • Supports up to 6 x SATA3 6.0Gb/s (inculded 1 SATA DOM), 2 x M.2
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports 2 x RJ45 10G base-T by Intel X550-AT2
  • Supports 2 x PCIe 3.0 x16, 1 x PCIE 2.0 x1

AMD Ryzen CPU Combos now available! (selectable below)

  • AMD Ryzen 5 3600 6 Core Socket AM4 3.6GHz CPU Processor w/ Wraith Stealth Cooler
  • AMD Ryzen 7 3700X 8 Core Socket AM4 3.6GHz CPU Processor w/ Wraith Stealth Cooler
  • Combo does not include installation. Mobo + CPU packaged separately



Processor Combos
  • No thanks
  • AMD Ryzen 7 3700X
  • AMD Ryzen 5 3600



X470D4U2-2T ASRock Rack AMD X470 mATX Server Motherboard 2x 10G LAN

International buyers, please email us for shipping quote

Form Factor
mATX
Ethernet Ports
3, 3
No reviews
 MB Physical Status
Form Factor - micro-ATX
Dimensions - 9.6'' x 9.6'' (24.4 cm x 24.4 cm)
 Processor System
CPU - AMD AM4 Socket Ryzen Series CPUs (Raven Ridge and Pinnacle Ridge) and Ryzen 7nm CPUs
Socket - AM4 PGA 1331
Chipset - AMD X470
 System Memory
Capacity - 4 x 288-pin DDR4 DIMM slots
- Support up to 64GB DDR4 ECC/UDIMM
- One DIMM: 1R DIMM @2667MT/s; 2R/2DR DIMM@2400MT/s
- Two DIMMs: (2) 1R DIMM @2133 MT/s; (2) 2R/2DR DIMM@1866MT/s; 1R and 2R/2DR DIMM each @1866MT/s
Type - Dual Channel DDR4 memory technology
- Support DDR4 ECC/UDIMM
DIMM Size Per DIMM - ECC/UDIMM: 64GB, 32GB, 16GB, 8GB
DIMM Frequency - ECC/UDIMM: 2666/2400/2133 MHz
Voltage - 1.2V
 Expansion Slot
PCIe 3.0 x 16 - PCIE6: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied.
- PCIE4: Gen3 x8 link
PCIe 2.0 x 1 - PCIE5: Gen2 x1 link
 Storage
SATA Controller - 6 x SATA3 6.0 Gb/s (1x SATA DOM port), support RAID 0, 1, 10
M.2 slot - 2 (2242/2260/2280/22110, supports SATA3 and PCIe 3.0 x2 or supports PCIe 2.0 x4 only)
 Ethernet
Interface - 10000/1000 /100 /10 Mbps
LAN Controller - 2 x RJ45 10G base-T by Intel® X550-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN3 supports NCSI
 Management
BMC Controller - ASPEED AST2500
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
 Graphics
Controller - ASPEED AST2500
VRAM - DDR4 256MB
 Rear Panel I/O
VGA Port - 1 x D-Sub
USB 3.1 Gen2 Port - 2
Lan Port - 2 x RJ45 10 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 x COM port
UID Button/UID LED - 1
 Internal Connector
SATA DOM - 1
M.2 - 2(M2_1: 2242/2260/2280/22110, PCIE(X4); M2_2:2242/2260/2280/22110, SATA/PCIE(X2))
Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, front LAN LED, system fault, and BMC alert)
TPM Header - 1
IPMB Header - 1
Buzzer - 1
Fan Header - 6 Fans x 4-pin (FAN1(CPU)/FAN2~FAN6(5Front))
ATX Power - 1 x (24-pin) + 1 x (8-pin)
USB 3.1 (Gen1) Header - 1 (supports 2 USB 3.1 Gen1 ports)
PSU SMB Header - 1
Front Panel - 1 (RST, PWRBTN, HDDLED, PWRLED)
BMC_SMB Header - 1
Clear CMOS - 1 (short pad)
 Onboard LED
80 Debug Port LED - 1
Fan Fail LED - 6 (only Fan Fail LED)
 System BIOS
BIOS Type - 16MB AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
 Hardware Monitor
Temperature - CPU/DDR/LAN Temperature Sensing
- MB/Card Side Temperature Sensing
Fan - Fan Tachometer
- Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control
Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
 Support OS
OS Microsoft® Windows: Windows® 10 (64 bit)
Linux:
- UBuntu 16.04.4 (64 bit)
- RedHat Enterprise Linux Server 7.3 (64bit) / 7.4 (64bit)

* Please refer to our website for the latest OS support list.
* On Linux system doesn't support Raid mode
* Support UEFI BOOT only
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
