ASRock Rack B650D4U mATX AMD Ryzen 7000 4xDIMM 1xPCIe M.2 RJ45 1GbE SATA HDMI DisplayPort IPMI Server Motherboard

B650D4U
In Stock
$783.20
Tax included

B650D4U

  • Micro-ATX (9.6"x 9.6")
  • Support AMD Ryzen 7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)



B650D4U - ASRock Rack mATX AMD Ryzen 7000 4xDIMM 1xPCIe M.2 RJ45 1GbE SATA HDMI DisplayPort IPMI Server Motherboard

Specifications

 Physical Status
Form Factor Micro-ATX
Dimensions 9.6" x 9.6"
 Processor System
CPU Supports AMD Ryzen 7000 series Processors
Socket Single Socket AM5 (LGA 1718)
Thermal Design Power 120W (Air)/170W (Liquid)
Chipset AMD B650E
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM 32GB
Max. DIMM Frequency 5200 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4 SLOT7: PCIe5.0 x4 [CPU]
PCIe x 1 SLOT4: PCIe4.0 x1 [FCH]
 Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]
 SATA/SAS Storage
PCH Built-in Storage AMD B650E (4 SATA 6Gb/s):
4 SATA 7-pin
 Ethernet
Additional GbE Controller Intel® i210: 2 RJ45 (1GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort

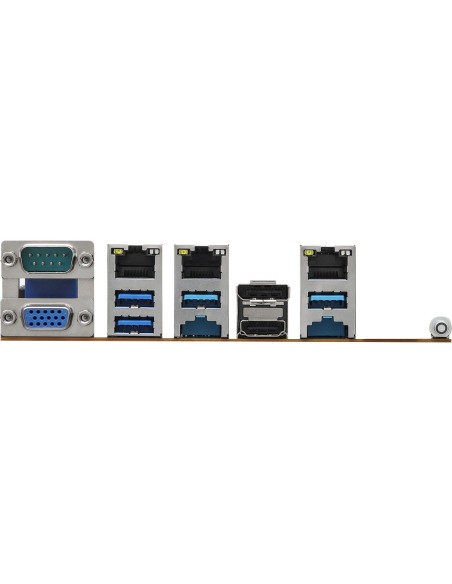

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port 1 DB9 (COM)
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE)
1 dedicated IPMI
 Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header 1
Speaker Header 1
Buzzer 1
Fan Header 7 (6-pin)
TPM Header 1 (13-pin, SPI)
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1
Others 1 (3-pin, 80 debug port header)
 LED Indicators
Standby PWR LED 5vsb 1 (5VSB)
80 Debug Port LED 1
Fan Fail LED 7
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
 Hardware Monitor
Temperature CPU, DDR, MB, Card Side, Chipset, M.2 slot
Fan Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)

Form Factor
mATX
Ethernet Ports
2
4717677339784
B650D4U
