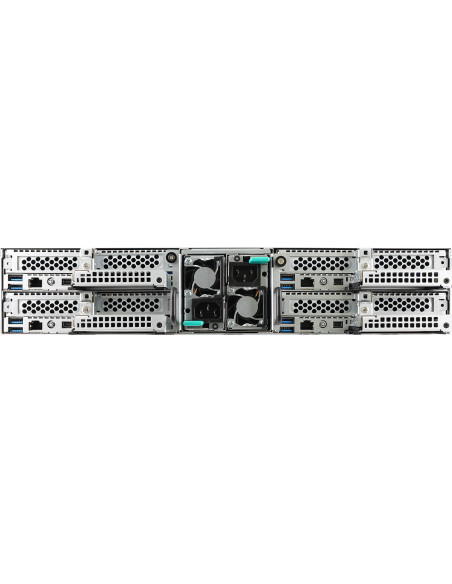

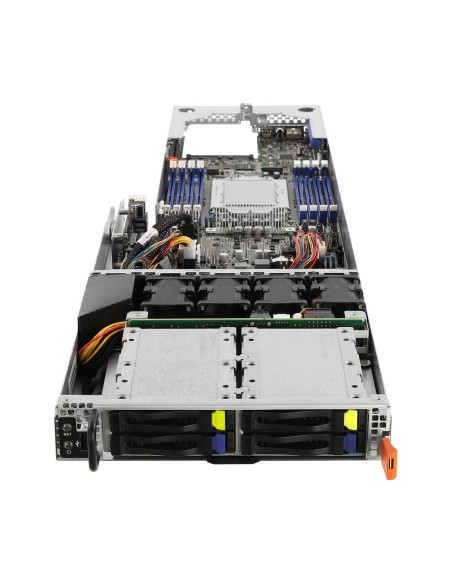

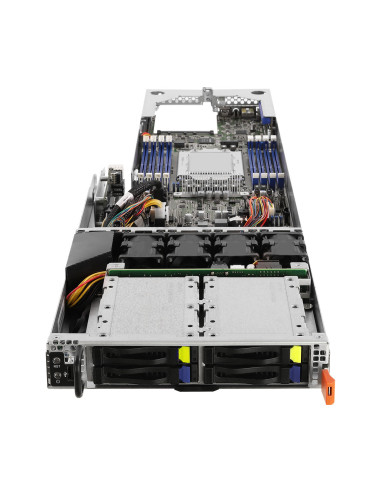

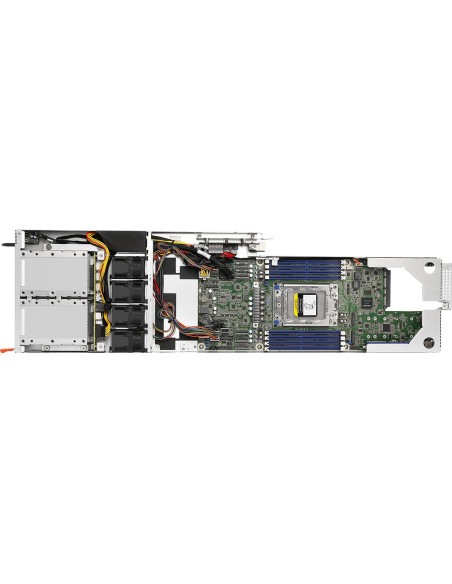

ASRock Rack 2U4N-F/ROME-M3 2U Rackmount 1600W Redundant (1+1) PSU SP3 supports AMD EPYC™ 7003 DDR4 HDD/SSD M.2 IPMI KVM OCP 3.0
2U4N-F/ROME-M3
Out Of Stock
$7,478.90
Tax included
2U4N-F/ROME-M3
- 2U chassis with 4 node support 16x 2.5'' HDD, 1600W Redundant (1+1) PSU
- Single Socket SP3 supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series Processors
- 8 DIMM Slots, Supports Eight-Channel DDR4 3200/2933 R DIMM (Modules up to 64GB Supported), and LR DIMM (Modules up to 256GB Supported)
- Supports 4 x 2.5" HDD/SSD per node (all SATA or 2 x NVMe + 2 x SATA)
- Supports 2 x ( (SATA/PCIe x4) 2280/22110) M.2 per node
- Integrated IPMI 2.0 and KVM with Dedicated LAN
- Supports OCP 3.0 PCIe4.0 x 16 mezzanine card
2U4N-F/ROME-M3 - ASRock Rack 2U Rackmount 1600W Redundant (1+1) PSU SP3 supports AMD EPYC™ 7003 DDR4 HDD/SSD M.2 IPMI KVM OCP 3.0
Specifications
| System | |
| Form Factor | - 2U Rackmount |
| Chassis Model | - 2U4N-F |
| Dimensions | - 820 x 442.2 x 86.6mm (32.3'' x 17.4'' x 3.4'') |
| Support MB | - 17”X6.5”(431.8mm X 165.1mm) |
| Front Panel | |
| Buttons | - Power On/Standby button(per node) in the front - System reset button(per node) in the front - UID button(per node) in the rear |
| LEDs | - HDD Act/Err/Locate LED - Power LED (Front Panel per Node) - UID LED (Front Panel per Node) |
| I/O Ports | - 1 x USB 2.0 ports(per node) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | - 4x 2.5" HDD/SSD per node (all SATA or 2 x NVMe + 2 x SATA) |
| Internal Side | - 2 M.2 ( (SATA/PCIe x4) 2280/22110) |
| Power Supply | |
| Type | - 2 (1+1) RPSU |
| Output Watts | - 1600W |
| Efficiency | - Platinum |
| System Fan | |
| Fan | - 40x56mm x16 |
| Physical Status | |
| Form Factor | - Half width |
| Dimensions | - 6.5'' × 17" |
| Processor System | |
| CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology |
| Socket | - Single Socket SP3 LGA 4094 |
| Thermal Design Power | - 120W~225W |
| System Memory | |
| Supported DIMM Quantity | - 8 DIMM slots |
| Supported Type | - 1 DIMM per channel. DDR4 RDIMM, LRDIMM up to 3200MHz |
| Voltage | - 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | - 2 PCIe4.0 x16 (Low Profile card) |
| Server Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2500 |
| Rear I/O | |
| UID Button/LED | - 1 UID button w/ LED |
| VGA Port | - 1 mini DIsplayPort |
| USB 3.2 Gen1 Port | - 2 Type-A (USB3.2 Gen1) |
| RJ45 | - 1 (IPMI) Lan port (RJ45) - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Internal Connector/Headers | |
| Power Connector | - 2x 8-pin |
| Auxiliary Panel Header | - 1(CI, FSMB, 2FLANLED, LOCBLED) |
| COM Header | - 1 |
| Fan Header | - 4x 6 pin system Fan |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| USB 3.2 (Gen1) Header | - 1 header (19-pin, 2 USB3.2 Gen1) |
| Type A USB 2.0 Port | - 1 Type-A (USB2.0) |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing - MB/Card Side Temperature Sensing |
| Fan | - Fan Tachometer - Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring:+12V, +5V, +3.3V, VSOC, VCPU, VPPM_ABCD, VPPM_EFGH, VCCM_ABCD, VCCM_EFGH, +BAT, 3VSB, 5VSB, +1.8V, +1.8VSB, MEZZ_P1_+3V |
| Watchdog | - Yes |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
- Device Features
- Rackmount
Redundant Power - Ethernet Ports
- 1 Eth port
- Environment Temperature
- -40℃~75℃
- Installation Type
- Rack-mount
