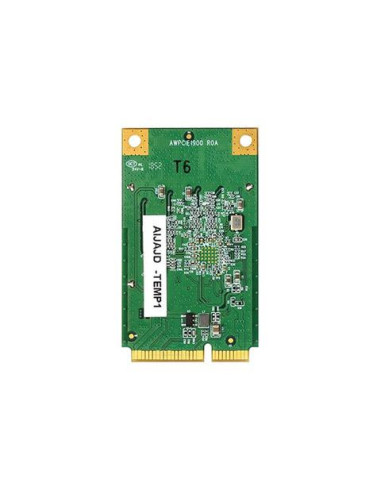

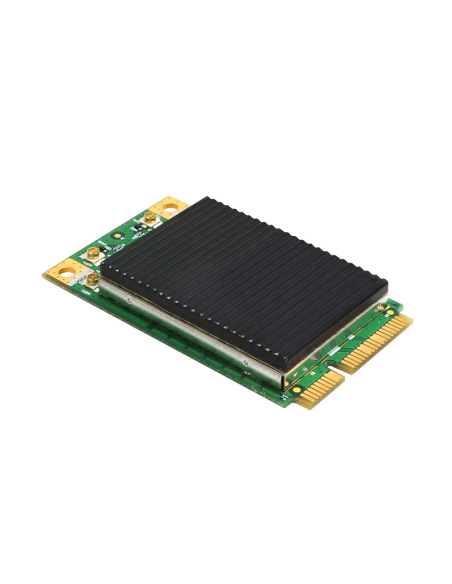

Alfa AWPCIE-1900U 802.11ac 4x4:3 MIMO dual-band mini PCIe card with USB 3.0 interface
AWPCIE-1900U
802.11ac 4x4:3 MIMO dual-band mini PCIe card with USB 3.0 interface
- Realtek RTL8814AU WiFi5 chipset
- Standard mini PCIe form factor
- 4×4 MIMO with 3 spacial streams and a maximum 24.5 dBm TX power
- USB 3.0 interface (with USB 2.0 compatibility)
- Integrated voltage converter (requires only 3.3 V supply)
AWPCIE-1900U - Alfa AWPCIE-1900U 802.11ac 4x4:3 MIMO dual-band mini PCIe card with USB 3.0 interface
AWPCIE-1900U is a dual-band mini PCIe WiFi5 (802.11ac) card, utilizing high-performance Realtek RTL8814AU chipset
AWPCIE-1900U is based on highly integrated 4T4R, 3-streams MIMO Realtek RTL8814AU WiFi5 controller, with dual-band support and backward compatibility (802.11a/b/g/n).
Standard full-size Mini Card form factor with USB 3.0 (USB 2.0 compatible) interface and wide operating systems support (Microsoft Windows, MAC OS X, Linux kernel) makes integration and deployment easy.
Parameter |
Value |
Chipset |
|
IEEE 802.11 standards |
|
Frequency |
|
Data rate |
|
Antenna connectors |
|
Interface |
|
Operating systems |
|
Power consumption |
|
Form factor |
|
Dimensions |
|
- Wireless System
- 2.4GHz
5GHz
