VC-234 4-Port 10/100TX Ethernet over 100/100 mbps VDSL2 Bridge - 30a profile

    VC234 PLANET 4-Port Ethernet over VDSL2 Bridge

    Last items in stock
    Tax included

    This 4-Port Ethernet over VDSL Bridge from PLANET Technology is designed for high performance based on two-core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-234 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 20/4Mbps for 1.4km long range connections.

    Implementing with Existing Telephone Copper Wires

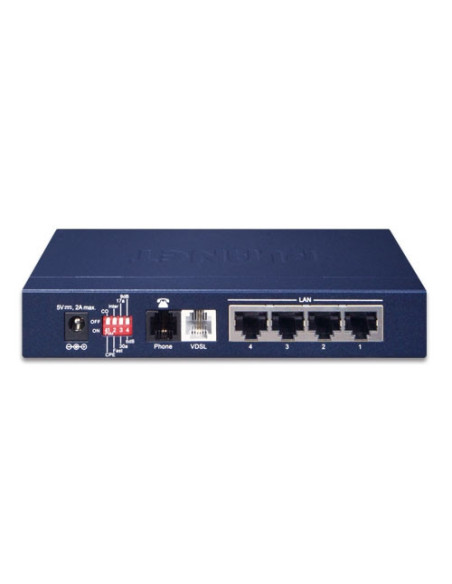

    The VC-234 is also a Long Reach Ethernet (LRE) Bridge providing four RJ-45 Ethernet ports and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-234 has built-in POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-234 into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-234 is ideal to be used as an Ethernet extender to an existing Ethernet network.

    Delivering High-Demand Service Connectivity for ISP / Triple Play Devices

    The VC-234 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-234 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.

    Easy & Flexible Installation

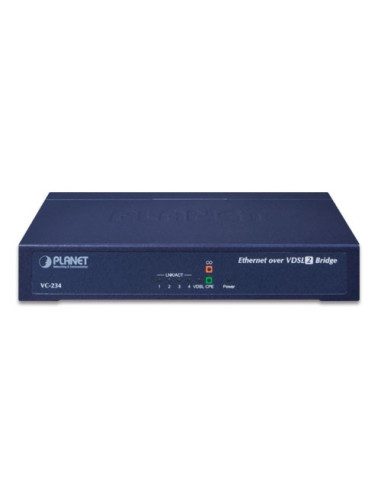

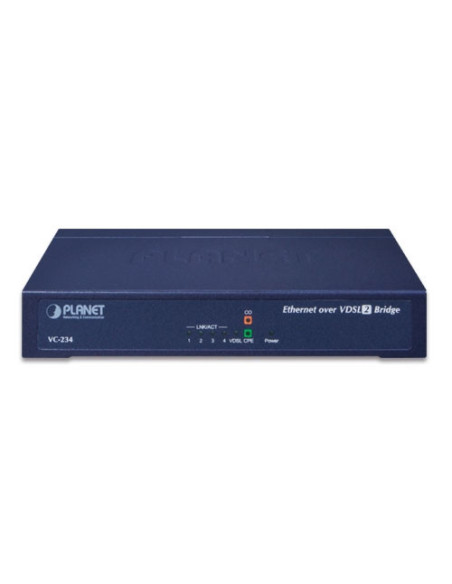

    The Ethernet-over-VDSL2 Bridge comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-234 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-234 and a CO mode VC-234 must be setup as one pair of converters to perform the connection.

    Providing Superior Upstream and Downstream Transmission Performance

    The VC-234 also defines symmetric band plan for the transmission of upstream and downstream signals; the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VC-234 is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VC-234 is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.


    Hardware Specifications


    10/100Base-TX: 1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X

    VDSL: 1 RJ-11, female Phone Jack

    PHONE: Additional Splitter for POST connection

    DIP Switch & Functionality

    • CO / CPE mode select

    • Selectable fast and interleaved mode

    • Selectable target 17a / 30a profiles

    • Selectable target SNR mode


    • VDSL-DMT

    - ITU-T G.993.1 VDSL

    - ITU-T G.997.1

    - ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)

    LED Indicators

    • One Power

    • 4 for RJ-11/VDSL2

    • 1 for per RJ-45 10/100Base-TX port


    • Ethernet

    10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)

    100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)

    • VDSL

    Twisted-pair telephone wires (AWG24 or better) up to 1.4km

    Performance* (Downstream / Upstream)

    • 17a profile

    300m -> 86/65Mbps

    400m -> 86/52Mbps

    600m -> 81/36Mbps

    800m -> 72/19Mbps

    1000m -> 60/9Mbps

    1200m -> 59/6Mbps

    1400m -> 50/2Mbps

    • 30a profile

    300m -> 100/100Mbps

    400m -> 90/90Mbps

    600m -> 61/40Mbps

    800m -> 54/8Mbps

    Power Requirements

    5V DC, 2A

    Power Consumption

    6.6 Watts / 22 BTU

    Dimensions (W x D x H)

    97 x 70 x 26 mm





    Temperature: 0 ~ 50 degrees C

    Relative Humidity: 10 ~ 90% (non-condensing)


    Temperature: -10 ~ 70 degrees C

    Relative Humidity: 10 ~ 90% (non-condensing)

    Switch Specifications

    Switch Processing Scheme


    Address Table

    1K entries

    Flow Control

    Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex

    Switch fabric


    Throughput (packet per second)


    Network cables


    2-Pair UTP Cat. 3,4, 5 (100meters, max.)

    EIA / TIA-568 100-ohm STP (100meters, max.)

    Standard Conformance

    Regulation Compliance

    FCC Part 15 Class A, CE

    Standards Compliance

    IEEE 802.3 10Base-T

    IEEE 802.3u 100Base-TX


    - G.993.1 (VDSL)

    - G.997.1

    - G.993.2 VDSL2 (Profile 17a/30a)

    * The actual data rate will vary on the quality of the copper wire and environment factors.


    Connector Type
    RJ45, VDSL2
    Device Type
    Media Converter
    Ethernet Ports
