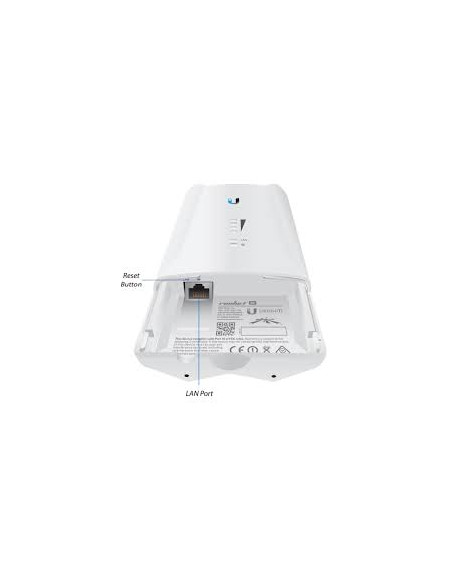

Ubiquiti RocketM5 AC Lite 802.11n/ac RM5-AC-PTP-Lite&RM5-AC-PTP-Lite
Ubiquiti airMAX®ac BaseStation R5AC-Lite
Featuring proprietary airMAX® ac technology, the Rocket™5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade.
Ubiquiti RocketM5 AC Lite 802.11n/ac RM5-AC-PTP-Lite&RM5-AC-PTP-Lite
Ubiquiti airMAX®ac BaseStation R5AC-Lite
Featuring proprietary airMAX® ac technology, the Rocket™5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade.
Performance Breakthrough via ac chipset airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance. With RM5AC-lite you will have the freedom to locate, deploy, and operate fast PtP links anywhere in the world. It allows for a high degree of flexibility in configuring channel bandwidths: 20, 40, 50, 60, and/or 80 MHz, depending on local country regulations.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Plug and Play Integration
The innovative airMAX® ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.
Technical Specifications of RocketM5-AC-Lite:
- CPU:MIPS 74Kc
- Memory: 128 MB DDR2 RAM, 16MB Flash
- ESD protection:±24KV Air / Contact
- Dimensions 162 x 84 x 37 mm
- Weight 250 g
- Operating Frequency Worldwide: 5170 - 5875 MHz
- Networking Interface (1) 10/100/1000 Ethernet Port
- RF Connectors (2) RP-SMA (Waterproof)
- LEDs Power, LAN, (4) Signal Strength
- Enclosure Outdoor UV Stabilized Plastic
- Max. Power Consumption 8.5W
- Power Supply 24V, 0.5A Gigabit PoE Adapter (1 pcs Included along with Australian power cable)
- Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Operating Temperature -40 to 80° C
- Operating Humidity 5 to 95% Non-Condensing
If you like you can choose spare POE injector for Rocket 5 AC lite, it's 24V POE with Gigabit port. Available from dropdown menu
Ubiquiti ac dish antenna to suit 5GHz 31dBi Rocket Dish RD-5G31-AC 600mm
- Device Type
- Base Station System
- Device Features
- Outdoor
- Wireless System
- 5GHz
- Ethernet Ports
- 1
