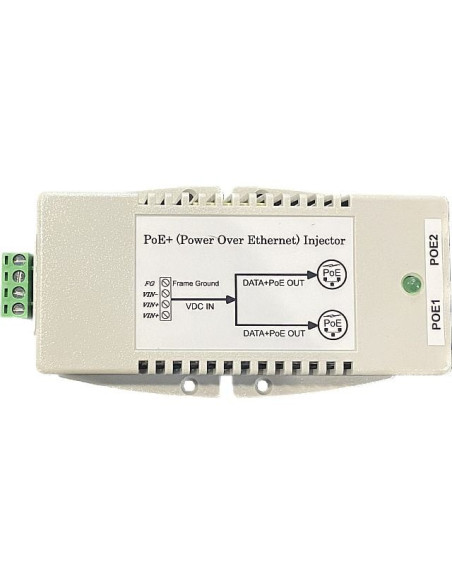

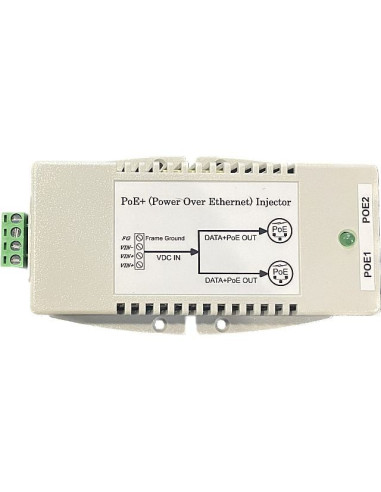

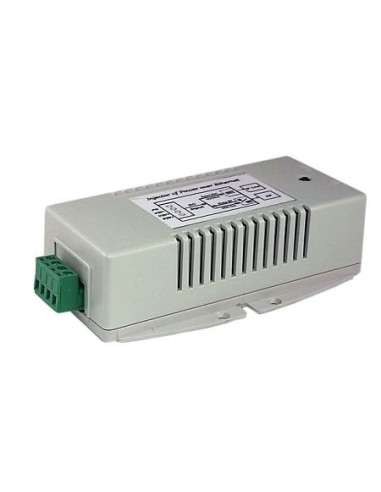

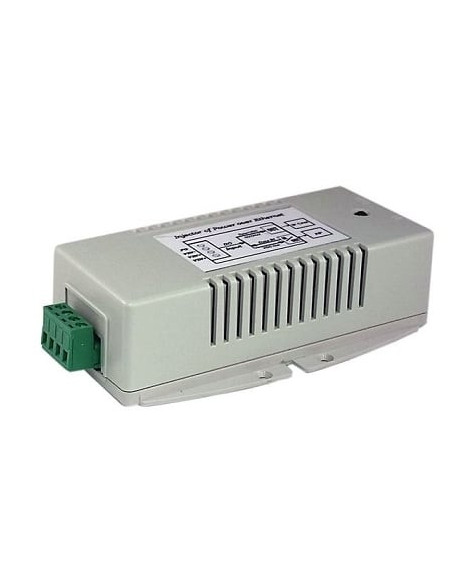

Tycon 10-15VDC Input Dual Gigabit 56V 802.3at Output 42W Converter

TP-DCDC-1248GDx2-HP - 10-15VDC Input Dual Gigabit 56V 802.3at Output 42W Converter

The TP-DC-1248GDX2-HP is a unique high power PoE injector with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the devices is handled by the injector so no PoE switch is required.

This model runs on 12VDC. The total combined output is up to 42W.

They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.

The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.

Features
• Input Voltage 12VDC
• Dual 802.3af/at outputs
• High Power Output to 42W
• Surge Protected to 15kV
• Dual DC Inputs for Connecting 2 Power Sources
• 10/100/1000 Data Compatibility, Shielded Connectors
• Short Circuit, Over Current and Reverse/Over Voltage Protection
• Industrial Temperature Range, DIN Rail Mountable

Applications
• 12VDC Remote Power Systems running on batteries
• Power a Camera and Wireless using a single PoE Injector
• Power a Wireless AP and Backhaul using a single PoE injector
• PoE Lighting Applications
