TP-SC12-5
Last items in stock
$176.06
Tax included

TP-SC12-5

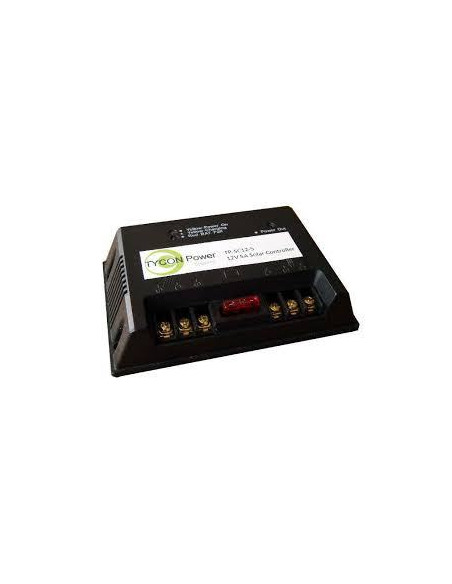

The TP-SC12-5 from Tycon Power is an industrial 3-stage solar battery charge controller with full electronic protections for short circuit, reverse current, overvoltage, overcharge, and over discharge. This device has (3) multifunction LED indicators to provide quick visual status about current load, charge or fault. Connections are via (6) screw terminals for wire size up to 10 AWG. The controllers are externally fused with a standard replaceable fuse. This unit has (4) 4mm screw holes for mounting.

Quantity Unit price You Save
5 $170.77 $26.41


TP-SC12-5 - Tycon 5A 12V Solar Charge Controller

Technical Specifications:

  • Rated Voltage: 12V
  • Rated Current: 5A
  • Max Input Voltage: 25V
  • Maintenance Voltage: 13.8 +/- 0.2V
  • Overcharge Protection: 14.4 +/- 0.2V
  • Over Discharge Voltage Output OFF: 11 +/- 0.2V
  • Over Discharge Voltage Output ON: 12.4 +/- 0.2V
  • Self Consumption: < 10mA
  • Voltage Drop: < 0.4V
  • Max Wire Size: 10 AWG
  • Operating Temperature: -30 to 60C
  • Dimensions: 140 x 89 x 32mm
  • Weight: 198g
0633090397622
TP-SC12-5
