TP-ADAP-e2K

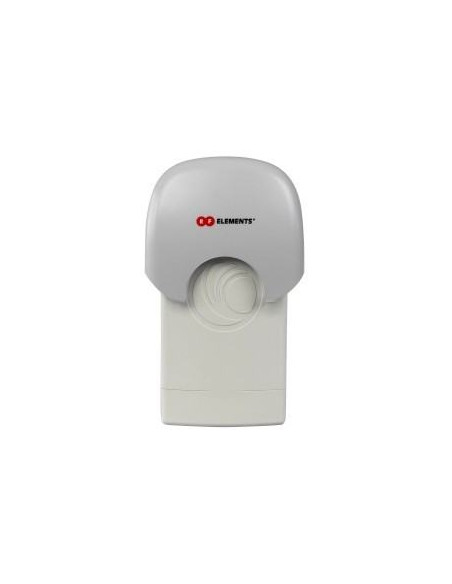

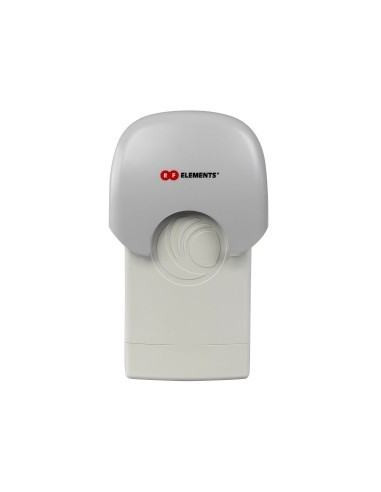

The TP-ADAP-e2K from RF Elements is an adapter which makes the ePMP 2000 series compatible with all TwistPort antennas. The TwistPort Adapter for ePMP 2000 is equipped with an original quick-locking waveguide port to make connecting and disconnecting the ePMP 2000 AP a simple, tool free process.
TP-ADAP-e2K - RF Elements TwistPort Adapter for ePMP 2000
Antenna Connection |
TwistPort - Quick-Locking Waveguide Port |
Radio Connection |
2x Slide-On RP-SMA |
Materials |
Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic |
Flame Rating |
UL 94 HB |
Temperature |
-40°C to +60°C (-40°F to +140°F) |
Wind Survival |
160 km/h |
Weight |
0.42 Kg / 0.9 lbs |
Dimensions |
in box 10.9 × 9.8 × 5.4 cm |
- Connector
- RP-SMA
