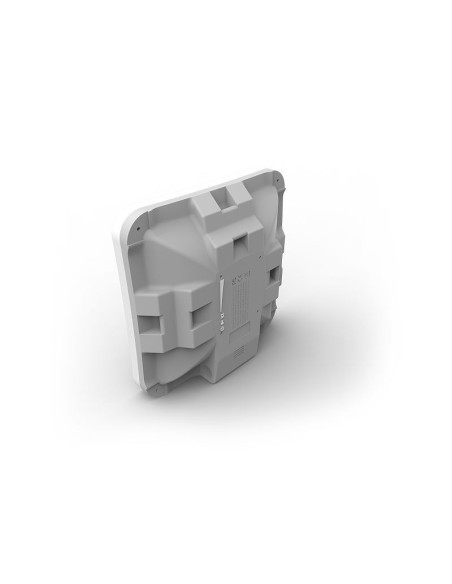

MikroTik SXTsq High Power Dual Chain 5GHz 16dBi Integrated CPE/Backbone
RBSXTsq5HPnD
The RBSXTsq5HPnD from MikroTik is a compact, lightweight weatherproof outdoor wireless device in the SXT series powered by a 600MHz processor and 64MB RAM. The SXTsq 5 High Power has a 16dBi integrated antenna, making it perfect to use in point to point wireless links or as a CPE unit in point to multipoint installations.
The MikroTik SXT series is powered by RouterOS, a full-featured routing operating system with features such as dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, monitoring, and more. This product comes with a Level 4 RouterOS license.
Mount Options
Specifications
Details | |
---|---|
Product code | RBSXTsq5HPnD |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 129 x 129 x 34 mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
PoE in | Passive PoE |
PoE in input Voltage | 10-28 V |
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 7 W |
Wireless
Details | |
---|---|
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz Max data rate | 300 Mbit/s |
Wireless 5 GHz standards | 802.11a/n |
Antenna gain dBi for 5 GHz | 16 |
Wireless 5 GHz chip model | AR9344 |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 1 |
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 28 | -96 |
54MBit/s | 25 | -80 |
MCS0 | 28 | -96 |
MCS7 | 24 | -75 |
- Antenna Gain (dBi)
- 16
- Device Type
- Antenna Integrated Radio
- Device Features
- Outdoor
PoE Powered - MIMO
- 2x2
- Wireless System
- 5GHz
- Ethernet Ports
- 1
