RBDynaDishG-5HacDr3 MikroTik DynaDish ac 5GHz 25dBi CPE
RBDynaDishG-5HacDr3
Out Of Stock
$398.97
Tax included
RBDynaDishG-5HacDr3

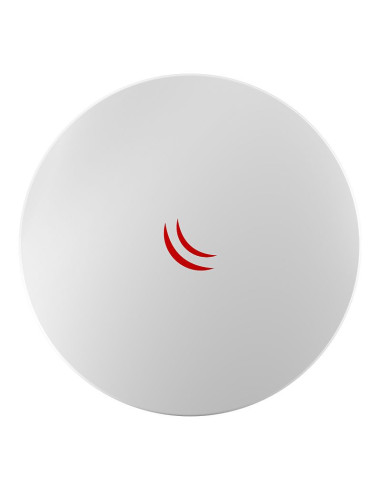

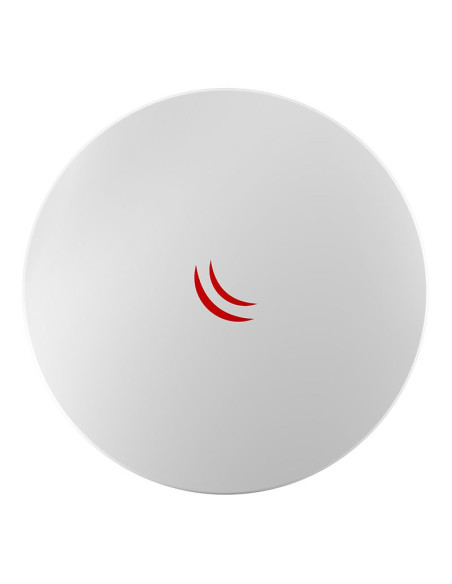

The RBDynaDishG-5HacDr3 from MikroTik is an outdoor 5GHz wireless device with an integrated 25dBi antenna powered by a 720MHz processor. Compact in design, the DynaDish 5 is a completely integrated product with everything you need to quickly install a reliable, fast point to point wireless link.
This MikroTik device is powered by RouterOS, a full-featured routing operating system with features such as dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, monitoring, and more. This product comes with a Level 3 RouterOS license.
Specifications
| Details | |
|---|---|
| Product code | RBDynaDishG-5HacDr3 |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | Ø 404mm, height 175mm (without mount) |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Â | Â |
Â
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-60 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 9 W |
Â
Wireless
| Details | |
|---|---|
| Wireless 5 GHz number of chains | 2 |
| Antenna gain dBi for 5 GHz | 25 |
Â
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Â
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Â
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 28 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
Standard package contains:
- 24V 0.8A power adapter
- Gigabit PoE injector

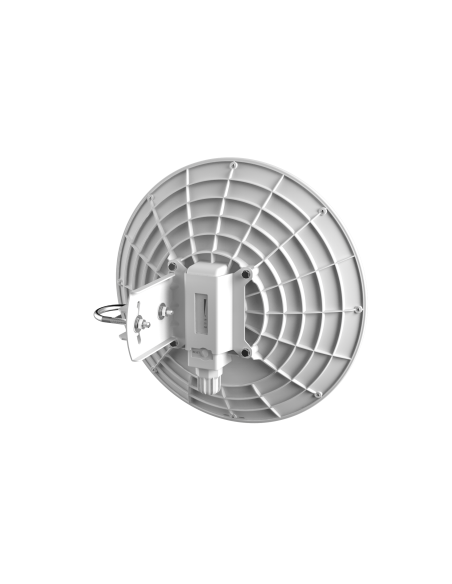

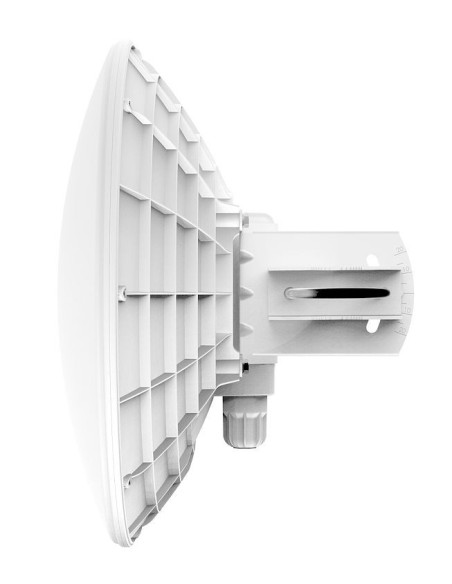

- Dynadish mount
- U bolt kit
- Wireless System
- 5GHz
- Power Over Ethernet
- 48V 15W (802.3af)
- Ethernet Ports
- 1 Port 10/100/1000
- PoE in
- Active
607963866706
