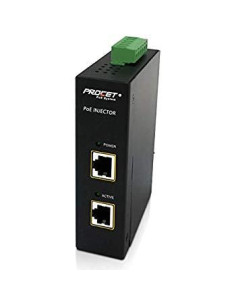

Procet PT-PSE105GWH-E One port Industrial DC Input 95W PoE Injector 802.11bt

PT-PSE105GWH-E - Procet One port Industrial DC Input 95W 802.11bt PoE Injector

Specification

Standard

• IEEE802.3 10Base-T Ethernet
• IEEE802.3e 100Base-Tx Fast Ethernet
• IEEE802.3ab 1000Base-T Gigabit Ethernet
• Full compliant with IEEE802.3af/at, PoE++
• RoHS Compliance
• WEEE Compliance

Input & Output

• Input: 12-55Vdc 10.0A(Max)
• Output: 55Vdc 1750 mA
• Power Pins: 4/5(+), 7/8(-) & 1/2(-), 3/6(+)
• Data Speed: 10/100/1000Mbps

Working Environment

• Operating Temperature: -40°C to 75°C
• Operating Humidity: 20% to 80%, non-condensation
• Storage Temperature: -40°C to 85°C
• Storage Humidity: 10% to 90%, non-condensation
• Operating Altitude: up to 5000 meters

PoE Surge Protection

• Protected line: 1, 2, 3, 4, 5, 6, 7, 8
• Common mode surge protection (10/700us): 6KV
• Differential mode surge protection (10/700us): 1.5KV

Mechanical Characteristics

• Case: Metal
• Color: Black

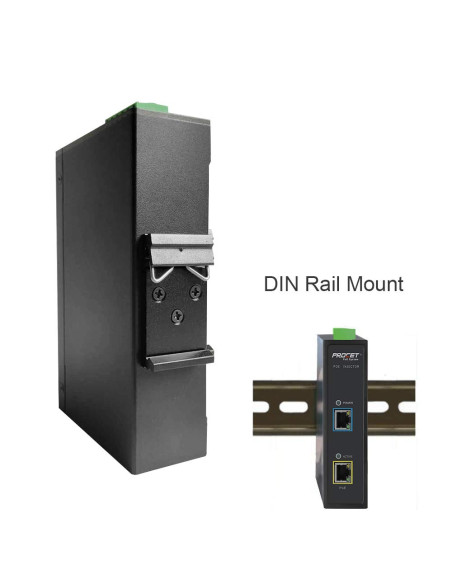

• Mounting: DIN-rail
• IP Rated: IP40
• Size: 144.5mm X 95mm X 35.4mm
• Weight: 400g

Safety Approvals

• CE

EMI

• FCC CFR47 Part 15, EN55032, EN55035

EMS

• IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
• IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
• IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV
• IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
• IEC61000-4-6(CS) 10V(150kHz~80MHz)

Immunity

• IEC60068-2-6(Vibration)
• IEC60068-2-27(Impact)
• IEC60068-2-32(Free Fall)

LED Indicator

• Power Indicator : Green
• PoE Load Indicator : Yellow
