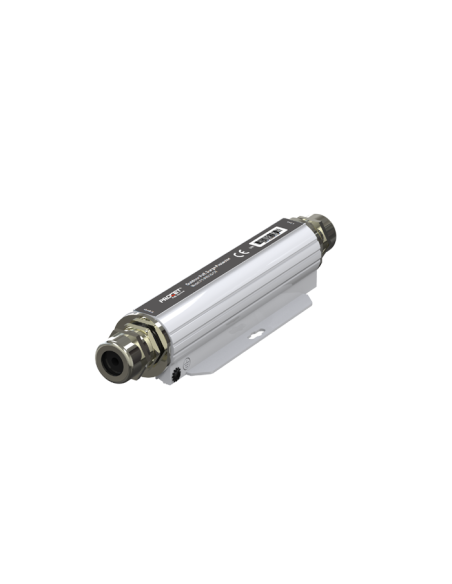

PT-PR01GB-OT 44-57V DC IN 100W 802.3bt Outdoor PoE Surge Protector

Key Features

- Wall-mounted

Part Number

- PT-PR01GB-OT

Ports condition

- PoE Port*2

Regulatory Compliance

- IEEE802.3bt
- RoHS Compliance
- WEEE Compliance

Pass Through Data Rates

- 10/100/1000 Mbps

Output

- Pin Assignment and Polarity:
- 4/5(+), 7/8(-) and 3/6(+),1/2(-)
- User Port Power: 100W (Max.)

Input

- Operating Voltage :44-57Vdc (Max 60Vdc)

Working Environment

- Operating Temperature: -40℃ to 65℃
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -40℃ to 85℃
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters

Mechanical Characteristics

- Case: Alumininum alloy
- Color: White
- Mounting: Wall-mounted
- IP Rated: IP67
- Connectors: Shielded RJ-45*2
- Size: 209mmX 53mmX 37.5mm
- Weight: 380g（13.4oz）

LED Indicator

PoE Load Indicator: Green
