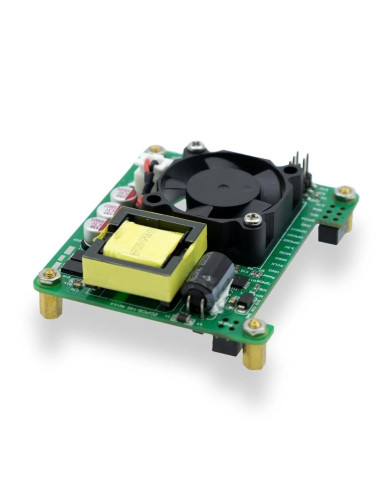

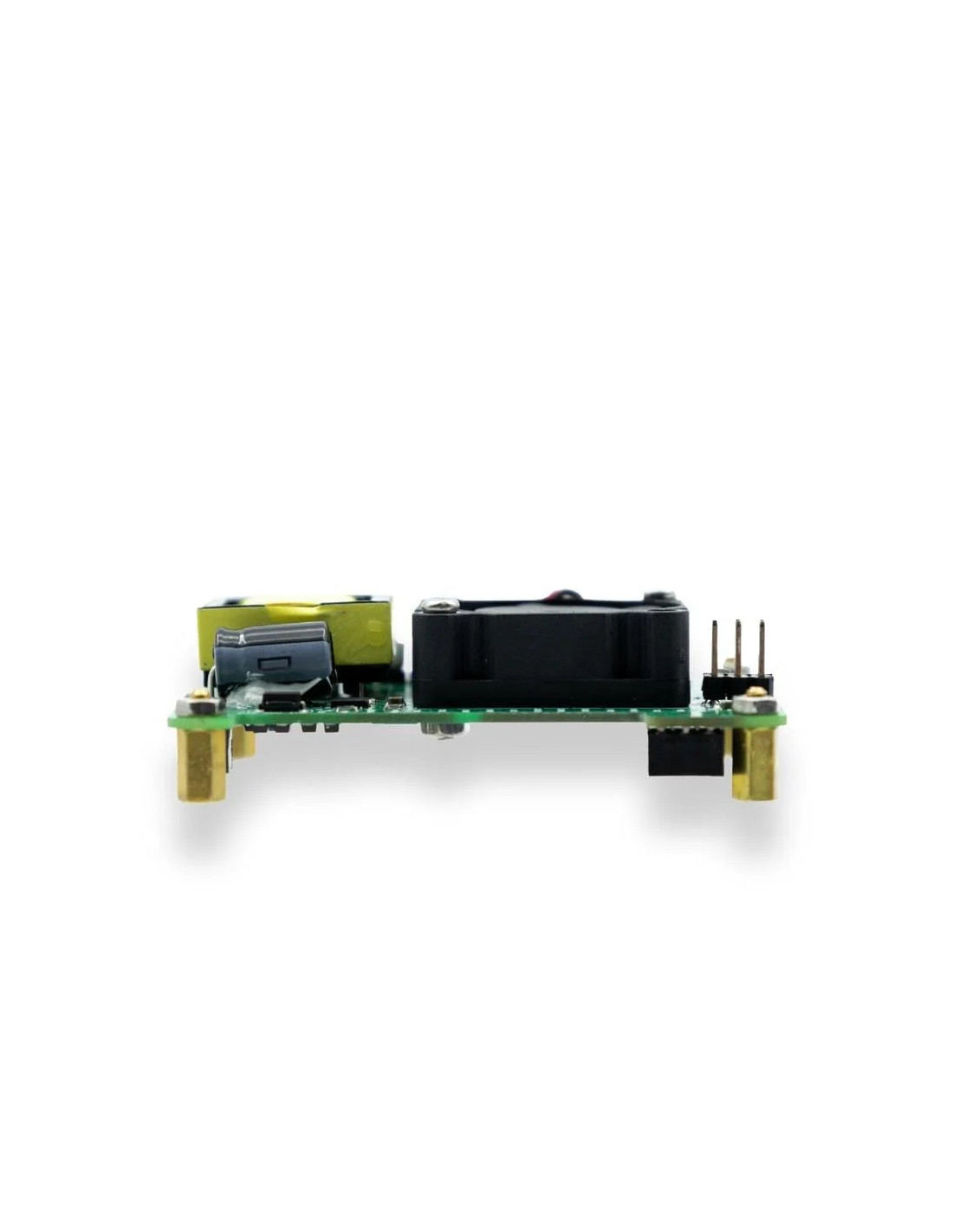

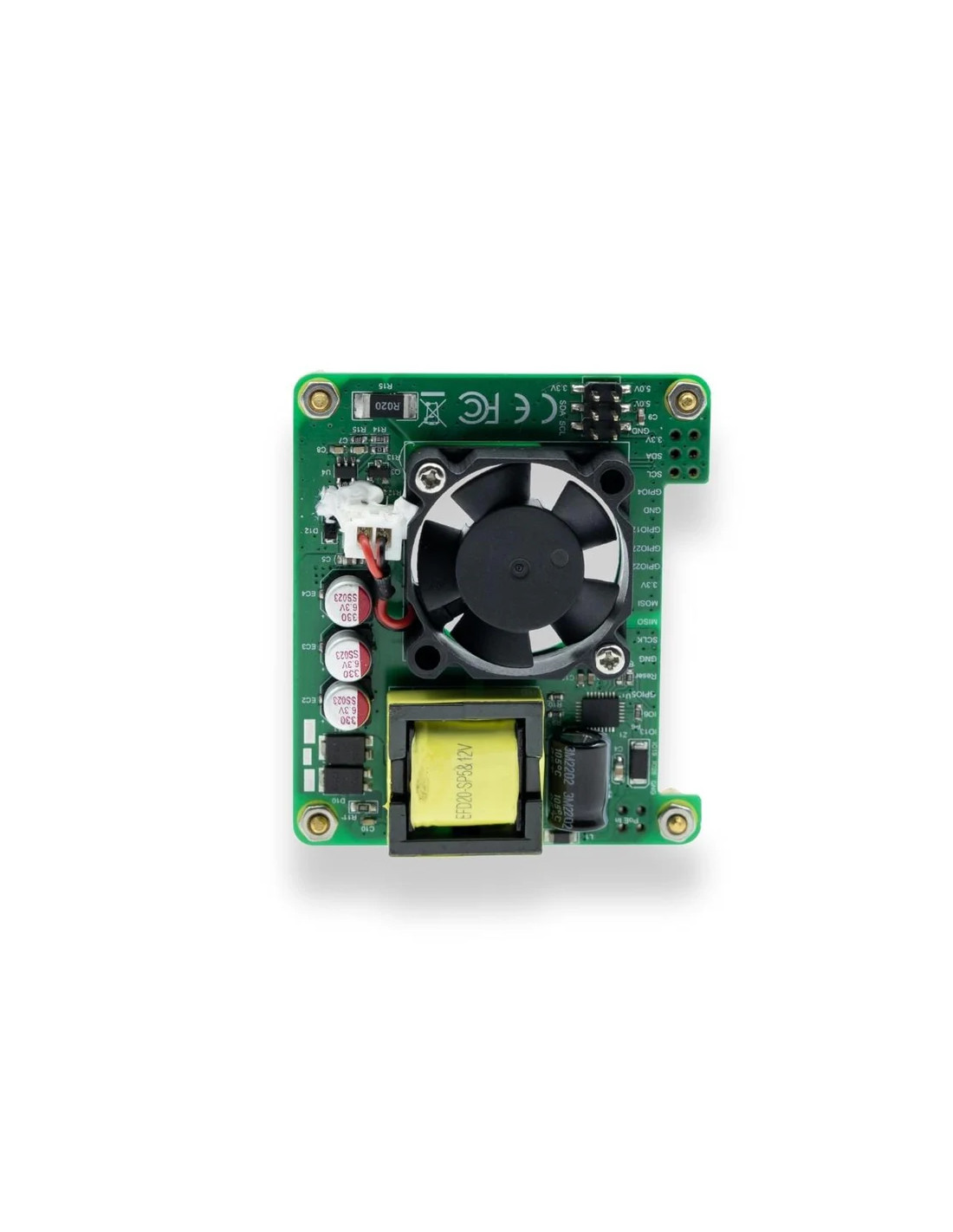

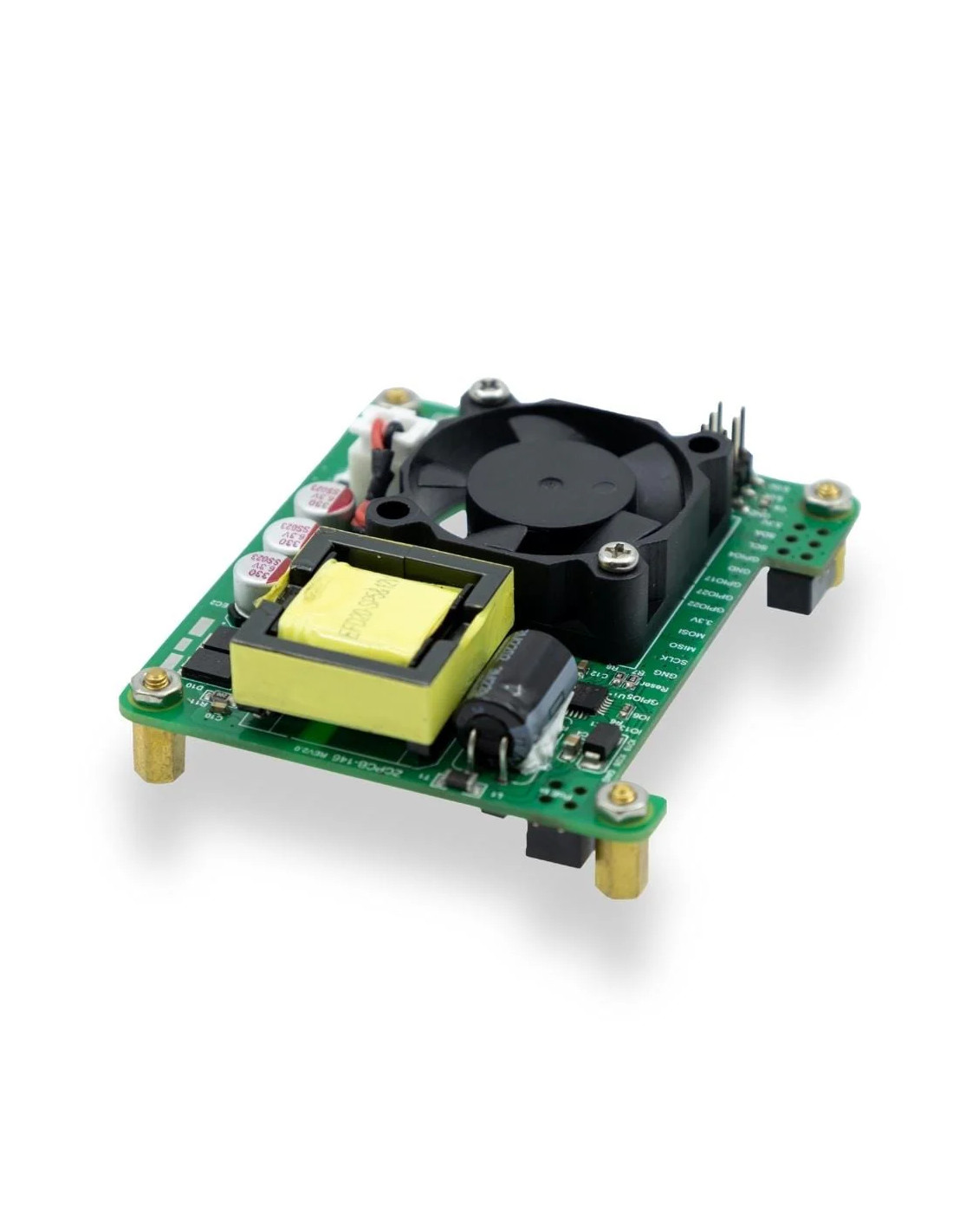

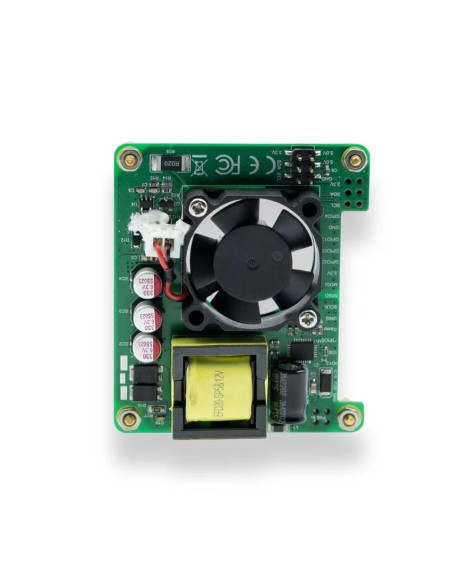

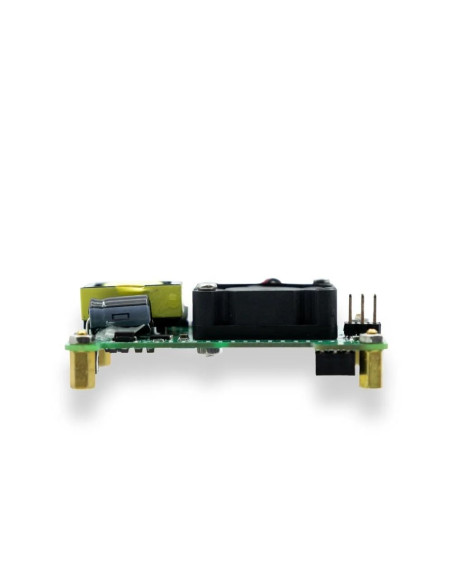

GAT-PiHat PoE Texas 802.3at 20W Isolated HAT for Raspberry Pi 3 B+ / 4

Generic
GAT-PiHAT
In Stock
$42.90
Tax included

GAT-PiHAT

This PoE-World device provides an efficient solution for delivering power to a Raspberry Pi 5 over 328ft of network cable. This device allows power to be carried on 10/100/1000 networks with either 802.3af or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable. Intended for use with Cisco or similar PoE switches – this active PoE solution negotiates with the switch to activate power and provide it to the Pi. It is a compact and cost effective power solution. The PoE switch supplies 48 or 56 volts DC at the source location. The higher DC voltage means the current is reduced by a factor of 9, and then carried with less loss over the cable. This PoE to 5 volt converter allows you to operate the Pi up to 328ft or 100 meters from a power source.

The form factor is ideal for a Pi case. are available for GPIO and serial use. The connector pins The Fan is installed The 20 watts is plenty of power for your applications.

Related Products & Accessories



GAT-PiHAT 802.3at Isolated 20W PoE HAT for Raspberry Pi

Product Specifications:

Isolated Data to powered device All 4 pairs are active for data 1 & 2 and 3&6- either Polarity
Power Input Pins 802.3af (mode A or mode B) 4&5 (+)
7&8 (–)
PoE Standard 802.3af Class
Input Voltage Range 44 to 57 Volts
Input Current at 48V 265 mA input delivery 2 amps out
Output Voltage Max load (5v10w) 5V ±2% at 4 Amps 20 watts
Operating Temperature 0°C to 50°C
Size 65 x 39 x 11 mm (height from top of Pi pins)
Isolation 3000 Volts Isolation from PoE Side to DC Output
Isolation Class Class 5 – 20 Watts Max

Device Type
Power Over Ethernet
GAT-PiHat
No reviews

Related Products & Accessories

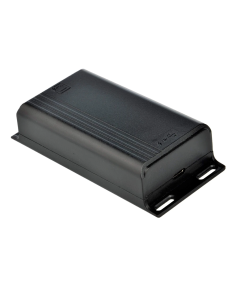

GAT-USBC-PD-R2V2 POE+ to USB Type C Power + Data Delivery With 25 Watt Output
Last items in stock
Power Management

GAT-USBC-PD-R2V2 POE+ to USB Type C Power + Data Delivery With 25 Watt Output

Generic
GAT-USBC-PD-R2V2
$191.40
GAT-USBC-PD-R2V2 PoE+ to USB Type C Power and Data Delivery solution specific for Google Pixel, Microsoft Surface Go, and Samsung Galaxy Tab*!CompatibilitySelect from the Drop Down OptionsFor Microsoft Surface Go• Works with Microsoft Surface Go, Google Pixel & Samsung Galaxy Tab Active 2* Samsung Tab compatibility may vary. 2020 Tab A7 SMT500 models...

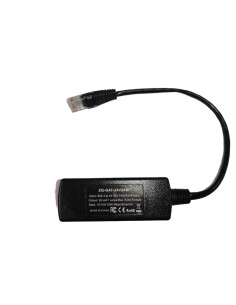

GAT-24V24W Gigabit 802.3af/at 44V-56V to 24V 1A 24W PoE Converter
*** Out of stock ATM, Available On Backorder ***
Power Over Ethernet

GAT-24V24W Gigabit 802.3af/at 44V-56V to 24V 1A 24W PoE Converter

Generic
GAT-24V24W
$26.40
GAT-24V24W This device lets you use any 48V PoE source (including Passive PoE, Telecom PoE, 802.3af and 802.3at) to power RouterBOARD, UBNT, MTK, devices. Simply plug any 48V PoE powered ethernet cable into one port, and any 8-30V capable RouterBOARD, UBNT, MikroTik device into the other. This device is capable to provide high power output - up to 15W....

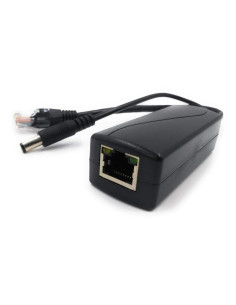

GAF-12V12W PoE 12V 802.3af Splitter - Power Any 12 Volt Device such Cameras up to 328 ft
