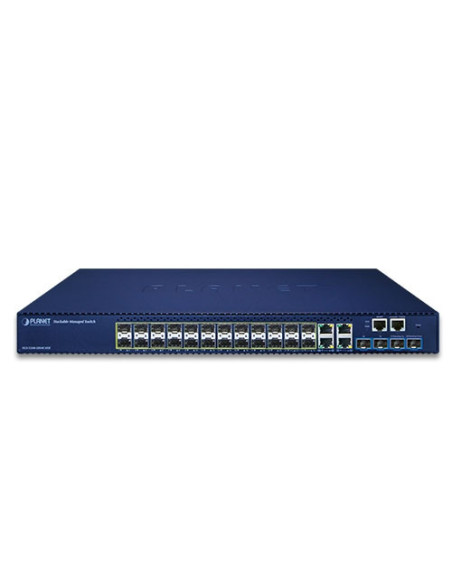

Planet SGS-5240-20S4C4XR L2+ 20-Port 100/1000X SFP + 4-Port Gb TP/SFP Combo + 4-Port 10G SFP+ Stackable Managed Switch

SGS-5240-20S4C4XR
Last items in stock
$1,213.30
Tax included

SGS-5240-20S4C4XR

High-density, Resilient Deployment Switch Solution for Gigabit Networks of Enterprises and Campuses

PLANET SGS-5240-20S4C4XR is a Layer 2+ Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing with 10Gbps uplink interfaces delivered in a rugged, strong case.



SGS-5240-20S4C4XR - PLANET Layer 2+ 20-Port 100/1000X SFP + 4-Port Gigabit TP/SFP Combo + 4-Port 10G SFP+ Stackable Managed Switch with 48V redundant power

The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 128 Gbps switching fabric, the SGS-5240 series can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for ISP and enterprise VoIP, video streaming, and multicast applications.

High Reliability Hardware Stacking

Two of the 10G SFP+ ports are used to connect several SGS-5240 series, enabling to build a virtually logical facility. The SGS-5240 series gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The SGS-5240 series can be connected as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

Central IP Stacking Management

Positioned as the distribution or aggregation layer switch for large networks, the SGS-5240 series supports IP stacking function that helps network managers to easily configure up to 16 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP Stacking technology groups PLANET SGS-5240 switch series together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network.

High Performance 10Gbps Ethernet Capacity

The four SFP+ slots built in the SGS-5240 series support dual speed and 10GBASE-SR/LR or 1000BASE-SX/LX. With its 4 ports, 10Gbps and 1Gbps Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The SGS-5240 Series provides broad bandwidth and powerful processing capacity.

Redundant Ring, Fast Recovery for Critical Network Applications

The SGS-5240 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation.

Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The SGS-5240 series supports IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

Strong Multicast

The SGS-5240 series supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detection functions, the SGS-5240 series provides great application experience for customers.

Robust Layer 2 Features

The SGS-5240 series can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol and bandwidth control. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the SGS-5240 series allows the operation of a high-speed trunk combined with multiple ports.

Powerful Network Security

The SGS-5240 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based, MAC-based and web-based user and device authentications.

Advanced IP Network Protection

The SGS-5240 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Efficient and Secure Management

For efficient management, the SGS-5240 series is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the SGS-5240 series offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the SGS-5240 series offers secure remote management by supporting SSHv2 and SSLv3 connection which encrypts the packet content at each session.

Intelligent SFP Diagnosis Mechanism

The SGS-5240 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

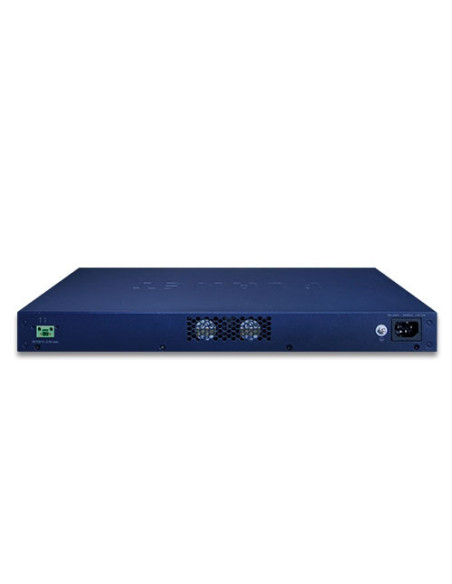

Redundant AC/DC Power Supply to Ensure Continuous Operation

The SGS-5240-20S4C4XR is particularly equipped with one 100~240V AC power supply unit and one 36~75V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~75V DC power supply, the SGS-5240-20S4C4XR is able to act as a telecom-level device that can be located in the electronic room.

High Availability Mesh Networking Solution for Big Data System

By means of improving the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the SGS-5240 series offers up to 128/176Gbps data exchange speed via Optical Fiber interface and the transmission distance can be extended to 120km.

The SGS-5240 series features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree by VLAN) into customer’s automation network to enhance system reliability and uptime. The SGS-5240 series is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

Excellent Solution to Core/Data Center Security and QoS Switch

The SGS-5240 series performs 128/176Gbps non-blocking switch fabric so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the four built-in SFP+ ports, the SGS-5240 series provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.

Layer 3 VLAN Routing

With the built-in Layer 3 static routing capability, the SGS-5240 series ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The SGS-5240 series is certainly a cost-effective and ideal solution for enterprises.

Hardware Specifications
10/100/1000BASE-T RJ45 Ports 4, shared with Port-21 to Port-24
1000BASE-X SFP Slots 24 1000BASE-SX/LX/BX SFP interfaces
Compatible with 100BASE-FX SFP transceiver
10GBASE-X SFP+ Slots 4 10GBASE-SR/LR SFP+ interfaces
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
CPU ARM A9 800MHz
RAM 512Mbytes
Flash Memory 64Mbytes
Dimensions (W x D x H) 440 x 280 x 44 mm
Weight 3.3 kg
Power Consumption 43W/146.72 BTU
Power Requirements - AC AC 100~240V, 50/60Hz
Power Requirements - DC DC 36~72V, 2.5A max.
Fan 2
Switching
Switch Architecture Store-and-forward
Switch Fabric 128Gbps/
non-blocking
Switch Throughput 95.23Mpps
Address Table 16K MAC address table with auto learning function
ARP Table 1024
ACL Table 900
Shared Data Buffer 1.5MB
Jumbo Frame 9KB
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Layer 3 Functions
IP Interfaces Max. 32 VLAN interfaces
Routing Table IPv4 256 entries
IPv6 128 entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port loopback detect
Port Status Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
VLAN IEEE 802.1Q tagged based VLAN, up to 4K VLAN groups
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling
IEEE 802.1v Protocol-based VLAN
Port-based VLAN
MAC-based VLAN
IP Subnet-based VLAN
Voice VLAN
GVRP for VLAN management, up to 256 VLAN
Port Mirroring TX/RX/Both
Remote port mirror (RSPAN)
Many-to-1 monitor
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
BPDU Guard, BPDU filtering and BPDU transparent
Root Guard
STP-based loopback detection
Multicast IPv4 IGMP v1/v2/v3 snooping
IPv4 Querier mode support
IGMP Filtering and IGMP Throttling
IGMP Proxy reporting
IGMP mroute-forward mode
Up to 255 multicast groups
IPv6 MLD v1/v2 snooping
Up to 255 multicast groups
Multicast VLAN Register (MVR), supports 5 multicast VLANs
Link Aggregation IEEE 802.3ad Ling Aggregation Control Protocol (LACP)
Static trunk link aggregation
Supports 26 groups with 8 ports per trunk group
Up to 80Gbps bandwidth (full duplex mode)
Load Balance Algorithm:
- Source IP/destination IP/Source + destination IP
- Source MAC/destination MAC/Source + destination MAC
Storm Control Broadcast/Multicast/Unicast storm control
Rate: 64Kbpss-10,000Mbps
Bandwidth Control Input/Output/Both
Per port bandwidth control
Gigabit port: 64Kbpss-1,000Mbps
10Gigabit port: 64Kbpss-10,000Mbps
QoS 8 priority queues on all switch ports
Scheduling for priority queues
- Weighted Round Robin (WRR)
- Strict priority
- Hybrid (DRR/WRR + strict)
Traffic classification:
- IEEE 802.1p CoS/DSCP/IP Precedence
- VLAN ID
- ACL
- Policy-based ingress and egress QoS
Ring ITUT G.8032 ERPS v1 and v2
Security Functions
Access Control List Supports Standard and Expanded ACL
- IP-based ACL
- MAC-based ACL
- ARP ACL
- Time-based ACL
ACL based on:
- MAC Address
- IPv4/IPv6 IP Address
- Ethertype
- Protocol-number/UDP
- sport/dport
- DSCP
- 802.1p Priority
Up to 900 entries
Security Port security
Supports static MAC + port binding
Defend against DoS or TCP attacks
DHCP Snooping, DHCP Option 82
IP source guard
Dynamic ARP inspection
Command line authority control based on user levels
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Web authentication
Local/RADIUS authentication
Management Functions
System Configuration Console and Telnet
Web browser
SNMP v1, v2c
Secure Management Interfaces IPv4/IPv6 SSHv2, SSLv3, SNMPv3
Maximum 8 sessions for SSH and telnet connection
System Management IPv4 and IPv6 dual stack management
SNMP MIB and TRAP
SNMP RMON 1, 2, 3, 9 four groups
Firmware upgrade by HTTP/TFTP/FTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP/FTP protocol
Supports dual images and multiple configuration files
Supports IEEE 802.1ab LLDP protocol
NTP/SNTP client
RADIUS authentication for IPv4/IPv6 login user name and password
Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Event Management Remote Syslog
System log
SMTP
IP Clustering 16 members

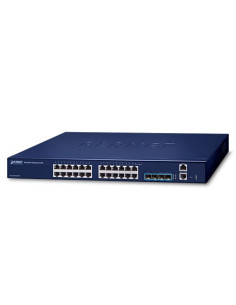

IP Clustering Compatibility List SGS-5240-24T4X
SGS-5240-24P4X
SGS-5240-20S4C4XR
SGS-5240-48T4X
Hardware Stacking 6 members max.
Last 2 10G SFP+ slots are functioned as Stacking Up and Down interfaces
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standard Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling
IEEE 802.1v Protocol-based VLAN
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
ITU-T G.8032 ERPS Ring
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Device Type
Network Switch
Device Features
Redundant Power
TAA Compliant
SFP Ports
24
SFP+ Ports
4
Power Input
AC
DC
Ports
24 100/1000X SFP + 4 10G SFP+ Shared 4 10/100/1000T
Type
Managed
Operating Temperature
0 to 50°C
Throughput
95.23Mpps
Max. Power Consumption
43W/146.72BTU
4711605285391
SGS-5240-20S4C4XR
