PLANET LRE-101C 1-Port 10/100TX over Coaxial Long Reach Ethernet Extender
Easy Connection to Ethernet over Coaxial Extender
To fulfill the needs of long distance Ethernet over Coaxial applications, PLANET Technology offers a new-generation Ethernet over Coaxial Converter, LRE-101C. It features 1 10/100 BASE-T RJ45 port and 1 BNC female connector with a compact-sized metal housing, making the placement of the unit convenient. Working well with a pervasive coaxial network, the LRE-101C provides a total duplex data rate of 100Mbps which can extend a maximum distance of up to 2km and expand a small network by using the point-to-multi-point topology. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable to another 100-meter UTP cable for any type of IP network device such as HD IP camera, wireless access point, NVR and digital signage.
LRE-101C - PLANET 1-Port 10/100TX over Coaxial Long Reach Ethernet Extender
IP Ethernet over Long Distance Existing Coaxial Cables
PLANET LRE-101C is a Long Reach Ethernet (LRE) solution which provides a quick replacement and smooth migration solution from the existing analog system to a full digital system. A normal UTP cable can only be extended to up to 100 meters, but with the LRE-101C, the distance for Ethernet networking can be extended to up to 2000 meters (6561ft.), which is ideal for the following network applications:
- Long-distance IP network devices
- IP digital signage
- Cable TV to IPTV
- Distance video education
- Electronic billboards
- Other applications
If you have coaxial cable in your existing environment, you can install a pair of the LRE-101C very simply without the need to build additional network wires, thus saving costs for network construction.
Easy and Flexible Installation

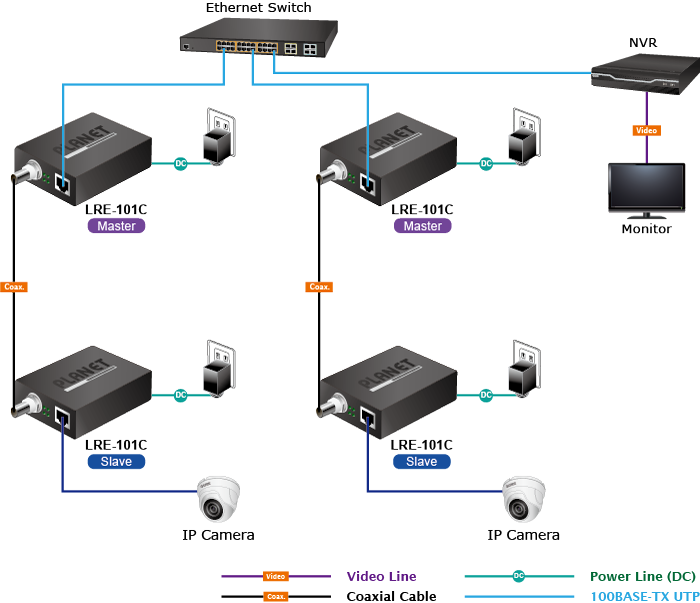

The LRE-101C offers two operation modes, the client-side “Slave “and central-side “Master”, making any network applications easy and flexible. The “Slave” or “Master” mode can be adjusted by using the built-in DIP switch. For point-to-point connection, one LRE-101C in “Slave” mode and the other one in “Master” mode must be set up as a pair of converters to perform the connection. This enables the administrator to efficiently manage the network over UTP cable, making long-distance transmission better.
Daisy-chaining Multiple Nodes

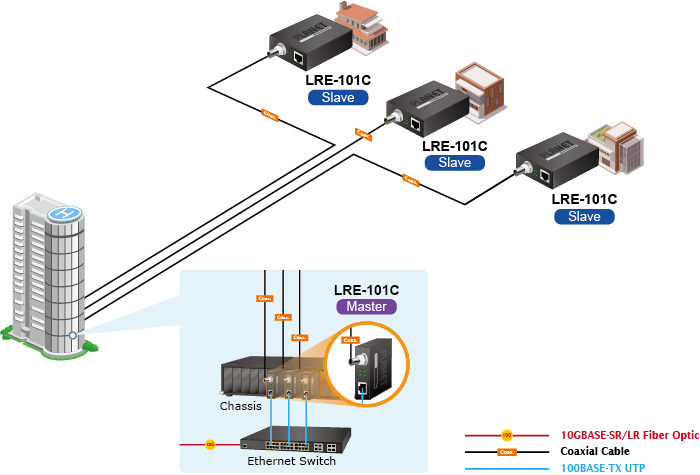

PLANET LRE-101C will give users the flexibility to expand a small area network with BNC T-connector for sharing four nodes per port when needed.
Low Power Consumption
The LRE-101C has a low power consumption of only 1.5 watts when in full operation.
Easy Chassis Installation

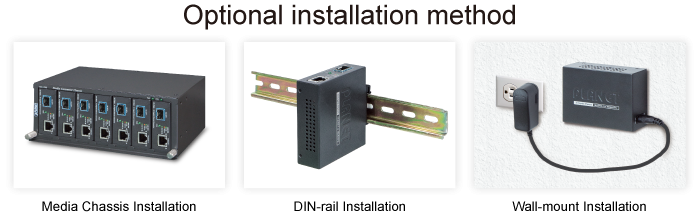

The LRE-101C Long Reach Ethernet Extender can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700 and MC-1500 chassis series). The media chassis can assist in providing DC power to LRE-101C.It can be DIN-rail or wall mounted for efficient use of cabinet space.
Point-to-Point Application -- LAN to LAN Connection

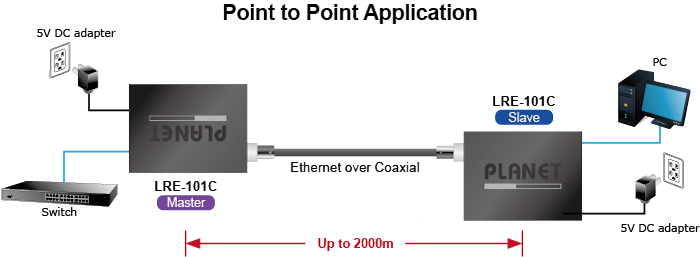

One set of the LRE-101C Extender could be used to link two local area networks that are located in different places. Through the coaxial cable, it could set up a 100Mbps backbone, but one must be Master (CO mode) and the other one is Slave (CPE mode).
Community/Campus Surveillance and Security over IP

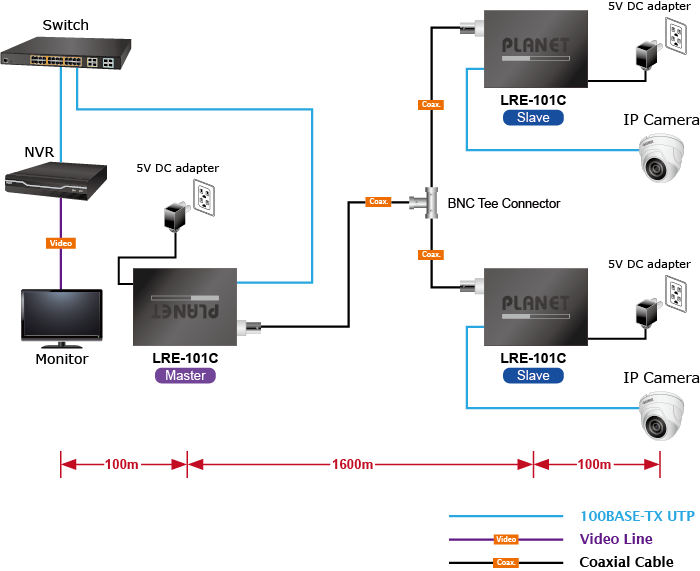

To take advantage of digital surveillance system and keep the benefits of coaxial cable, the LRE-101C helps the communities, campuses and enterprises to upgrade analog camera system to IP camera surveillance without using additional new wires. The LRE-101C is a switching architecture with one RJ45 port and one BNC Ethernet over Coaxial port. Just plug in the UTP cable of IP camera to Ethernet port and the existing coaxial cable to the BNC connector to easily deploy and extend the distance with signal conversion by transmitting the Ethernet data from the standard coaxial cable.

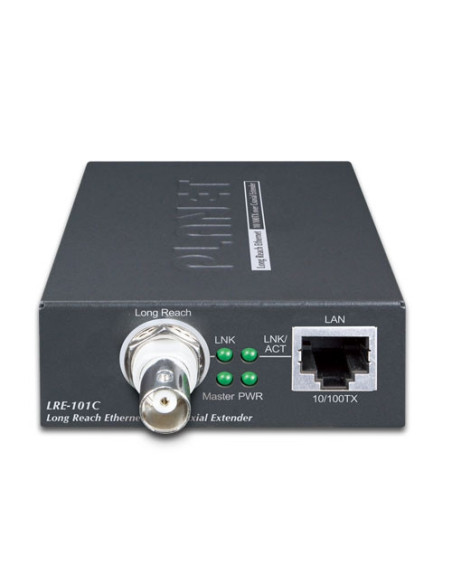

|LAN Ethernet interface||1 10/100BASE-TX RJ45 Copper port, auto-negotiation / auto-MDI/MDI-X
Cabling：Cat5e UTP or above
Maximum Distance：100 meters
Maximum Frame Size：1522 bytes
|Long Reach Interface||1 BNC female Ethernet over Coaxial
Cabling Coaxial cable: 75 ohm：
RG-6/U cable, less than12Ω/1000 ft.
RG-59/U cable, less than 30Ω/1000 ft.
Maximum Distance：Max. 2000 with data transmission (6,561ft.)
Long Reach Ethernet Standard：IEEE 1901
Security：128-bit AES encryption

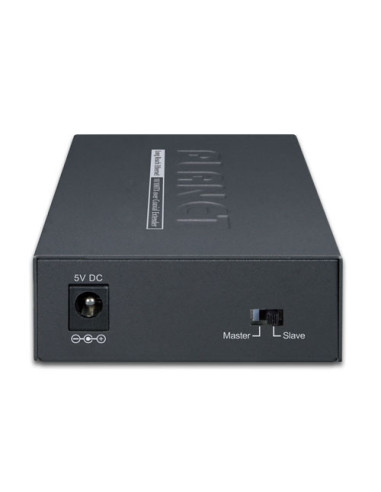

|Functionality||DIP Switch：Select Master or Slave mode|
|Dimensions (W x D x H)||97 x 70.3 x 26 mm|
|Power Requirement||5V DC, 2A external power|
|LED Indicators||Power: Green
LAN: Green, 10/100Mbps LNK/ACT
Long Reach: Green, LNK/ACT
|Standards Compliance||IEEE 802.3/ 802.3u Ethernet standard compliant
IEEE 802.3x Full-duplex flow control
IEEE 802.1q Tag VLAN Transparent, Multicast pass-through
|Regulatory Compliance||FCC Part 15 Class A, CE|
|Temperature||Operating: 0~50 degrees C
Storage: -10~70 degrees C
|Humidity||Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
