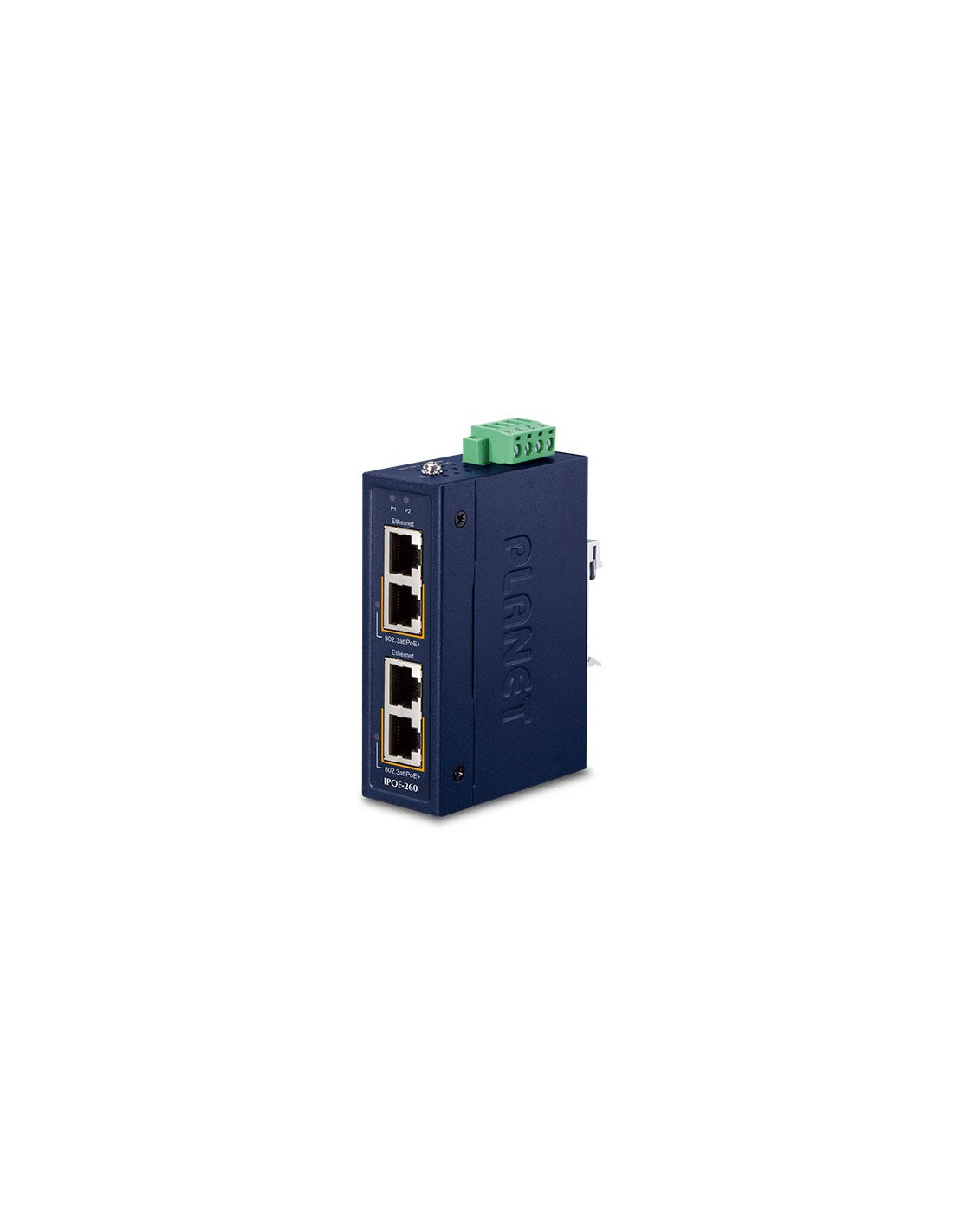

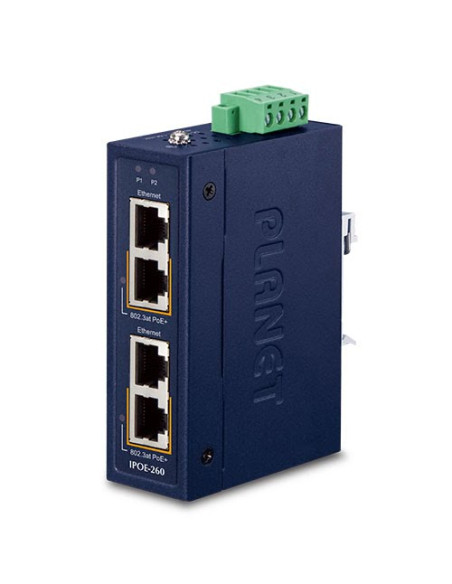

PLANET Industrial 2-Port 802.3at PoE Injector Hub w/ 12V Booster
PLANET Industrial 2-Port 802.3at PoE Injector Hub w/ 12V Booster

Planet IPOE-260-12V Industrial 2-Port 802.3at PoE + Injector Hub w/ 12V Booster

IPOE-260-12V
Last items in stock
$181.51
Tax included

IPOE-260-12 Industrial 2-Port 802.3at PoE Injector Hub 12V Boost

The IPOE-260-12V from PLANET Technology is an advanced industrial 802.3at PoE+ network solution that provides a maximum of 36W of power output over Ethernet cables up to 100m in distance with 12V booster. This model adopts 12~54VDC to 54V power boost technology to solve the power source issue without requiring special power supplies.

  • Redundant power with reverse polarity protection
  • Power requirements: 12~56V DC
  • Power consumption: Max. 4W power on / 80W full PoE load
  • PoE power budget: 60W @ 12~23V DC / 72W @ 24~56V DC
  • PoE power output: max. 56V DC 36W per port

Quantity Unit price You Save
4 $176.07 $21.78

Related Products & Accessories



PLANET Industrial 2-Port 802.3at PoE Injector Hub w/ 12V BoosterIPOE-260-12V - PLANET Industrial 2-Port 802.3at PoE Injector Hub w/ 12V Booster

PLANET IPOE-260-12V Industrial 2-Port 802.3at PoE Injector Hub w/ 12V Booster

Device Type
Power Over Ethernet
Device Features
Industrial
TAA Compliant
PoE Standard
802.3at PoE+
Operating Temperature
-40 to 75° C
Interface
2 Data In, 2 PoE Out, 1 Power Terminal Block
Ethernet Data Rate
10/100/1000Mbps
PoE Power Output
54V DC @ 36W
4711605284769
IPOE-260-12V
