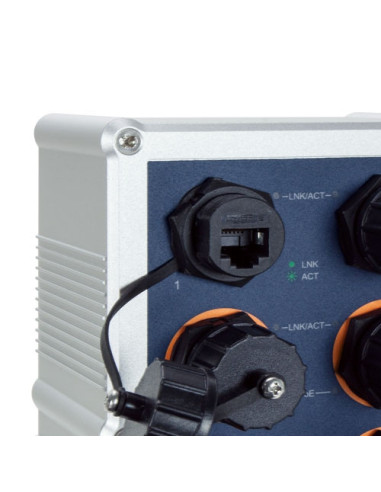

PLANET IGS-604HPT-RJ Industrial IP67 4-Port 30W 802.3at PoE + 2-Port RJ45 Managed Gigabit Switch
PLANET Industrial IP67 4-Port 30W 802.3at PoE + 2-Port RJ45 Managed Gigabit Switch
PLANET IGS-604HPT-RJ Industrial IP67 4-Port 30W 802.3at PoE + 2-Port RJ45 Managed Gigabit Switch
PLANET Industrial IP67 4-Port 30W 802.3at PoE + 2-Port RJ45 Managed Gigabit Switch

PLANET Industrial IP67 4-Port 30W 802.3at PoE + 2-Port RJ45 Managed Gigabit Switch

IGS-604HPT-RJ
Currently unavailable, please confirm ETA
$499.00
Tax included

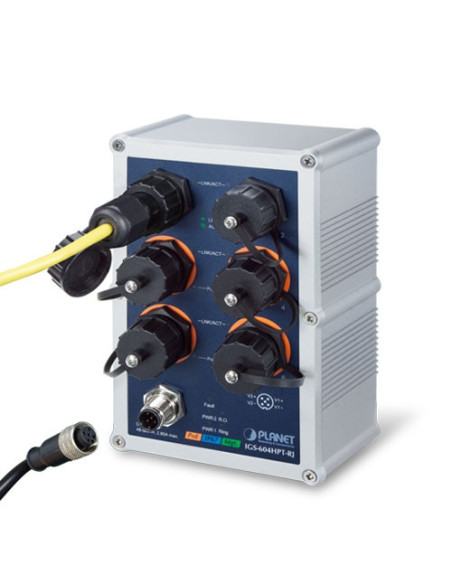

The IGS-604HPT-RJ from PLANET Technology is a Modbus TCP managed Gigabit Ethernet switch with (4) 10/100/1000T 802.3at PoE ports, (2) 10/100/1000T ports and static Layer 3 routing. This device offers a high level of immunity against electromagnetic interference and heavy electrical surges and can be easily mounted on a DIN rail or wall. The IGS-604HPT-RJ is dust resistant and water resistant and operates in harsh environments with temperatures ranging from -40 to +75C.

PLANET IGS-604HPT-RJ Key Features

  • Ports: 6x 10/100/1000TX
  • Console Port: No
  • Power over Ethernet ports: 4
  • Max. PoE per port: 36W
  • PoE Standard: 802.3af/at
  • Type: Managed
  • Operating Temperature: -40 to 75C
  • Supports: IEEE 1588v2 Transparency, ERPS Ring, DIDO



IGS-604HPT-RJ industrial waterproof poe managed switch

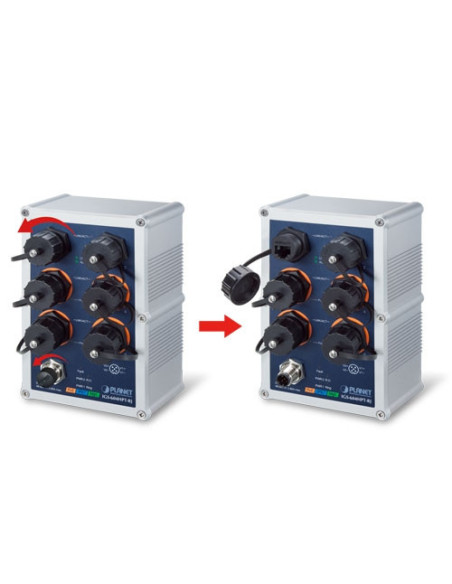

  • 6-port 10/100/1000BASE-T waterproof and dustproof RJ45 copper with 4-port IEEE 802.3at/af Power over Ethernet Injector function


Hardware Conformance

  • Complies with IEEE 802.3at High Power over Ethernet end-span PSE
  • Complies with IEEE 802.3af Power over Ethernet end-span PSE
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE Management
  • - Total PoE power budget control- Per port PoE function enable/disable- PoE Port Power feeding priority- Per PoE port power limitation- PD classification detection- PD alive check- PoE schedule- PD scheduled power recycling


Hardware Conformance

        • IP67-rated aluminum case
        • Redundant power design

48

           to

56V

     DC, redundant power with polarity reverse protect function- Active-active redundant power failure protection- Backup of catastrophic power failure on one supply- Fault tolerance and resilience
  • DIN-rail and wall-mount design
  • Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature


Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization


Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
  • Storm control support
  • - Broadcast/Multicast/Unicast
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- IP subnet-based VLAN- Voice VLAN
  • Supports Spanning Tree Protocol
  • - STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard
  • Supports Link Aggregation
  • - 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 3 trunk groups, with 2 ports for each trunk- Up to 4Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring monitors the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports E.R.P.S. (Ethernet Ring Protection Switching)
  • IEEE 1588 and Synchronous Ethernet network timing


Quality of Service

  • Ingress shaper and egress rate limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • - IEEE 802.1p CoS- ToS/DSCP/IP precedence of IPv4/IPv6 packets- IP TCP/UDP port number- Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing policies on the switch port
  • DSCP remarking


Multicast

  • Supports IGMP snooping v1, v2 and v3
  • Supports MLD snooping v1 and v2
  • Querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • MVR (Multicast VLAN Registration)


Security

  • Authentication
  • - IEEE 802.1x port-based/MAC-based network access authentication- IEEE 802.1x authentication with guest VLAN- Built-in RADIUS client to cooperate with the RADIUS servers- RADIUS/TACACS+ users access authentication
  • Access Control List
  • - IP-based Access Control List (ACL)- MAC-based Access Control List (ACL)
  • Source MAC/IP address binding
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder


Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
  • - Telnet command line interface- Web switch management- SNMP v1, v2c, and v3 switch management- SSH/SSL secure access
  • IPv6 address/NTP management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
  • - Firmware upload/download via HTTP/TFTP- Reset button for system reboot or reset to factory default- Dual images
  • DHCP relay and option 82
  • User privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network diagnostic
  • - Cable diagnostic technology provides the mechanism to detect and report potential cabling issues- ICMPv6/ICMPv4 remote ping
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface link up and link down notification
  • System Log
  • PLANET Smart Discovery Utility for deployment management

Device Features
Managed, Industrial
Device Type
Network Switch, Power Over Ethernet
POE Ports
4, 4
Power Input
DC
Power Over Ethernet
48V 30W 802.3at, 48V 15W 802.3af
Environment Temperature
-40℃~75℃
No reviews
Hardware Specifications
Copper Ports 6 10/100/1000BASE-T waterproof and dustproof RJ45 auto-MDI/MDI-X ports
PoE Injector Port 4 ports with 802.3at/af PoE injector function (Port-3 to Port-6)
Switch Architecture Store-and-Forward
Switch Fabric 12Gbps/non-blocking
Throughput 8.9Mpps@64bytes
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 103 x 68.3 x 163 mm
Weight 1069g
LED System:
DC1 (Green), DC2 (Green), Fault (Red)
Ring (Green), R.O. (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 2):
LNK/ACT (Green)
10/100/1000T RJ45 Interfaces (Port 3 to Port 6):
LNK/ACT (Green)
PoE-in-Use (Orange)
Power Consumption Max. 160 watts/545.9 BTU
Power Requirements Dual 48~56V DC (>53V DC for PoE+ output recommended)
EFT Protection 6KV DC
ESD Protection 6KV DC
PoE Standard IEEE 802.3af/802.3at PoE/PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
– Per port 48V~53V DC (depending on the power supply), max. 15.4 wattsIEEE 802.3at Standard
– Per port 53V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 144 watts max. (depending on power input)
PoE Ability PD @ 7 watts: 4 units
PD @ 15.4 watts: 4 units
PD @ 30.8 watts: 4 units
Layer 2 Management Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status Display each ports speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
3 groups with 2 port per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS Traffic classification based, Strict priority and WRR
8-level priority for switching:
– Port number
– 802.1p priority
– 802.1Q VLAN tag
– DSCP/ToS field in IP packet
IGMP Snooping IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
Management
Basic Management Interfaces Telnet/Web browser/SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
