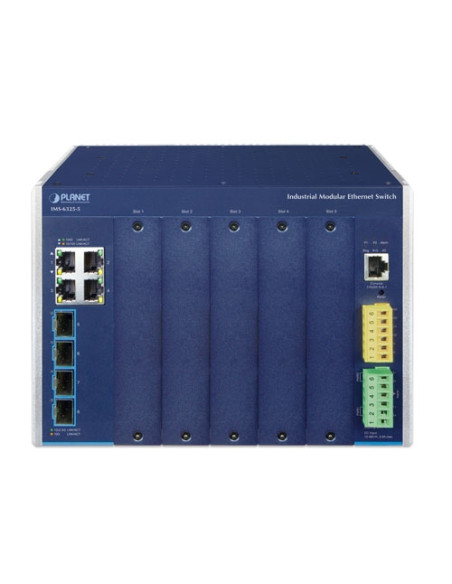

Planet IMS-6325-5,Industrial Modular Managed Ethernet Switch.

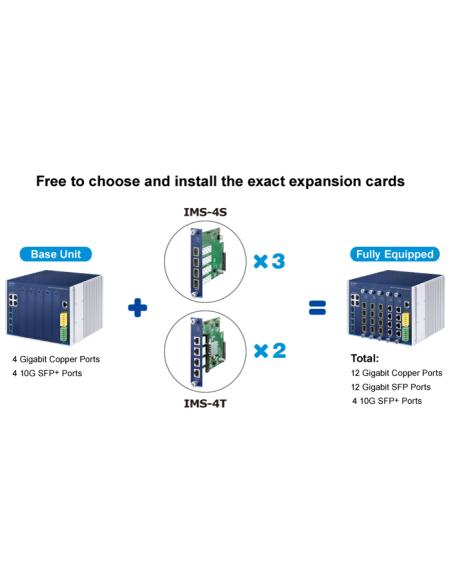

Seamless Network Expansion with Modular Flexibility
The IMS-6325-5’s modular design offers unmatched flexibility, allowing you to customize and expand your network as your needs evolve. With support for up to five modules, you can seamlessly integrate various port types, including copper and fiber, all within a single chassis. This adaptability minimizes the need for additional switches, reducing both equipment costs and installation complexity. Modules are easy to install, allowing users to quickly reconfigure their network by powering down the switch, swapping out modules, and powering it back on. Ideal for industrial environments, this modular switch future-proofs your network with lasting value and performance.
Compact and Resilient Design for Extreme Industrial Environments
Featuring a ruggedized chassis that supports both DIN-rail and wall-mount installation, the switch can be securely positioned in various industrial settings. Its compact form factor is built to withstand extreme temperatures, from -40 to 75 degrees Celsius, making it suitable for harsh environments. The IP30-rated enclosure provides robust protection against dust and debris, ensuring long-lasting performance in demanding conditions.
High-speed 10G SFP+ Ports for Advanced Connectivity
The IMS-6325-5 includes four 10G SFP+ slots on its fixed module, supporting 10GBASE-SR/LR, 2500BASE-X, and 1000BASE-SX/LX transceivers. This flexibility allows users to choose the right transceiver for specific speeds and distances, delivering broad bandwidth and high-performance connectivity. Ideal for data-intensive applications such as video surveillance and data centers, these ports enable efficient network scaling and ensure a robust, adaptable infrastructure for demanding environments.
Robust Layer 2 Features
The IMS-6325-5 offers a robust suite of Layer 2 features designed to enhance network efficiency and control. It supports VLAN tagging with 802.1Q, allowing for secure and segmented traffic within the network, along with advanced VLAN types like Q-in-Q tunneling and MAC-based VLAN. For traffic management, the switch provides Link Aggregation for increased bandwidth and reliability, as well as advanced Quality of Service (QoS) capabilities, including traffic prioritization and rate limiting on a per-port basis. Additionally, it includes Spanning Tree Protocols (STP, RSTP, and MSTP) to prevent network loops and ensure stability, making it ideal for complex industrial networks.
IPv6/IPv4 Dual Stack
The IMS-6325-5’s IPv6/IPv4 dual stack support ensures compatibility with both legacy and modern IP networks, providing a future-proof solution for evolving network infrastructures. By supporting IPv6 alongside IPv4, it enables smooth transitions and robust network performance, adapting easily to diverse protocol requirements and facilitating long-term scalability.
Advanced Layer 3 Routing Support
The IMS-6325-5 includes comprehensive Layer 3 features, supporting both IPv4 OSPFv2 and RIPv1/v2, as well as IPv6 OSPFv3 dynamic routing protocols. This enables efficient traffic management and flexible network routing across diverse environments. With the capability for up to 128 VLAN interfaces and 4K routing entries, the switch supports seamless inter-network communication and optimized data flow. These features make it well-suited for industrial networks requiring advanced routing capabilities, accommodating both IPv4 and IPv6 protocols for long-term scalability and adaptability.
Comprehensive Cybersecurity for Secure and Controlled Network Access
The IMS-6325-5’s cybersecurity features are designed to ensure comprehensive network protection and secure management. It includes advanced Access Control Lists (ACLs) supporting Layers 2, 3, and 4, allowing for precise traffic filtering based on MAC addresses, IP addresses, and protocols. The switch also supports IEEE 802.1X port-based authentication, IP-MAC port binding, and MAC filtering for enhanced access control. Additionally, with secure management interfaces such as SSHv2, TLSv1.2, and SNMPv3, the switch provides encrypted communication and robust management security. These features make the IMS-6325-5 a reliable choice for safeguarding industrial networks.
Proactive Fault Alarm for Enhanced Network Reliability
The IMS-6325-5’s Fault Alarm feature enhances reliability by monitoring power and port failures. This relay alarm system triggers alerts when issues occur, enabling swift troubleshooting and minimizing downtime. Configurable through software, the Fault Alarm ensures timely notifications, making the IMS-6325-5 ideal for mission-critical environments requiring continuous operation.
Integrated DI and DO for Enhanced Monitoring and Automation
The IMS-6325-5 features DI and DO capabilities, which enable seamless integration with external devices for enhanced monitoring and control. The two DI ports can connect to sensors or other equipment to monitor external conditions, such as door status or alarm systems. The two DO ports allow the switch to send control signals to external devices, such as activating alarms or signaling other equipment in response to specific events. The DI and DO functionalities make the IMS-6325-5 highly adaptable for industrial applications, enabling automated responses and improved overall system management.
Modbus TCP Provides Flexible Network Connectivity for Factory Automation
With the supported Modbus TCP/IP protocol, the IMS-6325-5 can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.
Accurate Time Synchronization with IEEE 1588v2 PTP Support
The IMS-6325-5 supports IEEE 1588v2 Precision Time Protocol (PTP) for precise time synchronization, essential in industries like automation and telecom. It operates as a boundary clock, transparent clock, PTP master, or slave, ensuring accurate timing across devices. This capability enhances efficiency and supports real-time applications that rely on synchronized data.
Comprehensive and Secure Management Interface Options
For efficient management, the IMS-6325-5 is equipped with console, web, and SNMP management interfaces.
- With a built-in web-based management interface, the IMS-6325-5 provides an intuitive, platform-independent facility for easy configuration and monitoring.
- For text-based management, it can be accessed via Telnet and the console port.
- For secure, standards-based monitoring and management, it supports SNMPv1, v2c, and SNMPv3, with SNMPv3 providing encrypted sessions for safe remote management.
- Secure access is further enhanced with support for SSHv2 and TLSv1.2, protecting against unauthorized access and ensuring data integrity.
Centralized Remote Management
The IMS-6325-5 leverages PLANET’s Universal Network Management System (UNI-NMS) and CloudViewerPro app for a centralized, remote management of network devices. These tools allow IT teams to monitor operational statuses and manage networks from a single, unified platform, eliminating the need for on-site visits when issues arise. Designed for both enterprise and industrial environments, UNI-NMS and CloudViewerPro offer a centralized solution that streamlines network oversight, enabling businesses to efficiently address issues and maintain network performance across diverse and remote deployments.
