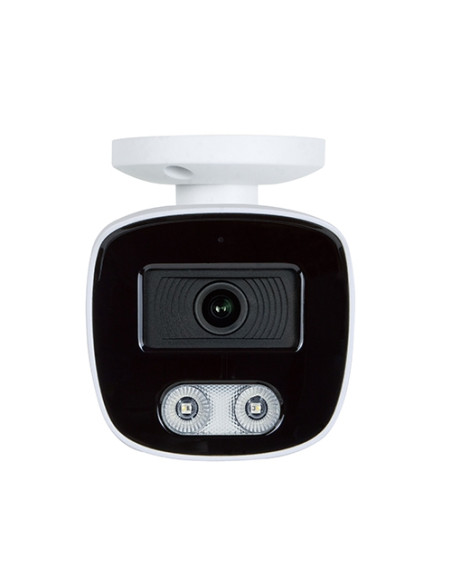

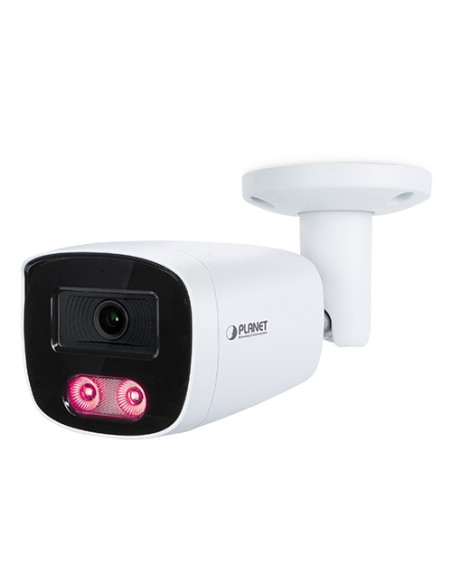

Planet ICA-3880, H.265+ 8MP Full Color Smart IR Bullet IP Camera Water-resistant.

ICA-3880
*** Out of stock ATM, Available On Backorder ***
$102.00
Tax included


Advanced Media Management with Smart Detection

The ICA-3880 supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include ROI (region of interest), motion detection, 3 configurable regions of privacy mask to protect personal privacy, and video tampering function. It also comes with defog model and image adjustment options, newly-added anti-overexposure protection function and three white balance modes. For enhanced security, it also features Intrusion Detection (based on human and vehicle detection) and Motion Detection (based on human detection).

With more user-friendly GUI interface that allows users to better monitor, the ICA-3880 supports IPv6, QoS and IEEE 802.1x functions. Newly-added secure email for password reset and email encryption protocol now can support TLS.



Flexible Installation and Power Functionality

Powered from a PoE power sourcing equipment such as 802.3af/at PoE switch or 802.3af/at PoE injector over a network cable, the ICA-3880, adopting the IEEE 802.3af/at standard, does not need extra power cables and manpower, thus reducing installation costs while increasing deployment flexibility and scalability. The ICA-3880 is ONVIF compliant and interoperable with other brands in the market, making it an indisputably ideal choice for reliable and high-performance surveillance.

Scheduled Power Rebooting

The ICA-3880 can be scheduled to reboot at a specified time like every minute, every hour, every week or every month to reduce the chance of crash resulting from buffer overflow.

Remote Access via Mobile App, Web Browser or PVMS

Remote management makes you easy to set the configuration and live viewing via Mobile app, NVR, HDVR, and Web browser. Besides, the ICA-3880 provides central surveillance management capability with the adoption of its bundled PLANET Video Management Software. With the PVMS, the ICA-3880 is expandable for multi-sites management of up to 256-ch IP cameras simultaneously. Users are able to monitor the IP cameras anytime, anywhere.



Water-resistant and Dust-proof Protection

With a robust IP67-rated metal housing, this camera is engineered for all-weather protection against rain and dust, ensuring reliable performance in extreme conditions. Its durability makes it the perfect choice for demanding outdoor environments, including buildings, roadways, parking lots, garages, railway stations, and airports, where dependable surveillance is essential.

PRODUCT SPECIFICATIONS.

Camera
Image Sensor 1/2.7" Progressive Scan CMOS Sensor
Lens Focus Length: 4mm
Focus Control: Fixed
Lens Type: Fixed
Pixels:8MP
Angle of view:
Horizontal FOV: 87 degrees
Vertical FOV: 46 degrees
Diagonal FOV: 105 degrees
Min. Illumination 0.05 lux (color) @ F1.6
0 Lux white light, B/W: 0 Lux with IR
IR Illuminations Built-in Smart IR illuminators, effective up to 40 meters
Built-in Full color illuminators, effective up to 30 meters
*The IR distance is based on the environment.
Effective Pixels (H x V) 3840 (H) x 2160 (V)
Power over Ethernet
PoE Standard IEEE 802.3af/at PoE PD
Video Compression H.264/H.264+/H.265/H.265+/MJPEG
Video Resolution
Item Main Stream: Sub Stream:

H.264/H.264+
H.265/H.265+
3840 x 2160@20fps
3200 x 1800@20fps
2880 x 1620@20fps
1920 x 1080@30fps
1280 x 720@30fps

1280 x 720@30fps
720 x 480@30fps
352 x 288@30fps
MJPEG 1280 x 720@30fps
Frame Rate Up to 20~30 fps for all resolutions
Bitrate 32~16384kbps
Shutter Time Auto: 1/3-1/100000Sec
Image Setting Saturation/Brightness/Contrast /Sharpness, Mirror, Anti Flicker, Video Tampering, HLC
Full Color
Corridor Pattern
Color/ B&W (IR-CUT )
White Balance
Video Adjustment
Image Enhancement
Defog Model Distortion
OSD Settings
Motion detection
Video Tampering
Intrusion Detection
3 configurable regions of privacy mask to protect personal privacy
Streaming Streaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
Constant and variable bit rate
ROI (Region of Interest)
Audio
Audio Streaming Built-in mic (On-site sound recording, effective distance 3-5M)
Audio Compression G.711A/G.711U/AAC
Audio Input Built-in mic
Networking & Configuration
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af/at Power over Ethernet
Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, Qos,802.1x, P2P, Cloud
Security User Management options for various authority levels
 Admin
 Operator
 Guest
Users On-line monitoring of 7 clients at the same time
Web Brower Microsoft IE8-11, Edge, Google Chrome, Firefox
App Yes (Android, IOS with P2P QR code)
Language Chinese Simplified, Chinese Traditional, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian
System Integration
Application Programming Interface ONVIF compliant
Alarm Triggering Motion detection, video tampering and intrusion detection
Alarm Events SMTP, FTP, Cloud (Google)
Hardware Specifications
Power Requirements 12V DC, 0.7A
IEEE 802.3af/at Power over Ethernet
Power Consumption 3.5W (IR on)
4.3W (White LED on)
Dimensions (W x D x H) 70 x 169 x 67.5 mm
Weight 450g
Reset Button Yes
LED IR: 38μ x 2pcs, warm LED: 38μ x 2pcs
4000K warm LED
Connector 10/100Mbps Ethernet, waterproof/dustproof RJ45 connector
DC power jack
Enclosure IP67 metal case
Standards Conformance
Regulatory Compliance FCC Part 15 Subpart B, CE
NDAA Compliance Yes
Environment
Operating Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Power Over Ethernet
802.3af PoE
Operating Temperature
-20 to 60°C
