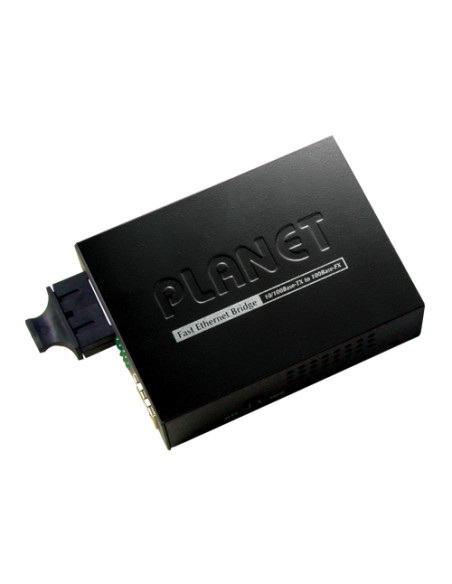

PLANET FT-802 10/100BASE-TX to 100BASE-FX Fiber Media Converter SC Multi-Mode 2km

FT-802
Last items in stock
$84.72
Tax included

FT-802

The PLANET FT-802 is a compact Fast Ethernet media converter designed to convert 10/100BASE-TX copper Ethernet signals to 100BASE-FX fiber optic connections. It enables long-distance network extensions up to 2 km over multimode fiber while maintaining reliable and stable network performance.

Key Features

    • ✓ 10/100BASE-TX to 100BASE-FX Conversion
    • ✓ Multi-mode Fiber up to 2km
    • ✓ SC Fiber Connector
    • ✓ Auto-Negotiation 10/100 Mbps
    • ✓ Link Fault Pass-Through (LFPT)
    • ✓ Standalone or Rack Mountable

    Quantity Unit price You Save
    4 $82.18 $10.17

    Related Products & Accessories



    PLANET TSN-6325-8T4S4X

    planet TSN-6325-8T4S4X




    100Base-FX Media Converter

    The FT-802 is truly innovative with the LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch feature. The unit’s LLCF/LLR notifies users the issues with the link media and offers solutions for them to manage and monitor the network. The unit’s DIP Switch allows users to enable or disable the LFP function simply. In the instance when the unit displays the LLCF (Link Loss Carry Forward), this refers to a device is connected to the FT-802. When the TP line loses the link, the fiber on the converter disconnects the transmit link. A LLR (Link Loss Return) display refers to the connection of a device to the converter. The fiber line loses the link and the converter’s fiber then disconnects the link of transmit. In both instances, users are notified immediately when there is an issue with the link media. It then offers users an efficient method to monitor the network.

    Technical Specifications:

    Specification Value
    Product Information
    Protocol IEEE 802.3 (10BASE-T)
    IEEE 802.3u (100BASE-TX)
    IEEE 802.3u (100BASE-FX)
    IEEE 802.3x Flow Control
    Dimensions (W × D × H) 94 × 70 × 26 mm
    Weight 0.2 kg
    Power Input 5V DC, 2A max.
    Power Supply AC Adapter 100–240VAC, 50–60Hz
    Enclosure Compact metal housing
    Anti-corrosion treatment
    Electrostatic paint finish
    Connectors and Cabling
    Shielded Twisted Pair RJ45, Category 5 (EIA/TIA-568)
    Fiber Optic Models FT-801 – ST / Multimode / 2km
    FT-802 – SC / Multimode / 2km
    FT-803 – MTRJ / Multimode / 2km
    FT-802S15 – SC / Single-mode / 15km
    FT-802S35 – SC / Single-mode / 35km
    FT-802S50 – SC / Single-mode / 50km
    FT-806A20 – WDM SC / Single-mode / 20km
    FT-806B20 – WDM SC / Single-mode / 20km
    FT-806A60 – WDM SC / Single-mode / 60km
    FT-806B60 – WDM SC / Single-mode / 60km
    Multimode Cable 50/125 µm, 62.5/125 µm
    Single-mode Cable 9/125 µm
    Optic Wavelength Most models: 1310nm
    WDM models: TX 1310nm / RX 1550nm or TX 1550nm / RX 1310nm
    Supported Distances
    Copper Ethernet 100 m (328 ft)
    Multimode Fiber 412 m half-duplex / 2 km full-duplex
    Single-mode Fiber 15 km, 20 km, 35 km, 50 km, or 60 km depending on model
    Port Mode TP: Half / Full duplex auto-negotiation
    FX: Half / Full duplex via DIP switch
    Environment
    Operating Temperature 0°C to 50°C
    Operating Humidity 5–90% non-condensing
    Storage Temperature -40°C to 70°C
    Certifications FCC Class A, CE Class A
