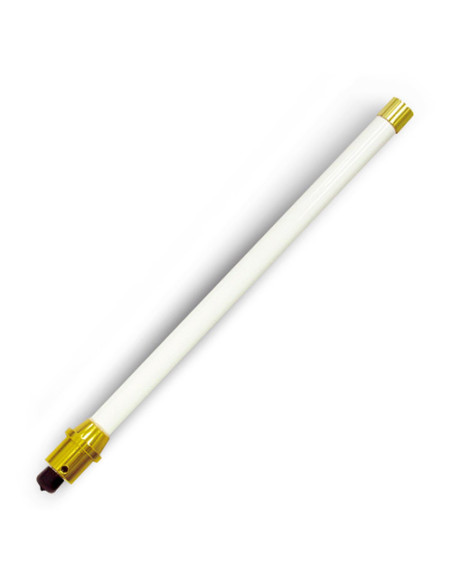

Planet ANT-OM8 8dBi 2.4GHz Omni-directional Antenna with N-Female Connector
  • New
Planet ANT-OM8 8dBi 2.4GHz Omni-directional Antenna with N-Female Connector

Planet ANT-OM8 8dBi 2.4GHz Omni-directional Antenna with N-Female Connector

ANT-OM8
Last items in stock
$60.50
Tax included

Planet ANT-OM8

The PLANET ANT-OM8 is an 8dBi omni-directional antenna designed for 2.4GHz ISM band applications. It provides a 360-degree horizontal spread and a 10-degree vertical spread for extended wireless connectivity. This antenna is suitable for installations requiring increased RF gain power to enhance wireless convergence. It supports outdoor environments and is engineered for reliable performance. The ANT-OM8 is a general-purpose antenna ideal for various wireless networking applications.


Key Features:

  • 8dBi Gain
  • Omni-directional Antenna
  • 2.4GHz Frequency
  • 360-degree Horizontal Spread
  • 10-degree Vertical Spread
  • N-female Connector
  • Operating Temperature: -40 ∼ 70 degrees C



ANT-OM8 Planet 8dBi 2.4GHz Omni-directional Antenna with N-Female Connector

The PLANET ANT-OM8 is an 8dBi omni-directional antenna specifically engineered to enhance wireless long-distance connectivity. Designed for 2.4GHz ISM band applications, it delivers a wide 360-degree horizontal spread combined with a focused 10-degree vertical spread. This antenna is an excellent choice for installations needing increased RF gain power to improve the convergence of wireless networks where more power is required.

The ANT-OM8 is equipped with an N-female connector and is suitable for outdoor environments, operating effectively within a temperature range of -40 to 70 degrees Celsius. It serves as a general-purpose antenna ideal for a diverse range of wireless networking uses, including EV charging stations, intelligent transportation systems, and smart manufacturing environments.

Product Specifications:

Product Frequency 2400-2485MHz
Antenna Type Omni-directional, General purpose
Gain (dBi) 8
SWR Beamwidth Degree Horizontal 360
SWR Beamwidth Degree Vertical 10
Mounting Type Mast mount
Operating Temperature -40 ∼ 70 degrees C
Connector N-female
ANT-OM8
