    MikroTik OmniTIK PoE ac 5GHz 7dBi Access Point

    Last items in stock
    Tax included

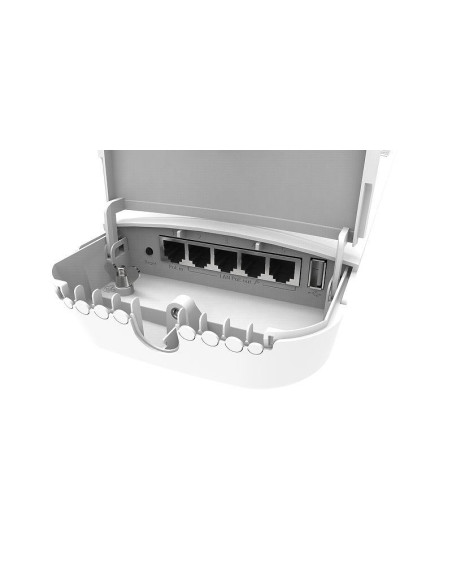

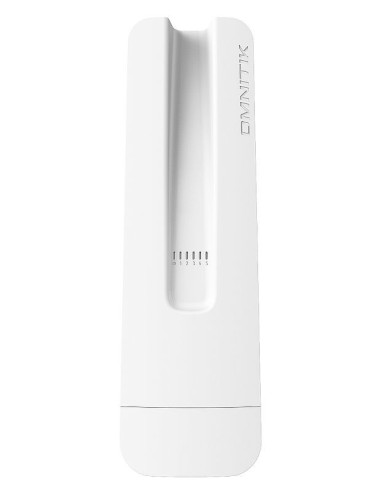

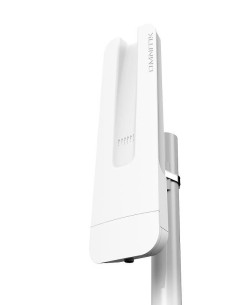

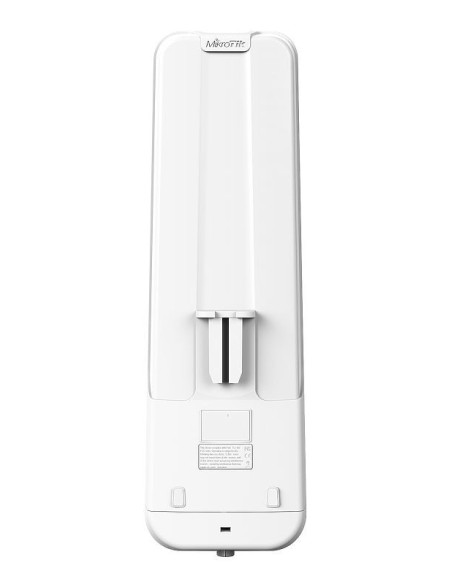

    The OmniTik 5 PoE AC from MikroTik features 5 Gigabit Ethernet ports and support for 802.11ac. It's equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE), and comes with a new design weatherproof outdoor enclosure, 2 integrated 7.5dBi 5GHz omnidirectional antennas, a power supply, a PoE injector, and a mounting kit. This is the perfect Base Station for SXT 5 ac or SXCT 5 ac Lite CPEs.

    This unit also supports passive or standard 802.3at/af PoE input/output (12-57V). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. It can power 48V devices (like IP camera) if 48V input is used.

    Woobm USB

    QuantityPriceYou Save
    5A$0.00Up to A$0.00
    10A$0.00Up to A$0.00
    16A$0.00Up to A$0.00
    20A$0.00Up to A$0.00


    Product codeRBOmniTikG-5HacD
    CPU nominal frequency720 MHz
    CPU core count1
    Size of RAM128 MB
    10/100/1000 Ethernet ports5
    Wireless chip modelQCA9892
    Wireless standards802.11a/n/ac
    Number of USB ports1
    Supported input voltage10 V - 57 V
    PoE in802.3af/at
    Dimensions416 x 129 x 58 mm
    Operating SystemRouterOS
    Tested ambient temperature-40 +70 C
    License level4
    Antenna gain DBI7.5
    Max Power consumption14W
    USB slot typeUSB type A
    USB Power ResetYes
    Number of chains2
    Storage typeFLASH
    Storage size16 MB


    5 GHz
     Transmit power (dBm)Receive SensitivityTransmit power (mW)


    RBOmniTikG-5HacDQCA9557 (720MHz) 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    Bridgingnone (fast path)161.91966.1329.21348.4495.6253.7
    Bridging25 bridge filter rules124.31509.5124.1508.3126.965
    Routingnone (fast path)161.91966.1366.41500.8477.2244.3
    Routing25 simple queues161.91966.1181.4743192.798.7
    Routing25 ip filter rules67.6820.970.6289.261.831.6
    Wireless System
    POE Active (48V)
    15W (802.3af), 30W (802.3at)
    Ethernet Ports
