E320 Mini PC


E320 series Fanless Embedded Computer is based on Intel Apollo Lake SoC platform, with reliable I/O design to support max expansions and first-class aluminum alloy enclosure which is suitable for harsh environment applications with reliable performance.

E320 is with 5xGbE LAN, 2xUSB2.0, 2xUSB3.0 host port, 1xM.2 E Key slot, 1xminiPCIe slot and USIM slot to support all kinds of communications, such as Wi-Fi, BT, Zigbee, 3G and 4G LTE, to implement seamless interconnection and interoperability between systems.

E320 series with 5 GbE LAN is an intelligent and powerful Fanless Embedded PC, it is powerful and saves space. It is easy to arrange and install. It can be widely used in Cyber Security and ICG, such as Office, Internet Bar, Rental/Let, Restaurant, Education, Office Building, Hotel, Scenery and Café, etc.



E320 Series 5LAN 4GB RAM 4 Core CPU J4205 Fanless Mini PC

Product Features:

  • Intel® Apollo Lake N3350/N4200/4205 SoC
  • HDMI and DP Display
  • 5xGigabit Ethernet
  • 2xUSB3.0, 2xUSB2.0
  • 1xM.2 E Key for WiFi
  • Mini-PCIe expansion with SIM for communication module
  • Wide temperature operation:-20°C~+60°C
  • 12V DC IN
  • Fanless slim system, Wall mounting design

With the latest Apollo Lake processor, E320 series supports faster memory speeds (greater memory bandwith) and offers over 150% CPU performance and 300% GPU performance compared to previous E3800 series platforms.

Wide temperature design

E320 has unique mechanical design and efficient passive heat dissipation design, heat conduction pad, which can effectively conduct heat and head conduction escaping from CPU and other components. So that E320 can operate in a wide temperature range from -20°C to +60°C under 100% CPU load.

Specifications

CPU Intel Apollo Lake J4205 series SoC
Memory 4GB eMMC RAM
Display Chipset - Intel®HD Graphics 505
DP Max. 4096 x 2304 @ 60Hz
HDMI Max. 4096 x 2304 @ 24Hz
Dual Display - HDMI + DP
Audio Controller Realtek ALC662, High Definition Audio. Line-out, Mic-in
Ethernet 1 x RTL8111H GbE, support Wake On Lan
4 x Intel i211 GbE, support Wake On Lan

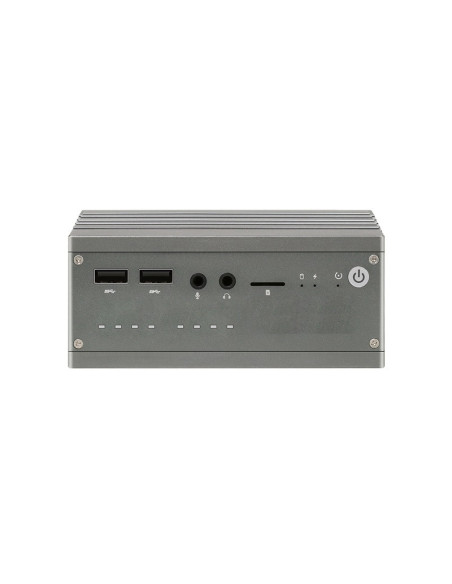

Front Panel Connectors 2 x USB3.0 Port
1 x Mic-in
1 x Line-out
1 x TF-Card
1 x Clean CMOS
1 x Power button
Rear Panel Connectors 5 x GbE Port
1 x HDMI
1 x DP Port
2 x USB2.0 Ports
1 x 12V DC IN
Expansion 1 x Full Size Mini-PCIe for WLAN or WWAN module
1 x USIM for 3G/4G LTE communication
1 x M.2 E Key for WiFi
Storage 1 x M.2 2242 SSD
1 x TF Card
1 x SATA3.0 for 2.5" hard disk
Power Supply 12V DC in
OS Windows 10 64Bit, Linux
Physical Characteristics Dimensions 120 x 100 x 51mm (LxWxH)
Weight 0.65 Kg
Environment Operating Temperature -20ºC~60ºC,airflow 0.7m/s
Storage Temperature -40ºC~80ºC
Relative Humidity 95% @ 40ºC ( Non-Condensing)
Vibration During Operation - With SSD:3Grms,IEC 60068-2-64,random vibration,5~500 Hz,1hr/axis
Shock During Operation - With SSD:30G, IEC 60068-2-27
ESD Contact +/-4 KV, Air +/-8 KV

Device Features
HDMI Output
Wireless System
Module Support
Ethernet Ports
5
Environment Temperature
-10℃~60℃
Installation Type
Wall-mount
600736779906
E320
