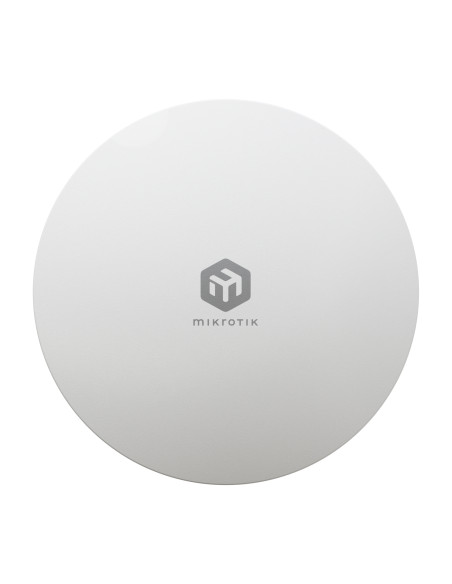

MikroTik ATLGM&RG520F-EU Outdoor 5G Router 4x4 MIMO eSIM + Micro SIM 16dBi Antenna IP66 PoE Gigabit LAN RouterOS

ATLGM&RG520F-EU
Eta end of July
$599.50
Tax included

     ATLGM&RG520F-EU

ATL 5G R16
First outdoor 5G device with built-in eSIM support, powerful directional antennas, and a cutting-edge Release 16 modem – ideal for rural, urban, and IoT deployments. With Gigabit Ethernet, PoE-in, and instant MikroTik connectivity out of the box, it’s the smart, rugged choice for fast and flexible internet anywhere. IP66 certified.

Key Features:

  • HIGH-GAIN 16 dBi Antenna
  • BUILT-IN eSIM with Mikrotik connectivity
  • 5G + LTE CAT 20 Modem
  • POE-IN + Gigabit Ethernet
  • 4x4 MIMO + Band 28 Support
  • Dual SIM Options
  • Rugged IP-66 snow-resistant design
  • Flexible Powering (12–56V)
  • RouterOS v7 inside

Included parts:

  • 24V 0.8A power adapter
  • Gigabit PoE injector
  • Hose clamp 1

Quantity Unit price You Save
5 $537.75 $308.74
10 $521.57 $779.35
15 $512.57 $1,303.91
20 $509.58 $1,798.50

Related Products & Accessories



     ATLGM&RG520F-EU

With a powerful 16 dBi directional antenna, 4x4 MIMO support, 512 MB of RAM, a modern dual-core ARM CPU, and a wide range of supported bands, ATL 5G is built to perform— whether you’re deep in the countryside or surroundedby signal noise in the city. And with Gigabit Ethernet andPoE-in support, installation is cleaner and simpler — just a single cable for both power and data.

ATL 5G features 4 high-gain middle-band antennas and 4 low-band antennas, including full Band 28 support for both LTE and 5G. That means exceptional coverage in
all the frequencies that really matter, including from 700 MHz to 1 GHz — the sweet spot for rural reach and wall- penetrating reliability.

Specifications

Product Name ATLGM&RG520F-EU
CPU Dual-Core 88F3720 800 MHz
CPU Architecture ARM 64-bit
RAM 512 MB
Storage 32 MB Flash
Ethernet Ports (1G) 1
M.2 Slots 1
SIM Slots 1 Micro SIM, eSIM
LTE Modem R11mL-RG520F
TAC 86945405
Antenna Gain 16 dBi
MIMO DL 4x4
5G SA Category 4.2 Gbps Downlink, 900 Mbps Uplink
5G SA FDD Bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700
MHz)
5G SA TDD Bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) /
78 (3500 MHz)
5G NSA Category 5.0 Gbps Downlink, 650 Mbps Uplink
5G NSA FDD Bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) /
28 (700 MHz)
5G NSA TDD Bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) /78 (3500 MHz)
LTE Category Cat 20 (2.0 Gbps DL, 200 Mbps UL)
LTE FDD Bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) /
28 (700MHz) /
32 (1500 MHz)
LTE TDD Bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
3G Category R8 (42.2 Mbps DL, 5.76 Mbps UL)
3G Bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
Dimensions 311 x 311 x 179 mm
Operating System RouterOS v7, License level 3
Operating Temperature -40°C to +70°C
DC input PoE-In
Input Voltage 12–56 V
Power Adapter Voltage 24 V
Power Adapter Current 0.8 A
PoE-In 802.3af/at
Max Power Consumption 10 W
Device Type
Router
MIMO
4x4
Ethernet Ports
1 Port 10/100/1000
ATLGM&RG520F-EU
