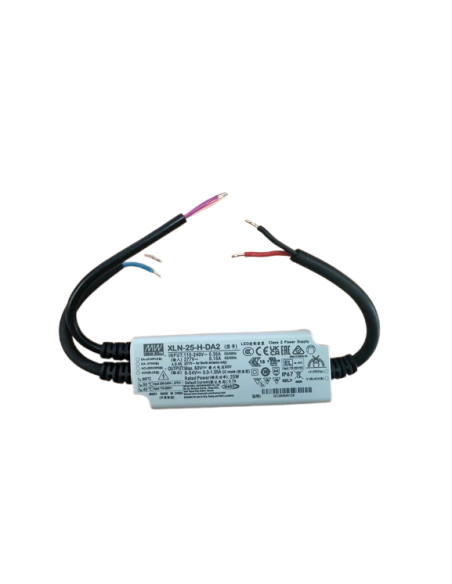

Mean Well XLN-25-H-DA2 25W Constant Current LED Driver with DALI-2 Dimming (NFC Programmable, IP67)
Mean Well XLN-25-H-DA2 25W Constant Current LED Driver with DALI-2 Dimming (NFC Programmable, IP67)

Mean Well XLN-25-H-DA2 25W Constant Current LED Driver with DALI-2 Dimming (NFC Programmable, IP67)

Mean Well
XLN-25-H-DA2
In Stock
$41.80
Tax included

XLN-25-H-DA2

The Mean Well XLN-25-H-DA2 is a 25W constant current LED driver with adjustable output current from 300mA to 1050mA configurable via NFC. It supports DALI-2 digital dimming and push dimming, and features pre-wired input, output, and control cables for fast installation, all within a compact IP67-rated enclosure.

Related Products & Accessories



Mean Well  XLN-25-H-DA2 25W Constant Current LED Driver with DALI-2 Dimming (NFC Programmable, IP67)

The Mean Well XLN-25-H-DA2 is a high-performance 25W constant current LED driver designed for professional lighting applications requiring flexibility and advanced control.

This model features NFC-based configuration, allowing installers to adjust the output current between 300mA and 1050mA without opening the enclosure. With a wide output voltage range of 9–54V, it supports a broad range of LED luminaires and lighting systems.

Equipped with DALI-2 digital dimming and push dimming functionality, the XLN-25-H-DA2 enables precise lighting control down to very low levels, making it ideal for commercial, architectural, and smart lighting environments.

The driver includes pre-wired input, output, and control cables for fast and reliable installation. Its fully sealed IP67-rated enclosure ensures durability in demanding indoor and outdoor environments.

Technical Specifications

Specification Value
Manufacturer Mean Well
Product Type Constant Current LED Driver
Series XLN-25-DA2
Model XLN-25-H-DA2
Operation Mode Constant Current (CC)
Output Power 25 W
Output Current 300 – 1050 mA (NFC Configurable)
Output Voltage 9 – 54 VDC
Input Voltage 100 – 305 VAC / 141 – 400 VDC
Dimming DALI-2 + Push Dimming
Configuration NFC Programmable
Number of Outputs 1 Output
Mounting Style Panel Mount
Enclosure Enclosed
IP Rating IP67
Safety Class Class 2 Power Supply
Dimensions (L × W × H) 114 × 44 × 32 mm
Operating Temperature -25°C to +85°C
Application Industrial / Architectural LED Lighting
Weight 208.3 g
