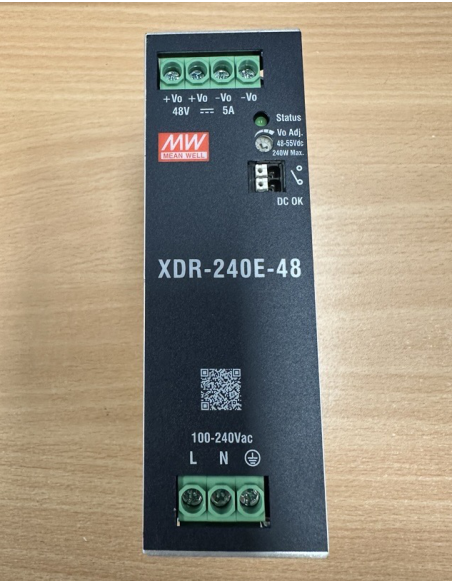

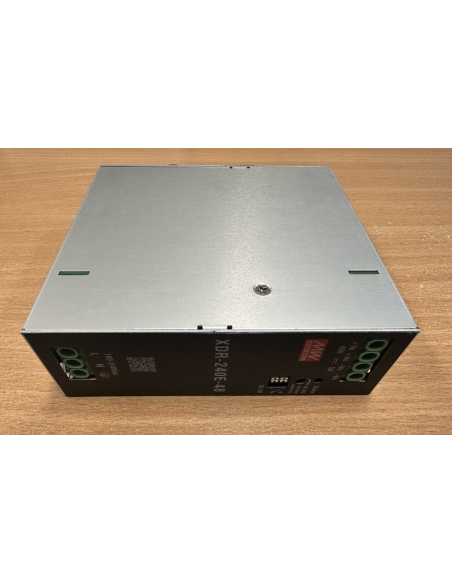

Mean Well XDR-240E-48

The MEAN WELL XDR-240E is one of the latest series of DIN rail power supplies to be released. It has been designed using the latest components and manufacturing techniques, which has enabled an ultra slim and low-cost design. It has a wide AC input range, so it can be used in most countires and carries an Australian RCM mark. It is highly efficient and boasts a no load power consumption of less than 1.2-watts. This DIN rail power supply has a wide operating temperature range (refer to derating curve in data sheet), as well as as a DC OK signal for remote status monitoring.

Key Features:

• 240W industrial DIN rail power supply

• 48V DC output at 5A

• Ultra-slim 40mm width design

• High efficiency up to 95.5%

• Universal 85–264VAC input with active PFC

• Fanless cooling by free air convection

• Built-in DC OK relay contact

• Constant current limiting circuit

• Protection against short circuit, overload, overvoltage, and overtemperature
