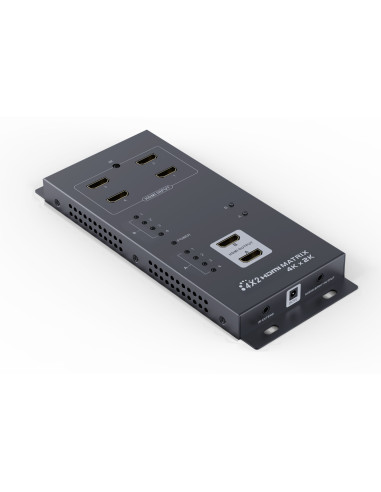

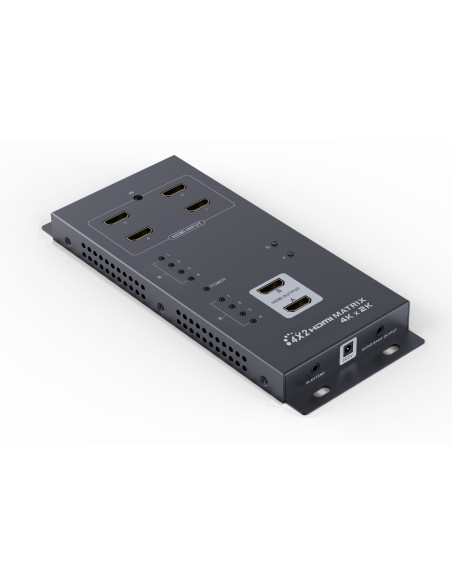

HDbitT 4Kx2K HDMI 4-Input 2-Output Matrix Switch
HDbitT 4Kx2K HDMI 4-Input 2-Output Matrix Switch
HDbitT 4Kx2K HDMI 4-Input 2-Output Matrix Switch
HDbitT 4Kx2K HDMI 4-Input 2-Output Matrix Switch

HDbitT 4Kx2K HDMI 4-Input 2-Output Matrix Switch

Generic
LKV342PRO
Last items in stock
$83.66
Tax included

LKV342PRO







LKV342PRO - HDbitT 4Kx2K HDMI 4-Input 2-Output Matrix Switch



Specification

Power supply 5V/3A
 Input ports HDMI x 4
 Output ports HDMI x 2
 Power indicator led Yellow LED x 1
 Signal indicator led  Blue LED x 1
Frequency Range 25MHz - 340MHz
Max transmission rate  3.4G x 3= 10.2Gbps
Colour depth Supports 12-bit DeepFullHD, Full 3D and 4K x 2K video
Audio   Supports standard audio and DSD (Direct Stream Digital) Audio and HD (HBR) Audio
HDMI resolution supported  480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50@60Hz,1090i@50@60Hz, 1080P@50@60Hz, 30 HDMI(720P@50@60Hz, 1080P@24Hz), 3840 X 2160P@24@25@30Hz
Dimension 213 X 86 x 19mm
Colour Black
Working temperature 0-60

Package contents

  • product
  • remote control
  • user manual
  • power adapter 5V/3A
  • R/L audio+ SPDIF audio cabel
  • screws
  • IP extension receiver
Device Features
HDMI Output
5208532660937
LKV342PRO
No reviews
Comments (0)
No customer reviews for the moment.
