Jetway JBC373F38 Fanless Mini PC - Intel D525

JBC373F38-52L8-B Fanless PC with 8 LAN Gigabit ports

Features of JBC373F38-52L8-B:

• INTEL® Pine Trail-D Processor D525 + ICH8M Chipset
• Support 1 * DDR3 800/667MHz Single CH up to 2GB
• Support 1 * Serial ATAII (3Gb/s) Device
• Support Quad Gigabit LAN
• Support VGA Output
• Support 2 * COM ports
• Support 2.5" SATA HDD drive bay
• Support 2 * Mini PCI-E socket (one shared with mSATA)
• Provide CF card socket (Support CF or CF SATA card)
• Provides Wall mount bracket & VESA mount (Optional)

Specifications:

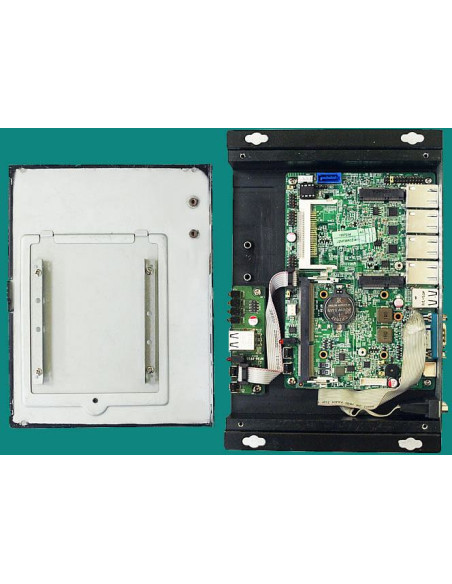

Specification Motherboard:

• Processor: INTEL® Pine Trail-D Processor D525
• Chipset: INTEL®ICH8M Express chipset
• Memory : Socket for 1 x DDR3 800/667MHz Single CH SO-DIMM up to 2GB
• Expansion Slots: 2 x Mini PCI-e
• LAN : 4 x Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN (front)
      4 x Intel PCI-E Gigabit Ethernet LAN (rear) Storage:
• 1 x Serial ATA2 3Gb/s connector
• 1 x CF card socket (Support CF or CF SATA card)
• 1 x mSATA socket (Shared with one Mini PCI-E socket)
• BIOS: AMI 16MB SMT Flash ROM
• Form Factor: 3.5" SBC (148mm x 102mm)

Barebone Specification:

• Product size: 180 (W) x 142 (D) x 48 (H) mm
• Specs Devices: 1 x 2.5" HDD Drive Bay (Only support SATA 2.5"HDD)
• Colors: Black

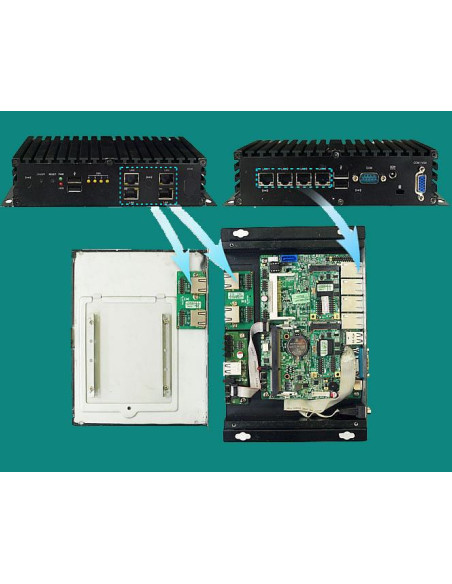

Front I/O ports:

• 1 x Power button & 1 * Reset button
• 1 x Power LED & 1 * HDD LED
• 2 x USB 2.0 ports
• 4 x NIC LED's
• 4 x LAN ports

Rear I/O port:

• 2 x USB 2.0 ports
• 1 x 12V DC jack
• 4 x RJ-45 port(Intel Gigabit LAN)
• 1 x Kensington hole
• 2 x Antenna holes
• 1 x VGA
• 1 x COM port

• Power supply: +12V DC-IN Power
• Application: Networking Appliance, Set Top Box, Thin Client
• Packing Color Box Dimension: 250(W) x 118 (D) x 295 (H) mm Gross Weight: 2.78KG

Package contents:

• 1 x 60W AC-DC Adapter
• 1 x Power Cord
• 1 x CD
• 1 x Manual
• 1 x COM cable
• 2 x Wall Mount Bracket
