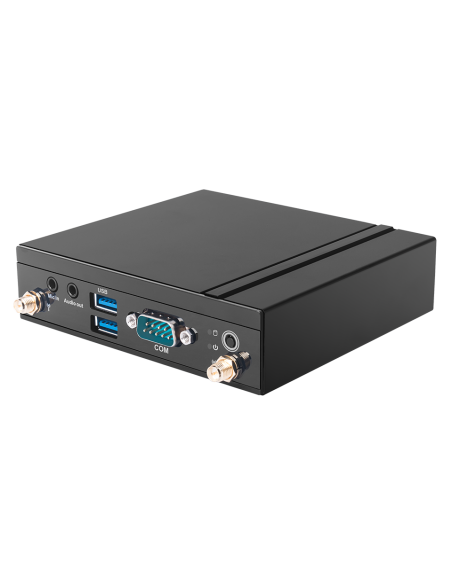

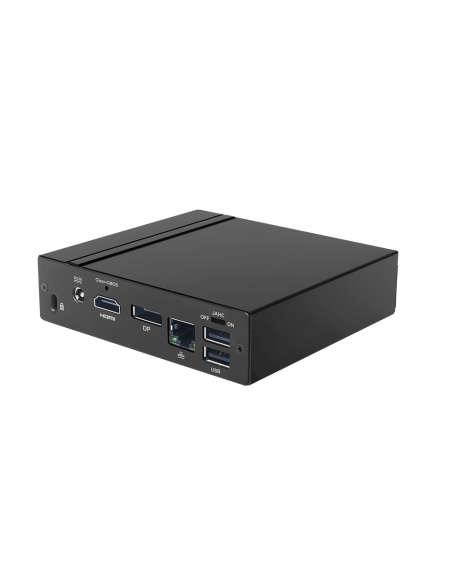

Giada VM23 Intel Apollo Lake Celeron N3350 processor Support Wi-Fi/BT module Fanless Signage Player
VM23
In Stock
$398.20
Tax included
VM23
- Ultra Compact and Fanless Design
- Intel Apollo Lake Inside
- Support Dual 1080p Display
VM23 - Giada Intel Apollo Lake Celeron N3350 processor Support Wi-Fi/BT module Fanless Signage Player
Â
Key Features
Low Power Consumption & Cost-effective
The ultra-compact player is equipped with Intel® Celeron® N3350 processor (TDP ≤6W). It offers an excellent price-performance ratio, with onboard LPDDR4 memory and eMMC 5.1 storage.
Dual 1080p Display Support
Powered by Intel® HD Graphics 500, this device supports dual 1080p video decoding. HDMI 1.4a supports up to 4096×2160 @24Hz, while DisplayPort 1.2 supports up to 4096×2160 @60Hz.
Fanless Design
Passive cooling ensures silent operation and improved reliability. The fanless design reduces dust buildup and is ideal for mission-critical environments.
I/O Port Overview
Technical Specifications
| CPU | ||
|---|---|---|
| Processor | Intel® Celeron® N3350 | |
| Chipset | SoC | |
| Cores | 2 | |
| TDP | 6W | |
| Memory | ||
| Size | 4GB (Optional 2GB) | |
| Type | LPDDR4 2133 MHz | |
| Storage | ||
| Expansion | Mini-PCIe (mSATA) | |
| Onboard | 64GB eMMC | |
| Display | ||
| GPU | Intel® HD Graphics 500 | |
| Support | DirectX 12, OpenGL 4.3, OpenCL 2.0 | |
| Ports | 1× DisplayPort (4096×2304 @60Hz) 1× HDMI (3840×2160 @30Hz) |
|
| Network | ||
| LAN | Realtek RTL8111H Gigabit Ethernet | |
| Port | 1× RJ45 | |
| Wireless | M.2 (2230) Wi-Fi / Bluetooth | |
| I/O Interfaces | ||
| USB | 2× USB 3.2 Gen1, 2× USB 2.0 | |
| Serial | 1× RS232 | |
| Audio | Mic-in / Audio-out | |
| System | ||
| Power | 12V / 2A | |
| Dimensions | 116.6 × 107.4 × 30 mm | |
| OS Support | Windows 10 / Ubuntu Linux | |
| Temperature | 0°C to 40°C | |
