BC-OM4-MM-LCSC-3 OM4 Multimode Duplex Fiber Cable (LC to SC) 3 Meter
BC-OM4-MM-LCSC-3 OM4 Multimode Duplex Fiber Cable (LC to SC) 3 Meter
BC-OM4-MM-LCSC-3 OM4 Multimode Duplex Fiber Cable (LC to SC) 3 Meter
BC-OM4-MM-LCSC-3 OM4 Multimode Duplex Fiber Cable (LC to SC) 3 Meter
BC-OM4-MM-LCSC-3 OM4 Multimode Duplex Fiber Cable (LC to SC) 3 Meter
BC-OM4-MM-LCSC-3 OM4 Multimode Duplex Fiber Cable (LC to SC) 3 Meter

BC-OM4-MM-LCSC-3 OM4 Multimode Duplex Fiber Cable (LC to SC) 3 Meter

BC-OM4-MM-LCSC-3
In Stock
$12.10
Tax included

BC-OM4-MM-LCSC-3

3 Meter | LC UPC to SC UPC | Duplex | OM4 Multimode | 50/125 µm | Riser (OFNR) | 2.0mm Jacket

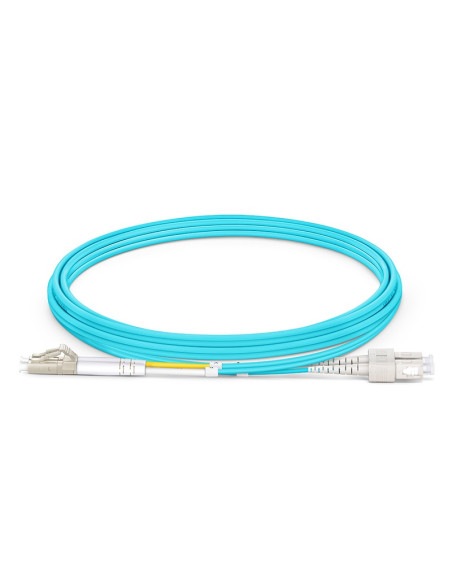

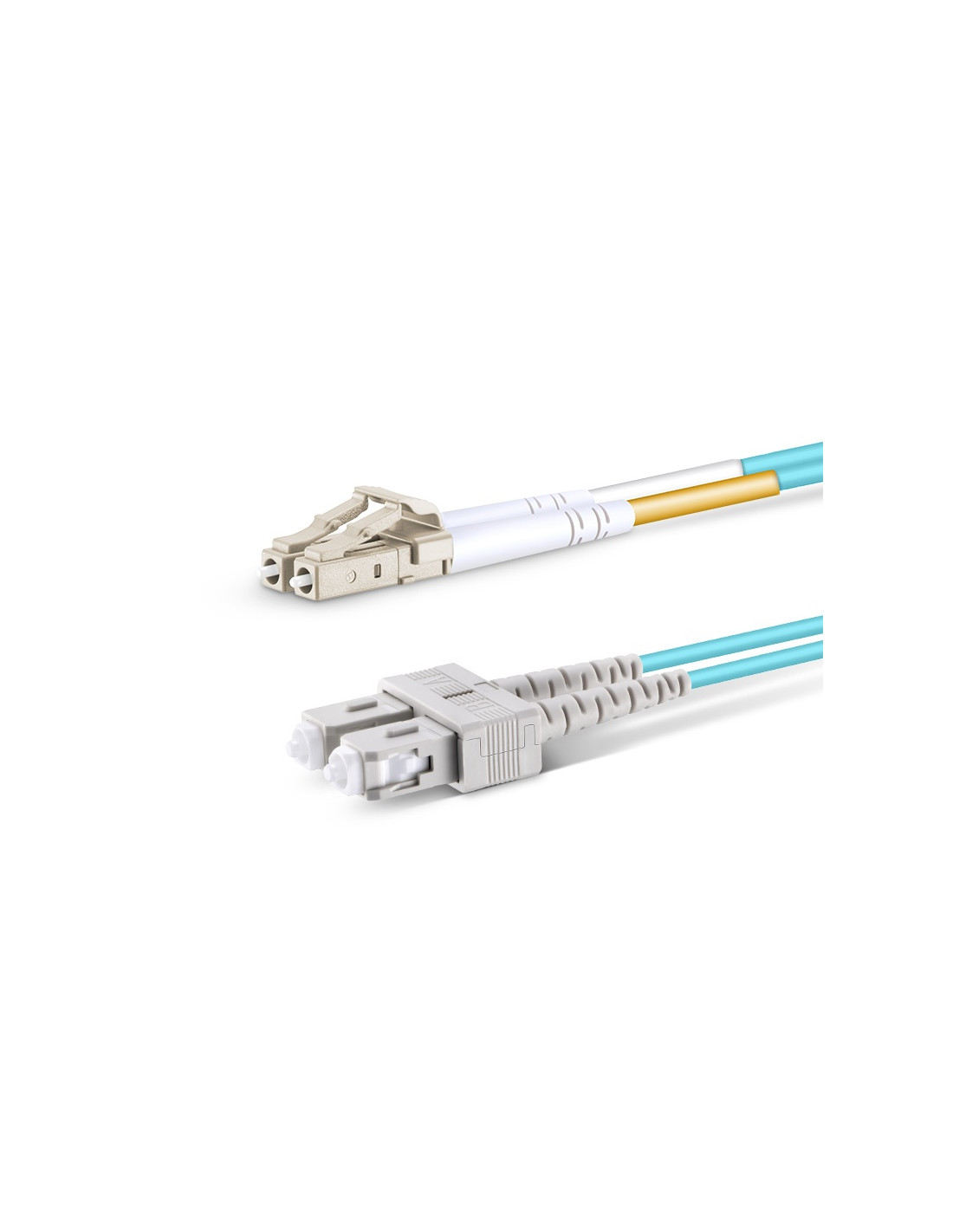

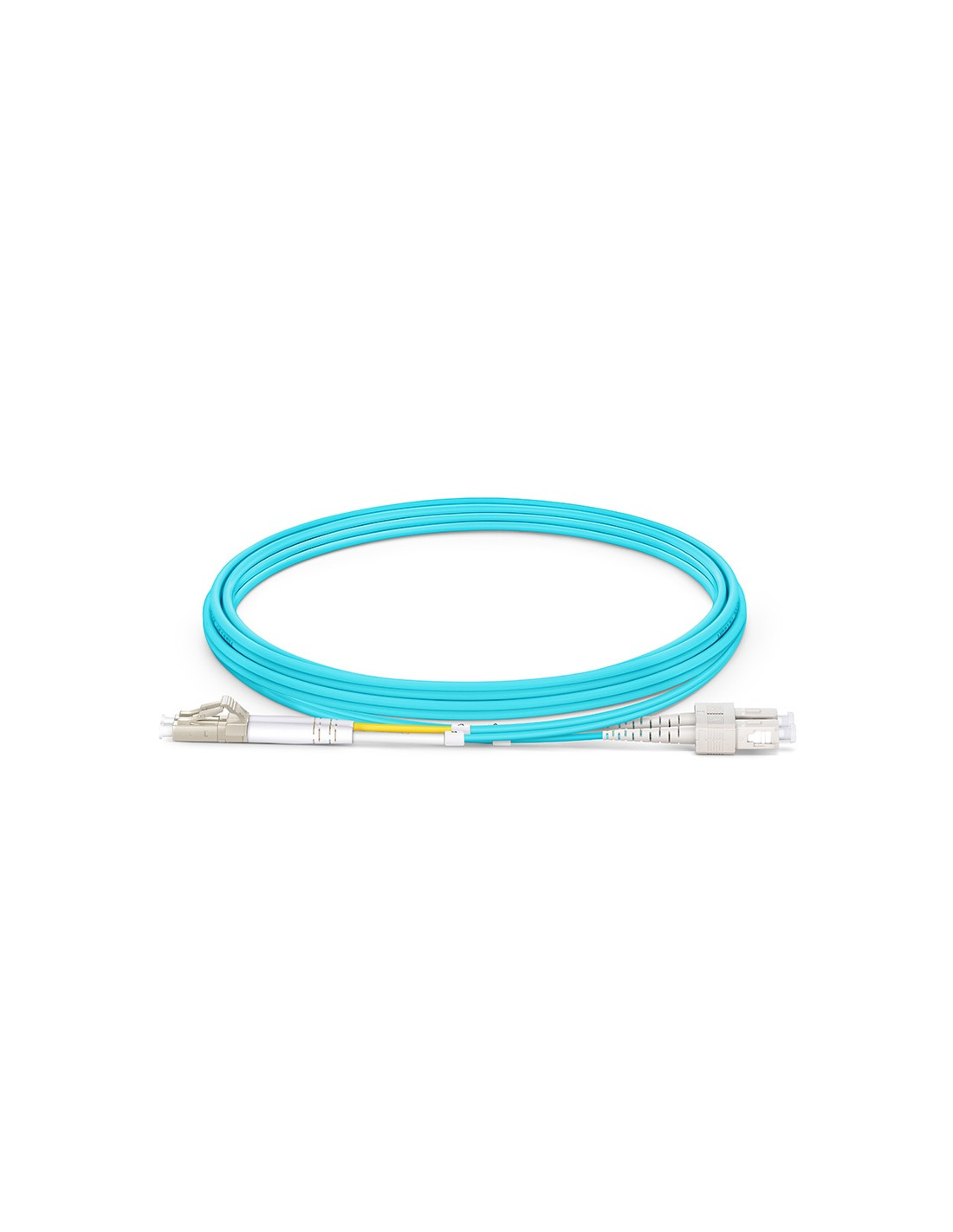

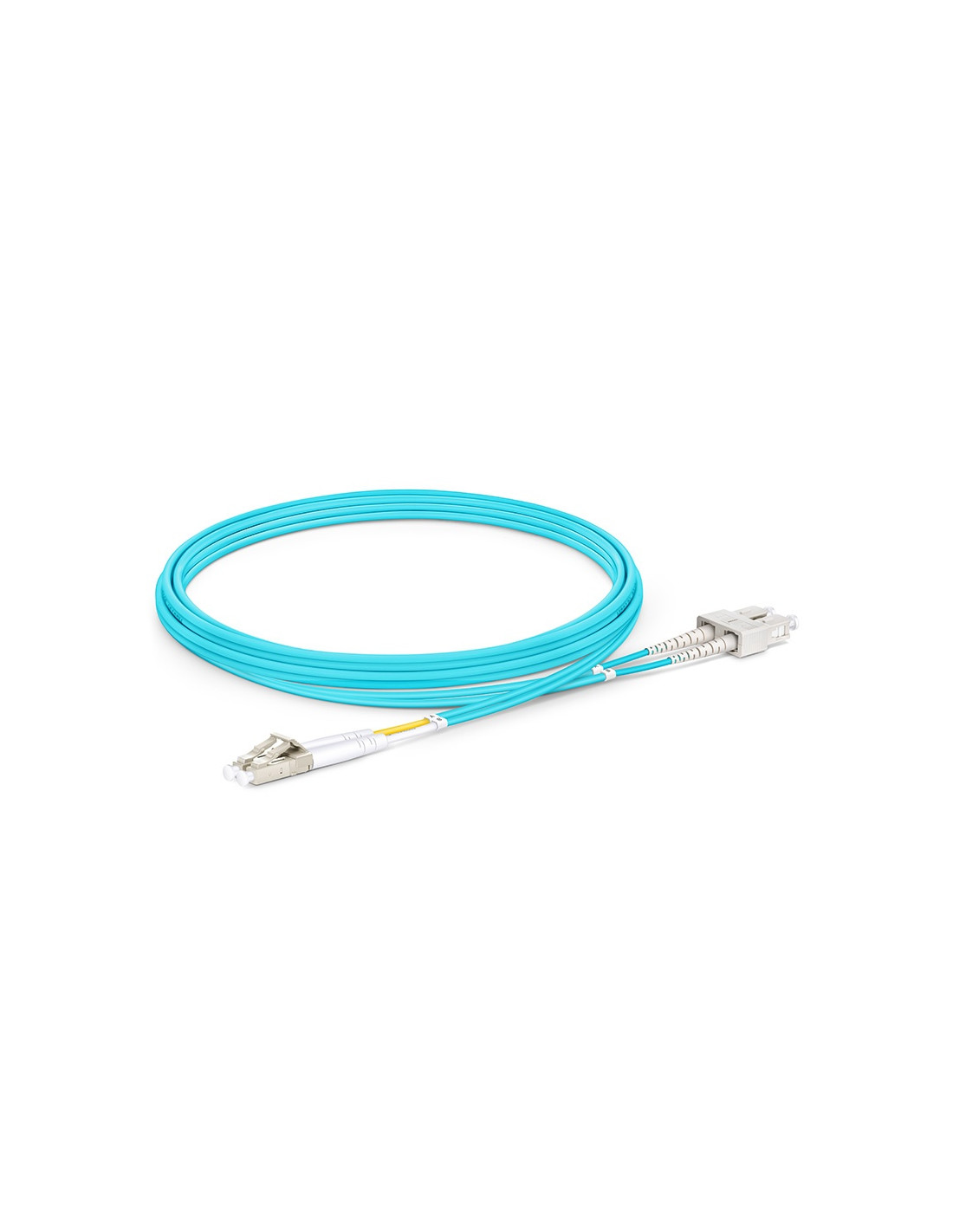

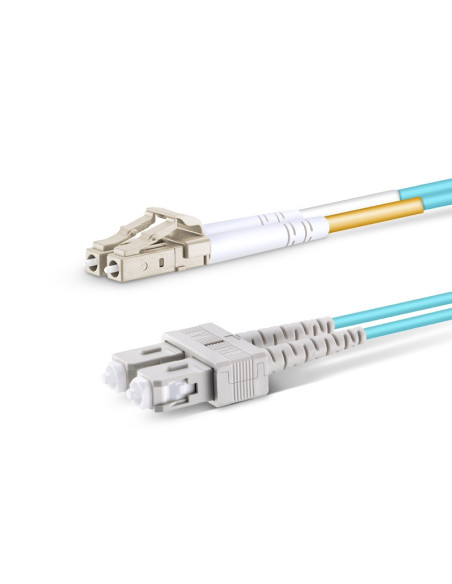

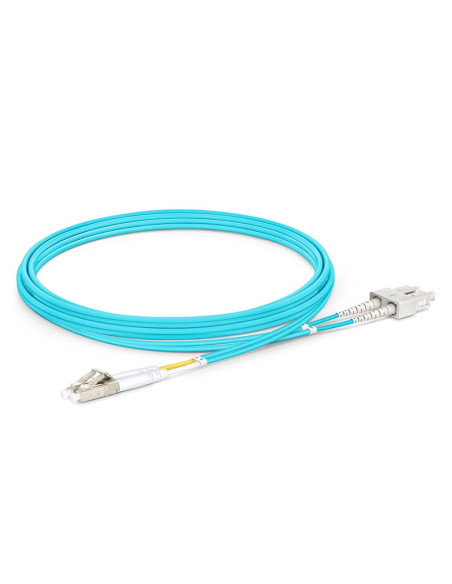

The BC-OM4-MM-LCSC-3 is a 3-meter duplex multimode fiber optic patch cable designed for high-speed data transmission in demanding network environments. It features LC UPC to SC UPC connectors and utilizes OM4 laser-optimized 50/125 µm multimode fiber, offering enhanced performance and extended reach for shortwave optical applications.
This cable supports 10G Ethernet and is also compatible with certain 40G/100G BiDi or breakout applications that use duplex multimode transceivers

Application:

Cross-connect patching
Backbone application in building
Termination enclosure for equipment patching
Equipment to equipment patching

Features:

  • Conforms to ISO/ IEC 11801
  • Individually labelled for lead tracing
  • Manufactured with stringent quality control
  • UPC (Ultra Physical Contact) connector
  • All leads are supplied with a factory test report
  • Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAD
  • Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
  • All ends are polished and individually inspected for correct polishing
  • Supports high-speed multi-channel data, voice & video applications

Quantity Unit price You Save
4 $11.74 $1.45

Related Products & Accessories



BC-OM4-MM-LCSC-3 OM4 Multimode Duplex Fiber Cable (LC to SC) 3 Meter

Product Specifications:

Connector A LC UPC Duplex
Connector B SC UPC Duplex
Fiber Count 2 Fibers
Fiber Grade Bend Insensitive
Fiber Mode OM4 50/125μm
Wavelength 850/1300nm
Polarity A (Tx) to B (Rx)
Cable Type Tight-Buffered
Cable Outside Diameter (OD) 2.0mm
Flame Rating Riser (OFNR)
Min. Bend Radius (Optical Fiber) 7.5mm
Min. Bend Radius (Fiber Cable) 20D (Dynamic) / 10D (Static)
Connector Durability 1000 times
Tensile Strength (Long/Short Term) 90N / 150N
Insertion Loss ≤ 0.3dB
Attenuation at 850nm 3.5dB/km
Attenuation at 1300nm 1.5dB/km
Operating Temperature -10°C to +70°C (14°F to 158°F)
Storage Temperature -20°C to +70°C (-4°F to 158°F)
