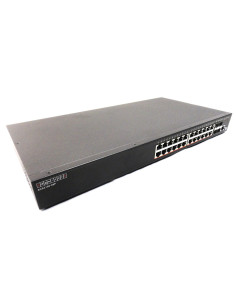

ECS2100-28PP EdgeCore 28-Port Gigabit PoE Switch

    ECS2100-28PP Edgecore 28-Port Gigabit PoE Switch

    IN STOCK - Call To Confirm For Large Orders
    Tax included

    The Edgecore ECS2100 Series features smart web-managed cost-effective switches. These devices are designed for SMB and enterprise markets and provide a complete solution for Gigabit fibre networking with power over Ethernet.

    ECS2100-28PP Key Features:

    • 24x Gigabit 802.3af/at PoE Ports
    • 4x 1G SFP Ports
    • 370W Max PoE Budget
    • Layer 2 Switching
    • Rackmountable

    QuantityPriceYou Save
    5A$792.11Up to A$208.45
    10A$746.25Up to A$875.49

    DESCRIPTION : ECS2100-28PP Edgecore 28-Port Gigabit PoE Switch

    24-Port 10/100/1000 Mbps (Gigabit) Managed PoE Switch with 4 Gigabit SFP slots, 802.3af and 802.3at PoE, Power Budget 384W, can extend to 720W with extra power supply (part code EPS460W)

    28x Networking Ports in Total, 24x Gigabit RJ45 Ethernet, 4x SFP, Managed, Rackmount, Layer 2

    The ECS2100 Series is a range of web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large.

    The ECS2100-28PP is an extendable PoE switch, it delivers a default 370 W of PoE power, but can be extended up to 740 W by purchasing a PS3000 (Power Shelf) and EPS460W (Entended Power Supply) to support future IP cameras, IP telephones, or access points. ECS2100-28PP supports 24 x GE PoE ports and 4 Gigabit SFP ports. The PoE Budget is max 370W

    · Performance and Scalability with 56Gbps switching capacity
    · Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1Q VLAN-segmented and IEEE 802.3ad Link Aggregation Control Protocol (LACP)..
    · Comprehensive QoS - Traffic is prioritized according to 802.1p or DSCP, giving optimal performance to real-time applications such as voice and video.
    · Multi Management- supports CLI, Web, SNMP v1/v2c/v3, and Telnet management to provide multiple network management access.
    · Enhanced Security with Port security limits for IEEE 802.1X port-based or MAC-based access including DHCP snooping, Access Control Lists (ACLs), Dynamic VLAN, IP Source Guard and Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) encrypt Telnet and web access to the switch.
    · Smart Network Deployment - Automatic Voice VLAN for quick deployment of VoIP, and automatic Video VLAN to help deploy your IP-based surveilliance system.
    · PoE Support - ECS2100-28PP provide up to 30 Watts of power to attached devices, such as VoIP phones, wireless access points, and surveillance cameras, all over existing Ethernet cables. It can extend its power budget up to 740 Watts by connecting an external power bank (PS3000 and EPS460W) to deliver 30 Watts on 24 ports.

    · Ports: 24
    · Switch Type: Fixed Port
    · Routing/Switching: Layer 2
    · Features: PoE, IPv6 Management
    · Predominant Port Type: Gigabit Copper, Gigabit Fiber

    ECS2100 series management features



    • Flow control
    • Broadcast/ Multicast/ Unknown unicast control
    • Auto MDI/MDIX

    Spanning Tree Protocol

    • IEEE 802.1D /.1w/.1s
    • STP fast forwarding/Auto Edge
    • BPDU Guard/BPDU filtering
    • Root Guard
    • BPDU transparent
    • Loopback detection


    • 4K VLAN
    • Port-based VLAN
    • 802.1Q VLAN
    • 802.1v Protocol based VLAN
    • MAC-based  VLAN
    • Traffic Segmentation
    • Voice VLAN
    • Auto VLAN Assignment

    Port Trunk

    • Static trunk
    • IEEE 802.3ad LACP


    • 8 Hardware queues
    • 802.1p CoS
    • CoS based on IP precedence, DSCP, TCP/UDP Port, ACL
    • WRR/Strict or Hybrid
    • DiffServ
    • Ingress traffic policing
    • Marking/remarking
    • Auto QoS profile assignment
    • Rate limiting

    Multicast control

    • IGMP snooping v1/v2/v3
    • IGMP Querier
    • IGMP snooping filtering/throttling
    • IGMP snooping proxy
    • Immediate leave
    • MLD snooping v1/v2


    • MAC filtering
    • Port security (dynamic & static)
    • Port security intrusion action
    • 802.1x Port-based authentication
    • 802.1x MAC-based authentication
    • Guest VLAN
    • MAC filtering
    • MAC authentication
    • DHCP snooping/snooping 82
    • IP Source Guard
    • Dynamic ARP Inspection
    • Access Control List
    • Denial of Service Protection
    • AAA (Authentication, Authorization, Accounting)
    • SSH v1/v2
    • Management access filter (WEB/SNMP/Telnet)
    • Static Routing *
    • mDNS *
    • QinQ *
    • G.8032 *
    • IP Clustering *

    * (v1.2.2.0 + support )


    • Cisco like CLI
    • Telnet/WEB/SNMP v1/v2/v3
    • RMON(1,2,3,9)
    • FTP/TFTP/HTTP download
    • DHCP dynamic provision (option 66&67)
    • DHCP client/option 82 relay
    • Time zone for SNTP
    • DNS client/proxy
    • Delay reload
    • Event/error log, system log
    • Auto upgrade
    • Port monitor
    • LLDP (802.1ab)
    • Cable diagnostic


    • IPv4/IPv6 Dual Protocol Stack
    • IPv6 Address types: Unicast
    • IPv6 Neighbor Discovery
    • SNMP over IPv6
    • HTTP over IPv6
    • Remote IPv6 ping
    • IPv6 Management
    • IPv6 ACL
    • IPv6 QoS
     Port     RJ45 10/100/1000 BASE-T Ports24
    SFP Uplink Ports4 (1G/100M)
    PoE Ports24
    Console Ports1
    PerformanceSwitching Capacity56 Gpbs
    Forwarding Rate47.1 Mpps
    Flash Memory32MB
    Packet Buffer4.1 Mbits
    MAC Address Table8K
    Jumbo Frames10K
    MTBF370,636 hours
    Heat Dissipation1678.742 Btu/H
    Acoustic Noise49.7 dB (A)
    Power Supply100V-240V AC, 50-60 HzYes
    Max System Power Consumption490W (950W)
    PoEIEEE 802.3af/802.3atYes
    PoE Power Budget370W (740W)
    PoE TimerYes
    Mechanical   Rack Space19"
    Form FactorRackmount
    Dimensions44 x 22 x 4.4 cm
    Weight 3.1 kg
    Environmental    Operating Temperature-0 ~ 45 C
    Storage Temperature -40 ~ 70 C
    Operating Humidity
    10 ~ 90%
    Storage Humidity
    10 ~ 90%

    POE Ports
    Device Type
    Power Over Ethernet, Network Switch
    Device Features
    Managed, Rack Mountable
    SFP Ports
    POE Active (48V)
    15W (802.3af), 30W (802.3at)
    Yes, 1G SFP
    Ethernet Ports
