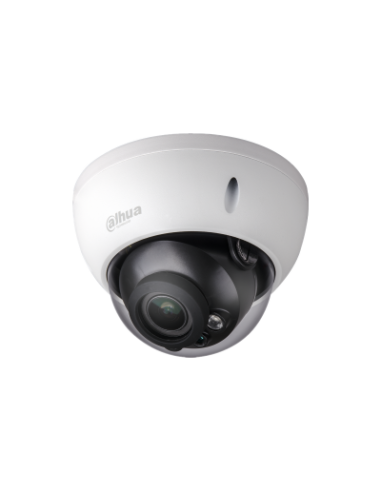

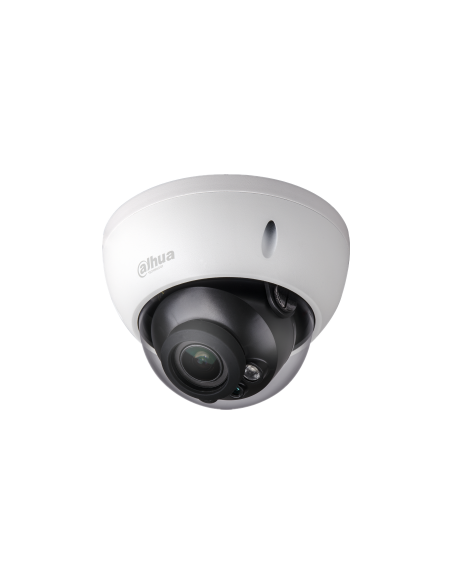

Dahua 3MP Dome IP Camera

Camera

Image Sensor

1/3” 3Megapixel progressive CMOS

Effective Pixels

2304(H) x1536(V)

RAM/ROM

256MB/16MB

Scanning System

Progressive

Minimum Illumination

0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Motorized(-ZS),Manual(-VFS)

Mount Type

Board-in

Focal Length

2.7mm~12mm

Max. Aperture

F1.4

Angle of View

H:87°~29°, V:42°~15°

Focus Control

Motorized (-ZS),Manual(-VFS)

Close Focus Distance

0.3m

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°

Video

Compression

H.264+/H.264

Streaming Capability

2 Streams

Resolution

3M(2048×1536)(2304×1296)/

1080P(1920x1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

3M(1 ~ 20fps)/2M (1 ~ 25/30fps)

D1/CIF(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H264:24K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol
