Why traditional Gigabit switches struggle?

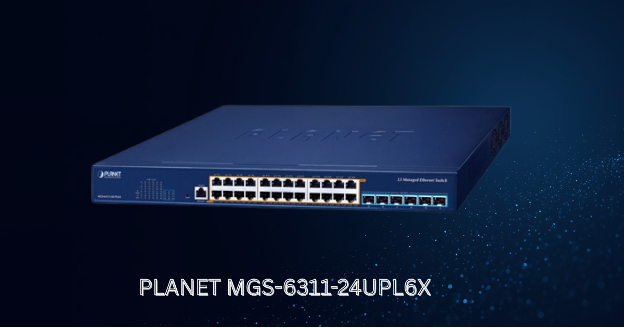

A standard Gigabit switch can quickly become a bottleneck when multiple devices are pushing large amounts of traffic at the same time. This is especially true for modern wireless access points and surveillance systems, where the switch must carry both data and power efficiently. The Planet MGS-6311-24UPL6X addresses this by supporting 2.5Gbps access speeds over existing UTP cabling, helping businesses upgrade without replacing all infrastructure.
The problem it solves
Many organizations face three common issues at once: slow uplinks, insufficient PoE power, and limited routing capability. The MGS-6311-24UPL6X solves these with 24 PoE++ ports delivering up to 95W per port, a total PoE budget of up to 720W, and six 10GBASE-X SFP+ uplinks for high-speed backbone connectivity. That combination makes it useful for offices, schools, surveillance networks, hospitality sites, and enterprise edge deployments.
Built for high-power devices
If your network includes PTZ cameras, Wi-Fi access points, and other power-hungry devices, power planning becomes just as important as speed. The switch’s IEEE 802.3bt PoE++ support helps deliver power and data over a single cable, reducing the need for extra electrical work and simplifying installation. It also includes features like PD alive check and PoE scheduling, which can improve reliability and help reduce energy waste.
Better routing and traffic control
This switch is not just about ports and power. It also offers Layer 3 routing support, including static route, RIP, OSPF, BGP, and VRRP, which makes it more suitable for segmented enterprise networks and multi-VLAN environments. On top of that, it provides QoS, ACL, multicast support, and security controls such as 802.1X, DHCP snooping, and ARP inspection, helping administrators manage traffic and protect the network more effectively.
Where it fits best
The MGS-6311-24UPL6X is a strong fit for organizations that need to connect many multi-gig devices in one place while maintaining reliable uplinks and centralized power delivery. It is especially practical for Wi-Fi deployment projects, video surveillance systems, and growing networks that need more than basic switching. Its six SFP+ uplinks also make it easier to extend to servers, aggregation switches, or fiber backbone links.
Key benefits at a glance
- 24 x 2.5GBASE-T ports with PoE++ support up to 95W per port.
- Total PoE budget up to 720W for high-density deployments.
- 6 x 10G SFP+ uplinks for faster backbone connectivity.
- Layer 3 routing for scalable enterprise network design.
- Advanced security, QoS, multicast, and management tools.
If your current switch is slowing down Wi-Fi performance, limiting camera deployment, or creating power headaches, the PLANET MGS-6311-24UPL6X offers a practical upgrade path. It combines 2.5G access, PoE++ power, and 10G uplinks in one platform, making it a future-ready choice for modern business networks.
FAQ
- What makes the MGS-6311-24UPL6X suitable for Wi-Fi 6/6E/7? It provides 2.5G access speeds and PoE++ power, which better match the bandwidth and power needs of modern access points.wisp+1
- How much PoE power does it support? It supports up to 95W per port and a total PoE budget of up to 720W.planet+1
- Why are 10G SFP+ uplinks important?
They reduce uplink bottlenecks and help connect the switch to higher-speed backbone or server networks.
