ASRock Rack 1U2LW-X570 Server Key Features
Related Products & Accessories
| System | |
| Form Factor | 1U Rackmount |
| Dimensions | 394 x 482.6 x 44.4 mm (15.5'' x 19'' x 1.75'') |
| Support MB | X570D4U |

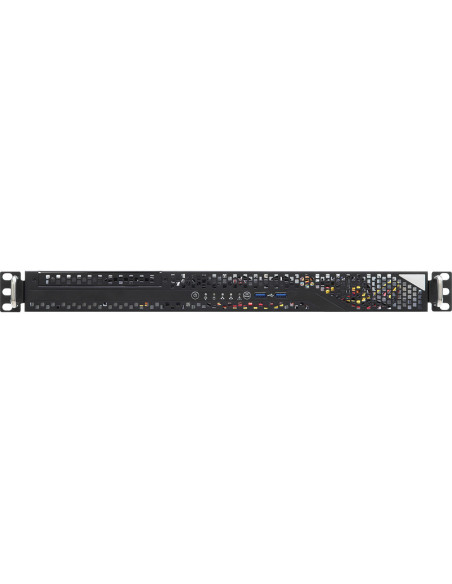

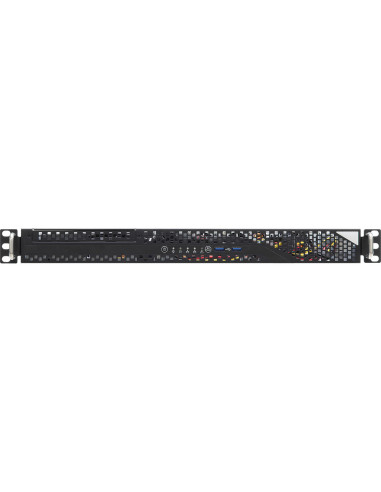

| Front Panel | |
| Buttons | Power Switch, System Reset |
| LEDs | Power Status, HDD, LAN Activity LEDs |
| I/O Ports | 2 Type-A (USB 3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 1 Slim ODD |
| Internal Side | 2 fixed 3.5" SATA drive bays or 1 fixed 3.5" and 1 fixed 2.5" SATA drive bays 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH] *Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics |
| Power Supply | |
| Type | Single PSU |
| Output Watts | 315W |
| Efficiency | 80-PLUS Gold |
| AC Input | 100-240V, 50-60Hz |
| System Fan | |
| Fan | 3 PWM Easy-swap 40x28 mm fans |
| Processor System | |
| CPU | Supports: AMD Ryzen™ 5000 and 3000 Series Desktop Processors AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors |
| Socket | AM4 PGA 1331 |
| Chipset | AMD X570 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | Supports DDR4 288-pin ECC*/non-ECC UDIMM *For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. |
| Max. Capacity per DIMM | up to 32GB |
| Max. DIMM Frequency | up to 3200 MHz* * AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4 *Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics *Supports PCIe3.0 x16 when using AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500: 1 DB15 (VGA) AMD Ryzen Desktop Processors with Radeon Graphics: 1 HDMI |
| VRAM | DDR4 16MB |

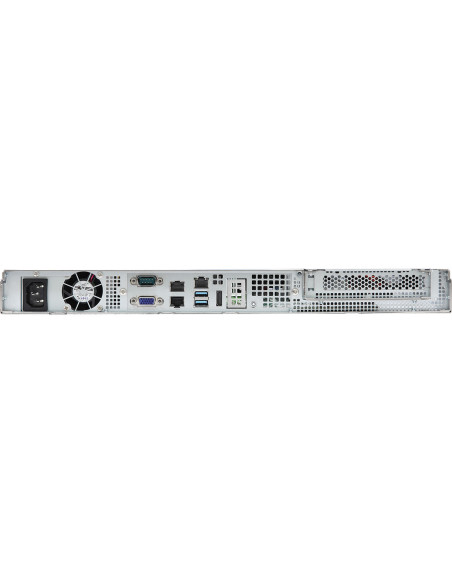

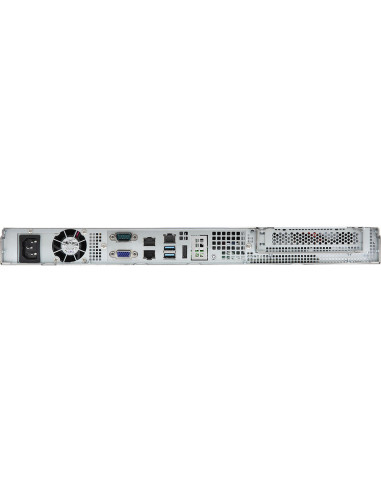

| Rear I/O | |
| UID Button/LED | 1 UID w/ LED |
| VGA Port | 1 D-Sub |
| Serial Port | 1 |
| USB 3.2 Gen2 Port | 2 Type-A (USB3.2 Gen2) |
| RJ45 | 2 RJ45(1GbE) by Intel® i210 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C* / Non operation temperature: -40°C ~ 70°C |
| Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
