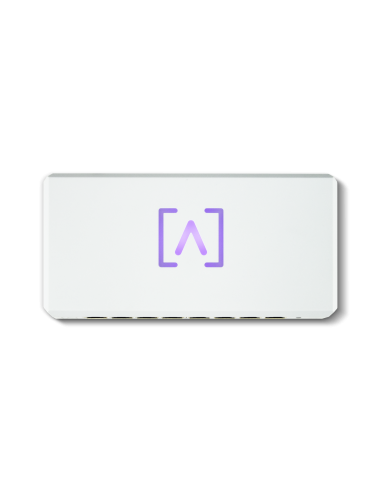

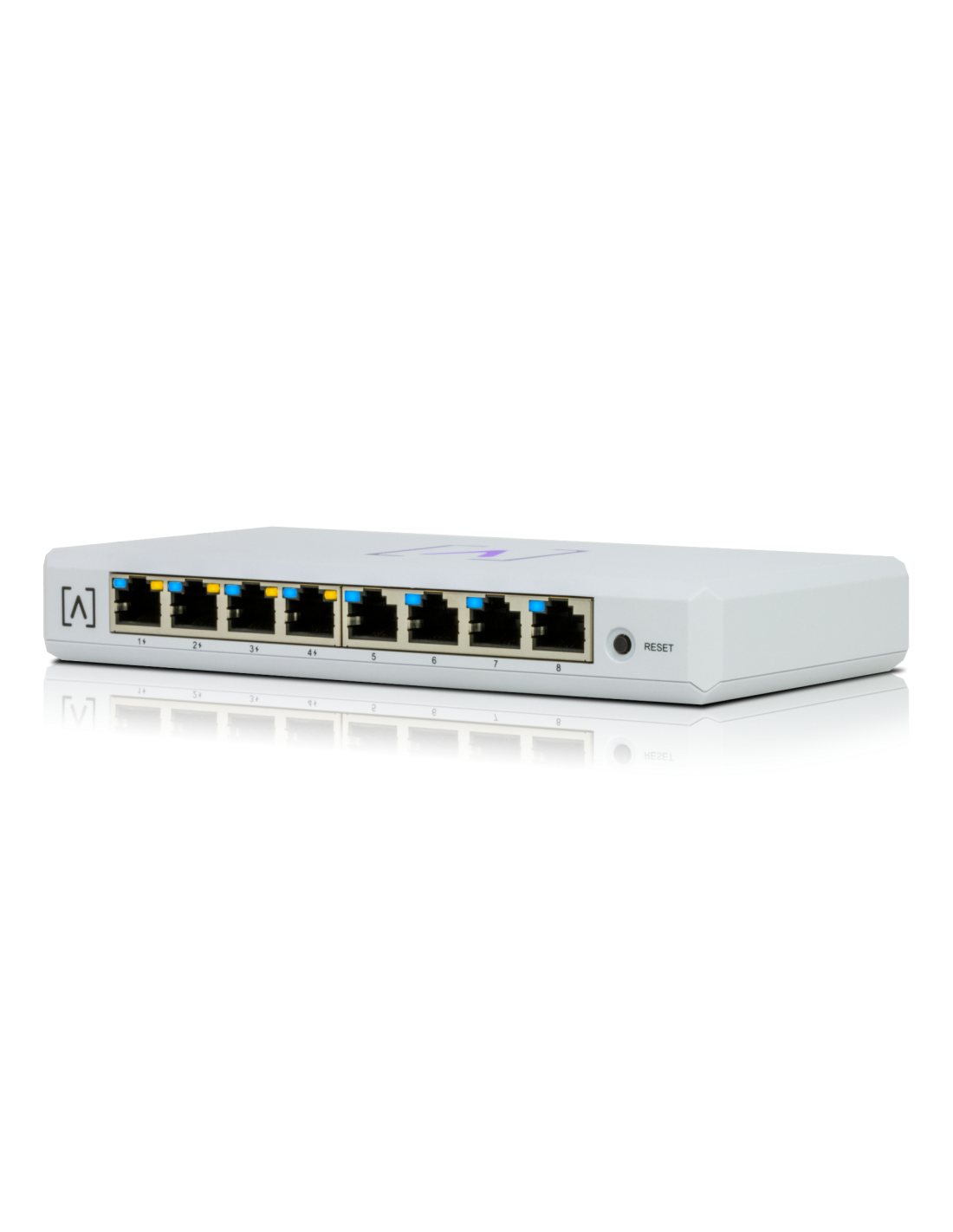

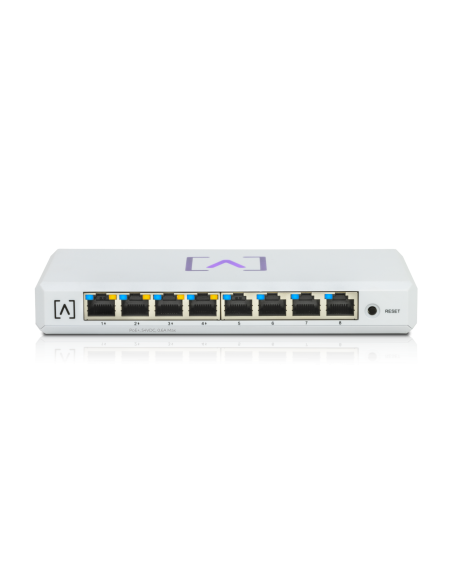

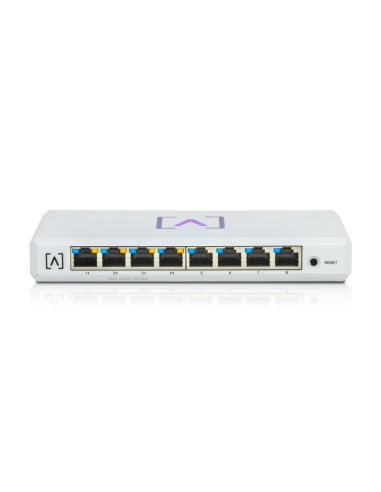

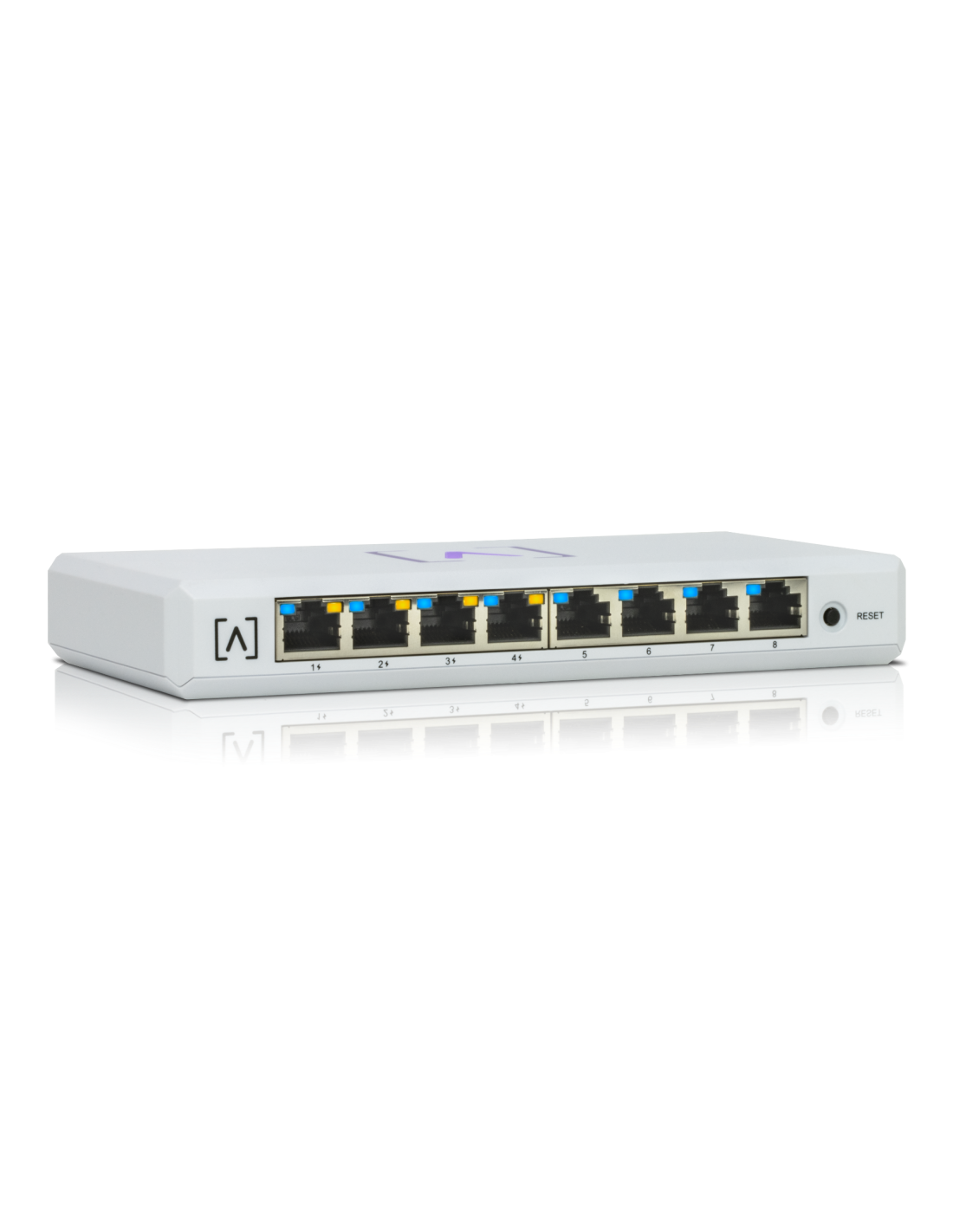

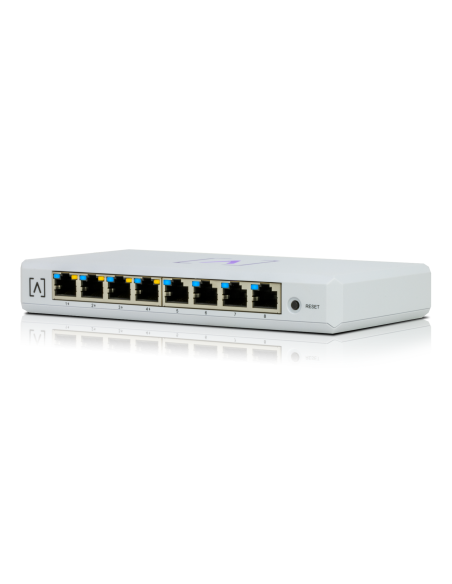

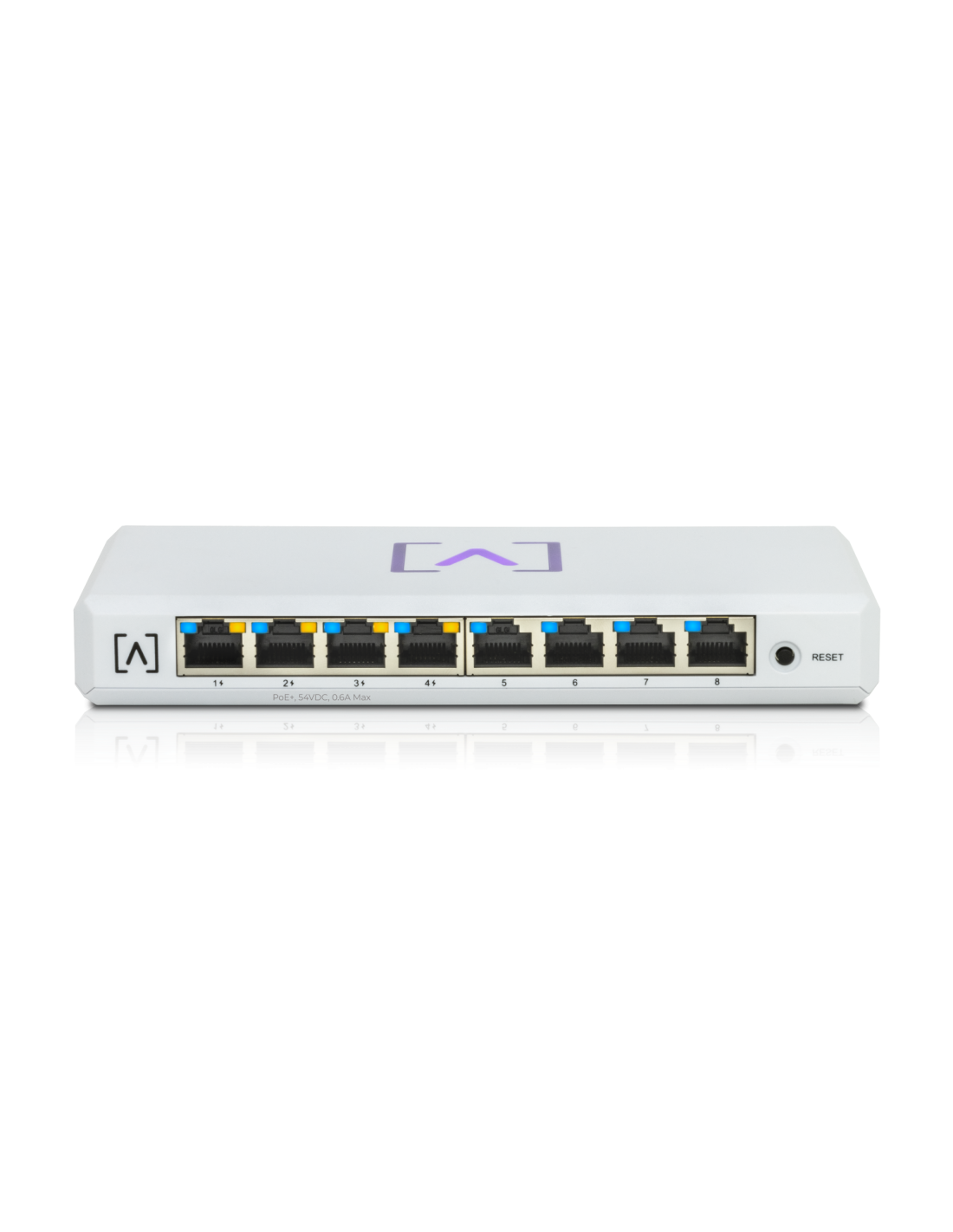

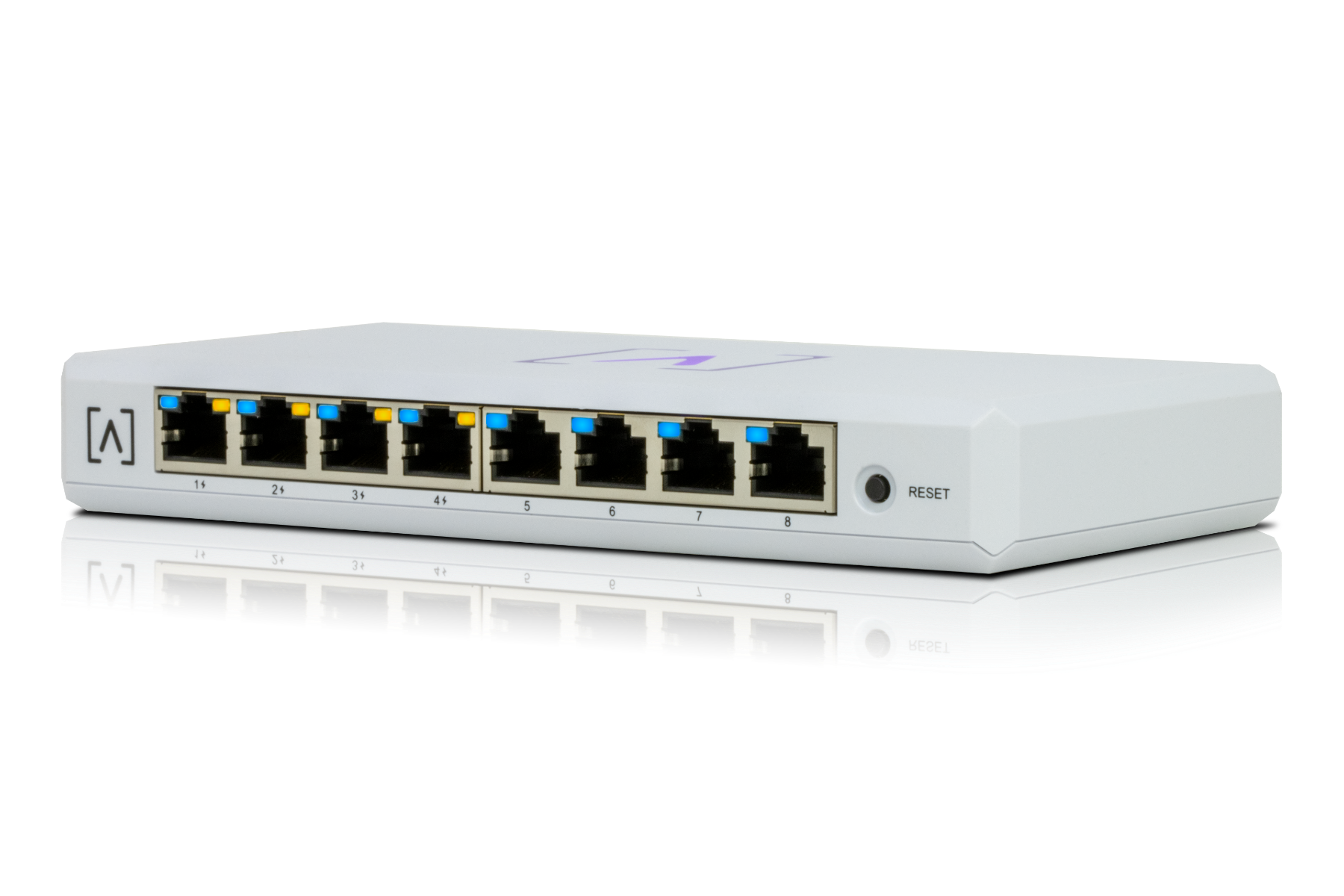

Alta Labs S8-POE 8-Port Cloud Managed Gigabit PoE+ Switch
8-Port Managed Gigabit PoE+ Ethernet Switch
The Alta Labs S8-POE is a compact 8-port cloud-managed Gigabit PoE+ switch designed for small business, office, and professional network deployments. Featuring four IEEE 802.3at PoE+ ports with a 60W total PoE budget, cloud-based management, Bluetooth-assisted setup, and silent fanless operation, it delivers reliable Gigabit connectivity and power for wireless access points, IP cameras, VoIP phones, and other PoE-enabled devices. Its intuitive management platform, flexible desktop or wall-mount design, and enterprise-grade Layer 2 features make deployment, management, and network expansion simple, efficient, and scalable.
Key Features
- ✓8 Gigabit RJ45 Ports with 4 IEEE 802.3at PoE+ Ports
- ✓60W Total PoE Budget with Up to 30W per PoE+ Port
- ✓Cloud-Based Management via the Alta Labs Platform
- ✓Bluetooth-Assisted Setup for Fast and Easy Deployment
- ✓Advanced Layer 2 Features Including VLANs, IGMP Snooping, QoS, and Loop Detection
- ✓Silent Fanless Design for Desktop or Wall-Mount Installation
Alta Labs S8-POE 8-Port Cloud Managed Gigabit PoE+ Switch
The Alta Labs S8-POE combines enterprise-grade Layer 2 switching with an intuitive cloud management platform, making it easy to deploy, monitor, and maintain professional networks from virtually anywhere. Administrators can configure and manage switches, access points, and multiple network sites through a centralized web interface or mobile application, while Bluetooth-assisted provisioning simplifies initial deployment and device onboarding without complex configuration procedures.
Built for modern business networks, the S8-POE includes advanced networking capabilities such as VLAN segmentation, Quality of Service (QoS), IGMP Snooping, 802.1X authentication, ingress and egress rate limiting, and network loop detection to improve traffic management, security, and overall network performance. Automatic firmware updates, customizable dashboards, device monitoring, and centralized multi-site management help reduce administrative overhead while ensuring networks remain secure and up to date.
Its compact fanless enclosure enables silent operation in offices, classrooms, retail environments, and other noise-sensitive locations, while flexible desktop and wall-mount installation options simplify deployment in a wide range of networking scenarios. Designed to support wireless access points, IP cameras, VoIP phones, and other PoE-enabled devices, the Alta Labs S8-POE provides a scalable and easy-to-manage switching solution for growing professional networks.
Technical Specifications
| Specification | Value |
|---|---|
| Mechanical | |
| Dimensions (W × D × H) | 25.7 × 91 × 180 mm (1 × 3.6 × 7.1 in) |
| Weight | 0.38 kg (0.83 lb) |
| Enclosure Material | Injection Molded Plastic |
| Finish | Matte |
| Color | White |
| Network & Ports | |
| Interface Ports | 8 × 10/100/1000 Mbps Gigabit RJ45 Ports |
| SFP / SFP+ | None |
| Switching Capacity | 16 Gbps |
| Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 11.9 Mpps |
| PoE Budget | 60 W Total |
| PoE Output | Up to 30 W per PoE+ Port |
| PoE Ports | 4 × IEEE 802.3at PoE+ |
| Non-PoE Ports | 4 |
| Hardware | |
| Packet Buffer | 4.1 Mbit |
| MAC Address Table | 8K Entries |
| Energy Efficient Ethernet | Yes |
| Management | Factory Reset Button |
| Bluetooth | BLE (2.4 GHz) |
| Bluetooth Output Power | 5 dBm EIRP |
| Bluetooth Antenna Gain | 3 dBi |
| LED Indicators | Power over Ethernet: Orange Network: Orange (10/100 Mbps), Blue (1000 Mbps) |
| Power | |
| Idle Power Consumption | 3.4 W |
| Maximum Power Consumption (Without PoE) | 8 W |
| Maximum Power Consumption (Full PoE) | 68 W |
| PoE Output | 54V DC, 0.6A Max. (PoE+) |

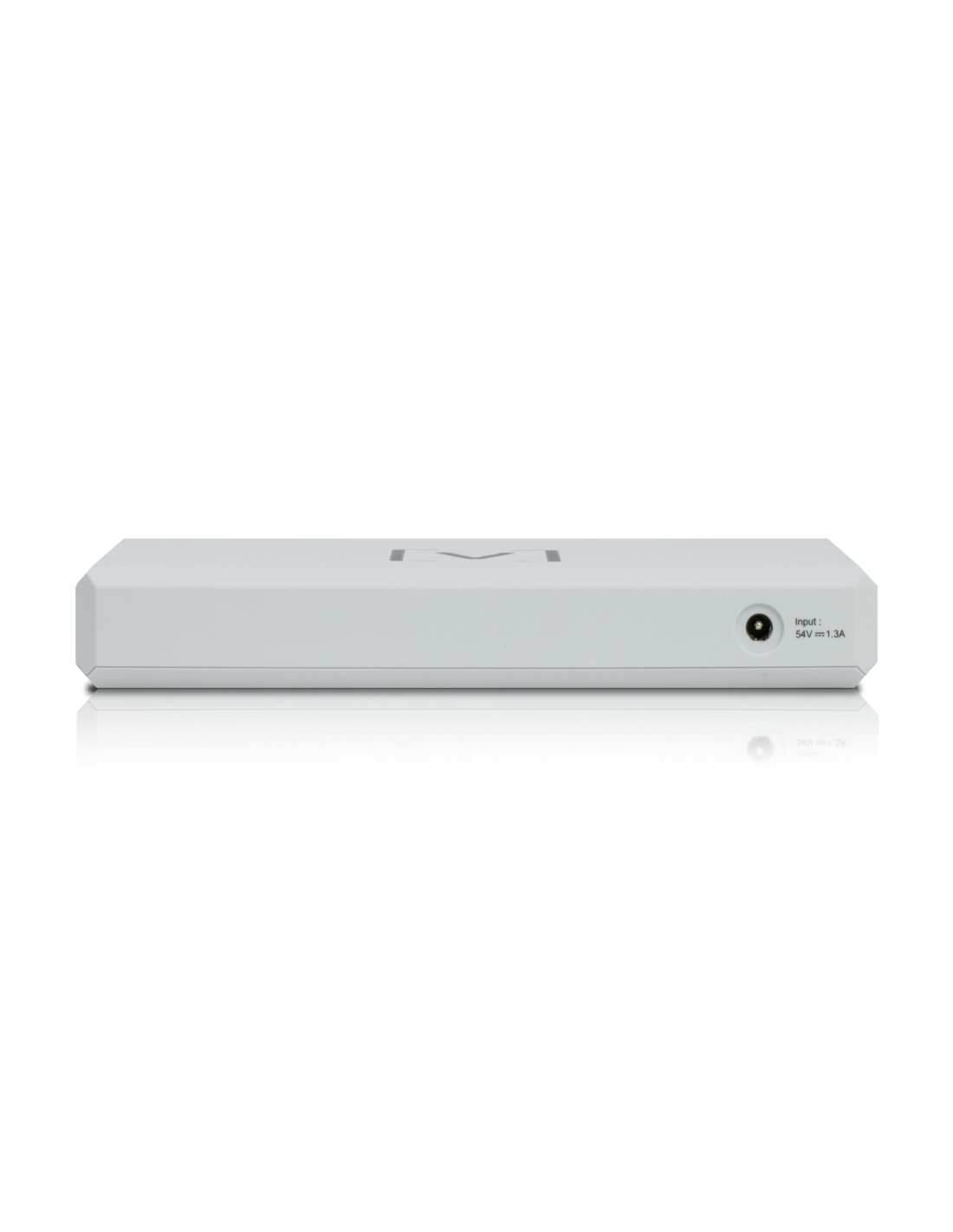

| Power Supply | Universal External Power Supply, 100–240V AC, 50/60 Hz |
| RJ45 Surge Protection | 12 kV ESD (Contact), 25 kV ESD (Air) |
| Environmental | |
| Mounting | Desktop or Locking Wall-Mount |
| Operating Temperature | -5°C to 50°C (23°F to 122°F) |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| IP Rating | None |
| EMI Rating | EMI Class B (3 dB Margin) |
| Cooling | Fanless |
| Certifications | CE, FCC, IC |
