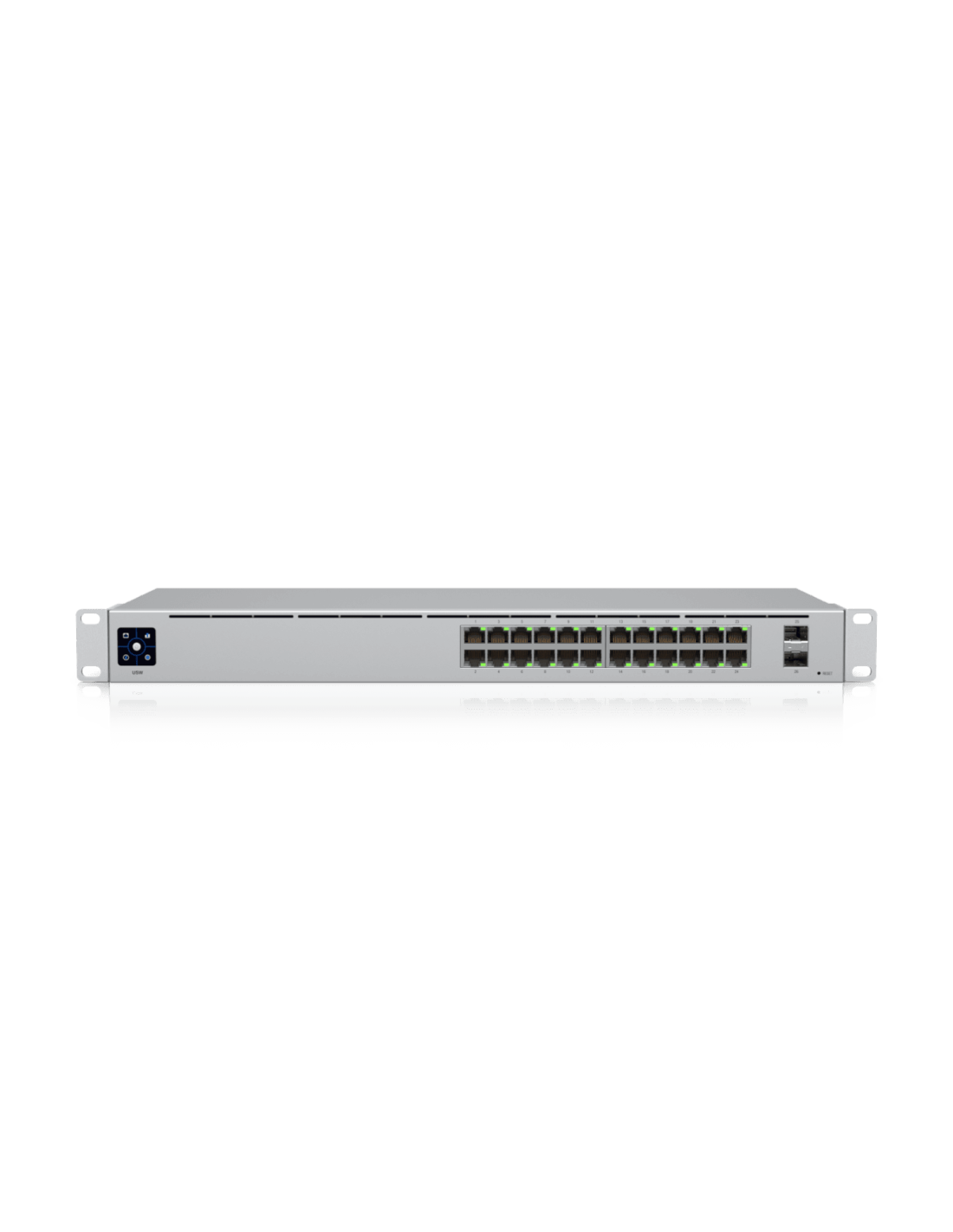

A 24-port, Layer 2 switch with a silent, fanless cooling system.
Features:
Related Products & Accessories

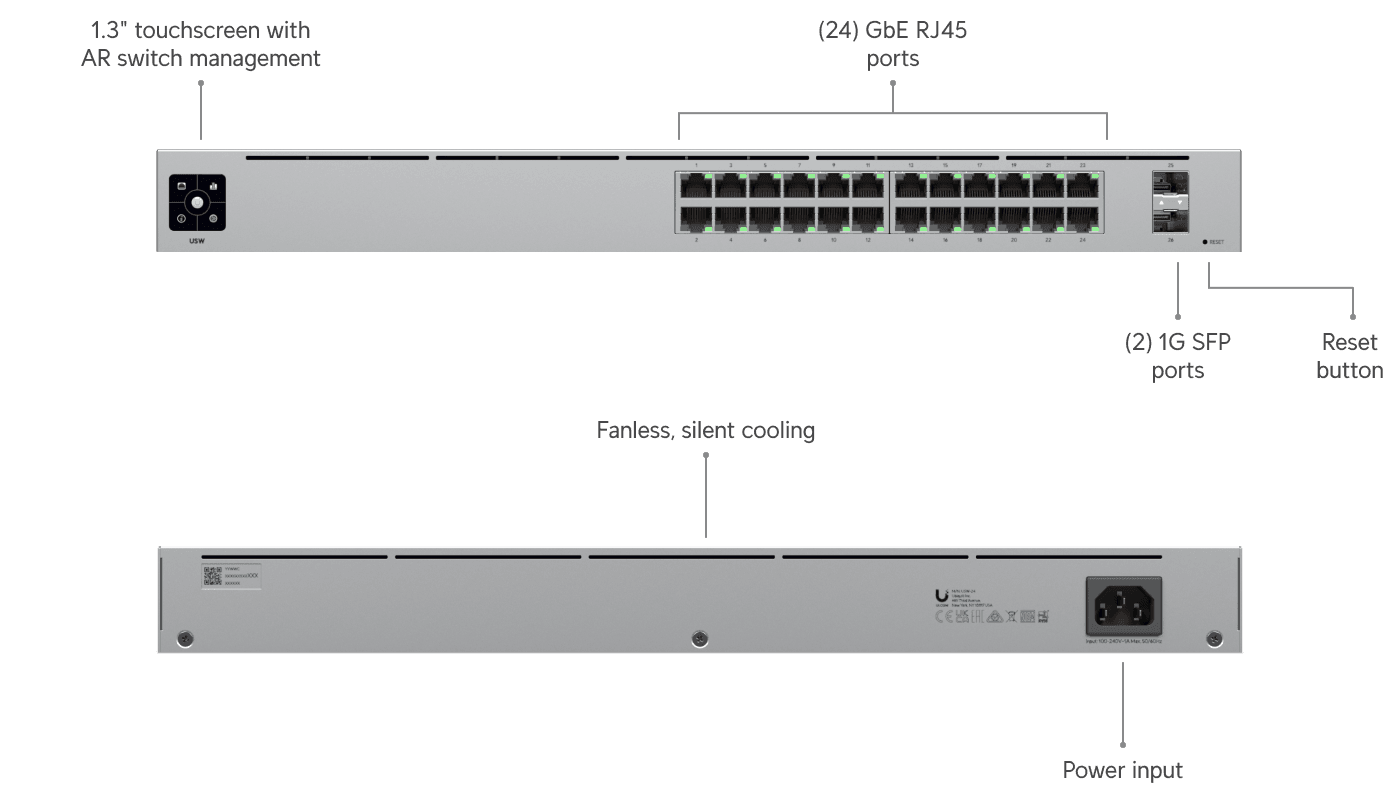

USW-24 is a managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) SFP ports. Its compact 7.9" depth and fanless design allow it to be placed in any work space , and the 1.3" touchscreen provides current switch states and the necessary information you need for quick diagnosis.
| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Port Layout - 1 GbE RJ45 | 24 (1G/100M/10M) |
| Port Layout - 1G SFP | 2 |
| Form Factor | Rack mount (1U) |
| Switching Capacity | 52 Gbps |
| Total Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 39 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| Advanced IGMP Configuration | Yes (Querier, Fast Leave, Router Port) |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Max. Power Consumption | 25W |
| Power Method | Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 36W |
| Supported Voltage Range | 100—240V AC |
| Management Ethernet | AR |
| Heat Dissipation (Excluding PoE Output) | 85.3 BTU/hr |
| Weight (Without Mounting Brackets) | 2.7 kg (6 lb) |
| Weight (With Mounting Brackets) | 2.8 kg (6.2 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 45°C (23 to 113°F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
