MT-485028/N

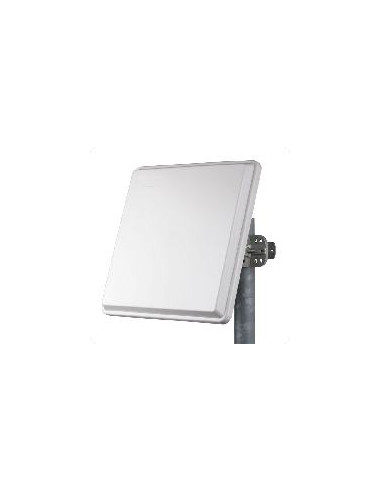

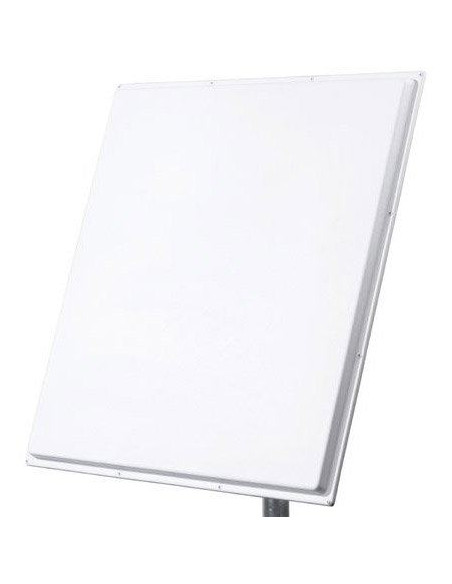

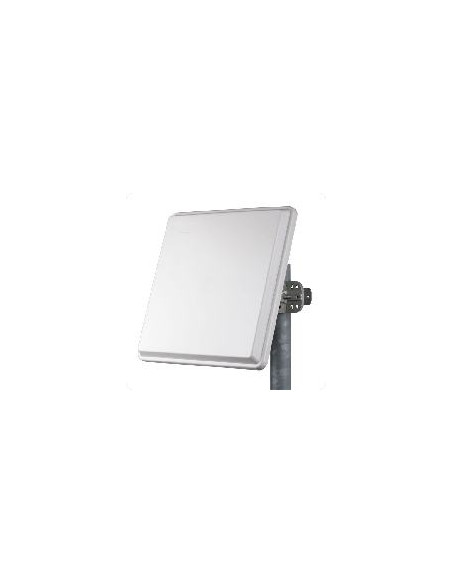

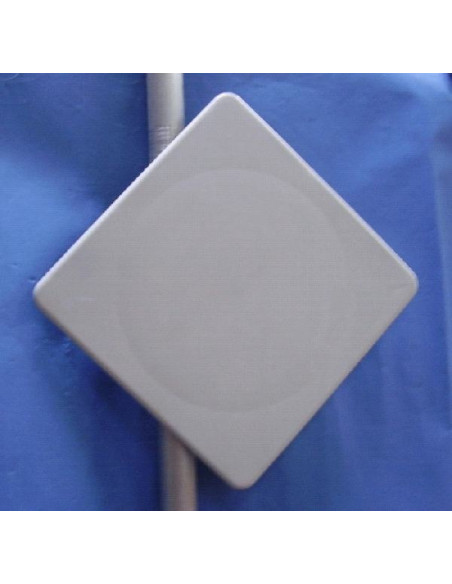

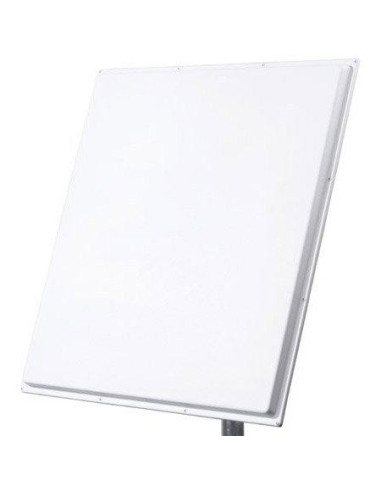

MT-485028/N - MT-485028/N 5GHz 22dBi Panel
| Model | MT-485028/N |
| Frequency Range | 5.15 - 5.875 MHz |
| Gain | 21.5 dbi @ 5.15-5.25 GHz / 22 dbi @ 5.25-5.875 GHz (min) |
| VSWR | < 1.9:1 @ 5.15-5.25 GHz < 1.7:1 @ 5.25-5.875 GHz |
| Beamwidth (Azimuth / Elevation) | 9° / 9° |
| Polarization | Linear (Vertical or Horizontal) |
| Impedance | 50 ohms |
| Input Power (Max) | 6 Watt |
| Mounting Hardware (Not included) | Use MT-120018 |
| Size | 305 x 305 x 15 mm |
| Antenna Weight | 1.2 kg |
| Connector | N-Female |
| Radome | Plastic |
| Base Plate | Aluminum with chemical conversion coating |
- Antenna Gain (dBi)
- 22
- Antenna
- Panel
- Wireless System
- 5GHz
4712331719820
MT-485028/N
