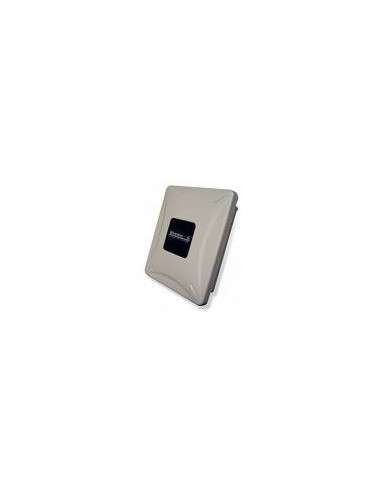

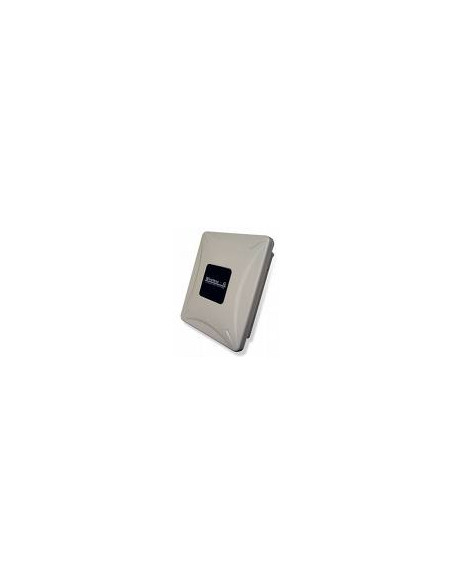

42 dBm (400mW) 802.11b/g Wireless Outdoor Multi-Client Bridge/AP/WDS with integrated 16 dBi panel

Pushing outdoor range and functionality to its limits, EnGenius offers the latest in outdoor multipurpose access point/bridge devices, the EOC-3220+. The EOC-3220 series brings you superior range with its 400mW high wireless output power, and the flexibility you need for adaptable deployments such as industrial grade outdoor enclosure, antenna options, and 802.3af Power-over-Ethernet (PoE) certification. Security features such as 802.1x, WEP, and WPA provide peace of mind. Experience the best in outdoor wireless connectivity today with the EOC-3220+.

Designed to be a flexible last mile wireless solution, the EOC-3220+ features an IP67 rated enclosure, Power-over-Ethernet, built-in lightning arrestor, and hardware for pole or wall mounting locations. It can connect to any access point or ad-hoc client.

Features:

• Integrated 16dBi flat-panel antenna perfect for directional deployments
• Fully functional WDS 'Wireless Distribution System" allows for Bridge, Access Point, and Repeater functionality all in one package
• 400mW high RF output power increasing throughput speeds, range, and signal strength
• IP67 certified enclosure and built-in lightning arrester makes the device virtually immune to the most harsh outdoor conditions
• Included Power Over Ethernet injector and mounting bracket for flexible deployment options
• Supports point-to-point, point-to-multipoint bridge, AP, Client Bridge, WDS
• Plug and Play - no driver needed

Specification:

• Upto 54 Mbps IEEE 802.11b/g compliant
• 48V/.7A PoE (Power over Ethernet), IEEE 802.3af compliant
• RF Transmit power (Typical): 24 dBm +/- 1 dB @ 1, 1, 5.5, and 11 Mpbs*
• Receive Sensitivity (Typical); -72 dBm @ 54 Mbps
• 16 dBi directional antenna built-in
• Interface: One 10/100Mbps RJ-45 LAN Port
• Security:
  • MAC address filtering in AP mode
  • WPA/Pre Share Key (PSK)/TKIP
  • IEEE 802.1x authenticator/RADIUS client (EAP-MD5/TLS/TTLS) support in AP mode
  • Hide SSID in beacons
  • Layer 2 Isolation
  • WLAN tunnelling support
• IP Auto-configuration: DHCP Client/Server
• SNMP v1/v2 support for easy remote management
• Surge arrestor built-in to 20KA
• Management Configuration: Web-based (HTTP)
• Firmware Upgrade: Web-based, Serial Interface (RS-232), TFTP
• Dimensions: 163.8 mm x 135.2 mm x 47 mm (LxWxH)
• Weight: 2.6 lbs (1.2 kg)
• Operating Temp: -20C to 70C / -4F to 158F
• EnGenius Part Numbers: EOC-3220+, NOC-3220+, SOC-3220+

Package Includes:

• 1x EOC-3220+ Outdoor Radio with integrated antenna
• 1x Waterproof kit
• 1x 1 Power over Ethernet injector
• 1x AC/DC power adapater
• 1x POE injector
• 1x mounting brackets for pole and wall mount
• 1x grounding cable

Additional information:

• Chipset: RTL8186 SoC
• LinuxMIPS available for this platform
• RS-232 Serial Port available
• Default IP address for client bridge mode is 192.168.1.1
• IP for the AP mode is 192.168.1.2
• Default user/pw is admin/admin
