FGSW-2402VS PLANET Managed Ethernet Switch
FGSW-2402VS
Last items in stock
$265.85
Tax included

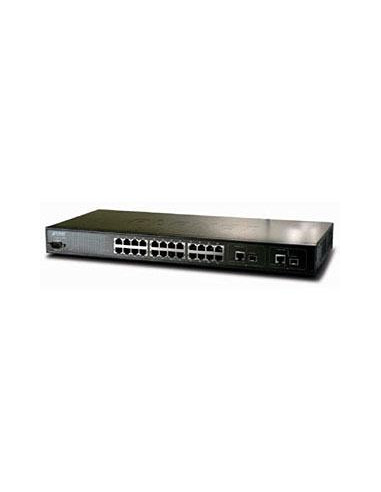

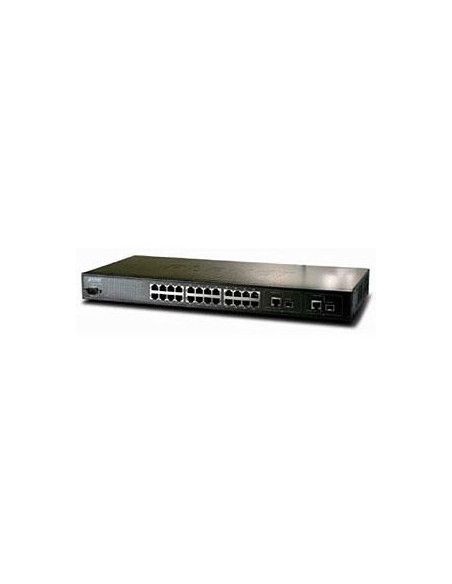

24-Port 10/100Mbps + 2 Open Slot Web Smart Ethernet Switch
For catering to the need of remote management and advanced function enhance, PLANET releases two new version Web Smart Switches, the FGSW-2402VS and FGSW-2620VSF.
The new PLANET FGSW-2402VS offers 24 10/100Mbps Fast Ethernet ports with 2 open slots (port25, 26). The two open slots can be installed by optionally two of 1000Base-T port, 100Base-FX, or 1000Base- SX/LX fiber-optic interfaces. The distance can be extended from 100 meters (TP), 2 kilometers (Multi-mode, ST or SC), up to 15 kilometers (Single-mode, SC).
The new PLANET FGSW-2402VS offers 24 10/100Mbps Fast Ethernet ports with 2 open slots (port25, 26). The two open slots can be installed by optionally two of 1000Base-T port, 100Base-FX, or 1000Base- SX/LX fiber-optic interfaces. The distance can be extended from 100 meters (TP), 2 kilometers (Multi-mode, ST or SC), up to 15 kilometers (Single-mode, SC).
24-Port 10/100Mbps + 2 Open Slot Web Smart Ethernet Switch
For catering to the need of remote management and advanced function enhance, PLANET releases two new version Web Smart Switches, the FGSW-2402VS and FGSW-2620VSF.
The new PLANET FGSW-2402VS offers 24 10/100Mbps Fast Ethernet ports with 2 open slots (port25, 26). The two open slots can be installed by optionally two of 1000Base-T port, 100Base-FX, or 1000Base- SX/LX fiber-optic interfaces. The distance can be extended from 100 meters (TP), 2 kilometers (Multi-mode, ST or SC), up to 15 kilometers (Single-mode, SC).
It is equipped with non-blocking 8.8Gbps backplane greatly simplifies the tasks of upgrading your LAN to cater for increased bandwidth demands.
For efficient management, the FGSW-2402VS Web Smart Switch is equipped with web interface. The Web Smart Switch can be programmed for basic switch management functions such as port speed configuration, Port Trunking, Port-based VLAN, Port Mirroring, QoS, bandwidth control, Access Control list and Misc Configuration.
The FGSW-2402VS provide port-based VLAN and 802.1Q VLAN(including overlapping). The VLAN groups allowed on the 2 switches will be maximally up to 26 for port-based VLAN. Via supporting port trunking, the FGSW-2402VS allow the operation of a high-speed trunk combining multiple ports. The FGSW-2402VS provide seven groups of up to 8-ports for trunking, and it supports fail-over as well.
With its Auto-Negotiation capability, all the RJ-45/STP ports of FGSW-2402VS / FGSW-2620VSF can be configured to speeds of 10/20Mbps or 100/200Mbps automatically. In addition, the product is equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types-straight through or crossover.
Key Features:
The new PLANET FGSW-2402VS offers 24 10/100Mbps Fast Ethernet ports with 2 open slots (port25, 26). The two open slots can be installed by optionally two of 1000Base-T port, 100Base-FX, or 1000Base- SX/LX fiber-optic interfaces. The distance can be extended from 100 meters (TP), 2 kilometers (Multi-mode, ST or SC), up to 15 kilometers (Single-mode, SC).
It is equipped with non-blocking 8.8Gbps backplane greatly simplifies the tasks of upgrading your LAN to cater for increased bandwidth demands.
For efficient management, the FGSW-2402VS Web Smart Switch is equipped with web interface. The Web Smart Switch can be programmed for basic switch management functions such as port speed configuration, Port Trunking, Port-based VLAN, Port Mirroring, QoS, bandwidth control, Access Control list and Misc Configuration.
The FGSW-2402VS provide port-based VLAN and 802.1Q VLAN(including overlapping). The VLAN groups allowed on the 2 switches will be maximally up to 26 for port-based VLAN. Via supporting port trunking, the FGSW-2402VS allow the operation of a high-speed trunk combining multiple ports. The FGSW-2402VS provide seven groups of up to 8-ports for trunking, and it supports fail-over as well.
With its Auto-Negotiation capability, all the RJ-45/STP ports of FGSW-2402VS / FGSW-2620VSF can be configured to speeds of 10/20Mbps or 100/200Mbps automatically. In addition, the product is equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types-straight through or crossover.
Key Features:
- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3z and IEEE 802.3ab Gigabit Ethernet standard
- 24-Port 10 / 100 Mbps Fast Ethernet Switch
- 2 open slots for 1000Base-T and 100Base-FX, 1000Base-SX / LX fiber-optic interface with various connection media and distances
- Each Switching ports support auto-negotiation-10 / 20, 100 / 200Mbps supported
- Auto-MDI / MDI-X detection on each RJ-45 port
- Prevents packet loss with back pressure (half-duplex) and 802.3x PAUSE frame flow control (full- duplex)
- High performance Store and Forward architecture, broadcast storm control,r unt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
- 8K MAC address table, automatic source address learning and ageing
- 512K Bytes packet buffers
- Web interface for Switch basic management and setup
- Support Port-Based VLAN and 802.1Q VLAN, up to 26 VLAN groups
- Support up to 7 Trunk groups, each trunk for up to maximum 8 port with 800Mbps bandwidth
- Port mirroring allows monitoring of the traffic across any port in real time
- Support QoS and bandwidth control on each port
- Supports Access Control List function
- 19-inch rack mount size
- Internal full-range power supply suitable for worldwide use
- EMI standards comply with FCC, CE class A
- Device Type
- Network Switch
- Device Features
- Managed
- SFP Ports
- 2 Ports
- SFP
- Yes, 1G SFP
- Ethernet Ports
- 24
