ARC-PD5820B88
*** Out of stock ATM, Available On Backorder ***
$132.06
Tax included

  20dbi dual pol panel 5ghz ARC-PD5820B88

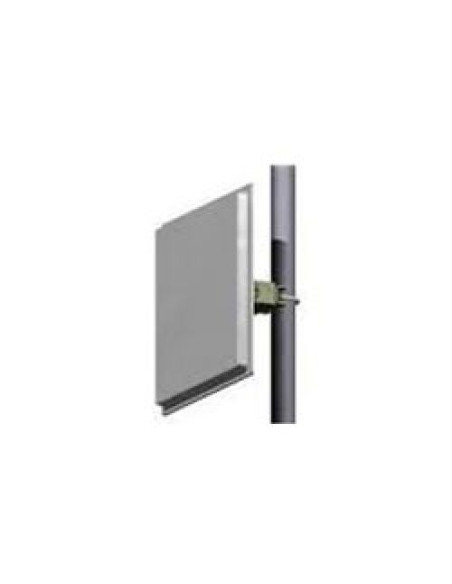

Flat panel 20dbi dual pol with N female connectors and mounting bracket.

5.15-5.875GHz 20dBi Dual Polarization Panel Antenna provides maximum gain in lowest size available. Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications. High Port to Port Isolation for Ideal MIMO Performance Dual Polarization (H & V). Manufactured under strict US quality control procedures

Arc Wireless ARC-ND5820B88 ARC IES Dual Pol Antenna 4.94-5.875 GHz 19.5dBi

  • Maximum gain in lowest size available
  • Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications
  • High Port to Port Isolation for


  20dbi dual pol panel 5ghz ARC-PD5820B88

Flat panel 20dbi dual pol with N female connectors and mounting bracket.

5.15-5.875GHz 20dBi Dual Polarization Panel Antenna provides maximum gain in lowest size available. Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications. High Port to Port Isolation for Ideal MIMO Performance Dual Polarization (H & V). Manufactured under strict US quality control procedures

Arc Wireless ARC-ND5820B88 ARC IES Dual Pol Antenna 4.94-5.875 GHz 19.5dBi

  • Maximum gain in lowest size available
  • Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications
  • High Port to Port Isolation for Ideal MIMO Performance
  • Dual Polarization (H & V)
  • Manufactured under strict US quality control procedures
Features of ARC-PD5820B88:
  • Frequency Range  4.94-5.875 GHz
  • Gain  19.5dBi (typical)
  • Polarization  Dual Linear – Vertical and Horizontal
  • 3dB Beamwidth Vertical/ Horizontal  17 degrees/ 17 degrees
  • VSWR 4.94-4.99GHz 5.15-5.875GHz ≤1.5:1 typ, ≤2.0:1 max ≤1.5:1 typ, ≤1.7:1 max
  • Port to Port Isolation ≤25 dB
  • Front-to-Back Ratio ≤35 dB
  • Cross Polarization ≤30 dBi
  • Power Rating 30 watts
  • Impedance  50 ohms
  • Lightning Protection  DC Ground
  • Connector Type  N female (x2)



Antenna
Panel
4712331719570
ARC-PD5820B88
